Reference Value

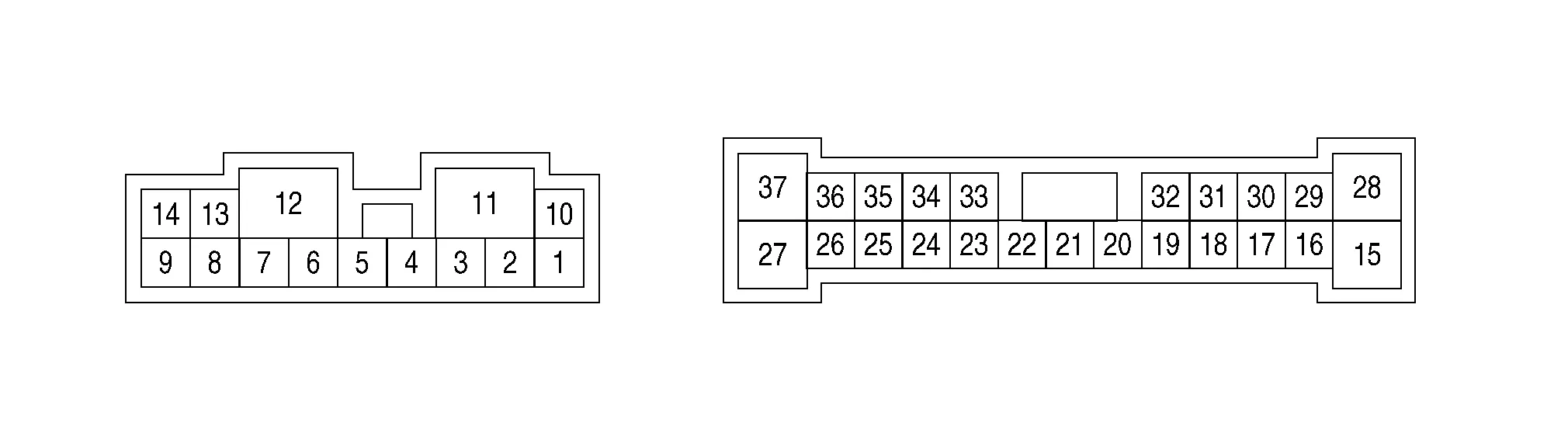

TERMINAL LAYOUT

PHYSICAL VALUES

Terminal (Wire color)		Description		Condition	Reference value (Approx.)
+	–	Signal name	Input/Output	Condition	Reference value (Approx.)
1 (W)	2 (V/G)	Instrument panel tweeter LH	Output	Ignition switch ON Sound output
4 (W)	3 (G)	Instrument panel tweeter RH	Output	Ignition switch ON Sound output
5 (W)	6 (B)	Sound signal subwoofer	Output	Ignition switch ON Sound output
7 (GR)	—	Ground	—	Ignition switch ON	0 V
10 (SB)	7 (GR)	Battery power supply	Input	Ignition switch OFF	Battery voltage
11 (G)	7 (GR)	Battery power supply	Input	Ignition switch OFF	Battery voltage
12 (B)	—	Ground	—	Ignition switch ON	0 V
13 (W)	8 (B)	Sound signal subwoofer	Output	Ignition switch ON Sound output
14 (R)	9 (P)	Sound signal rear door speaker RH	Output	Ignition switch ON Sound output
18 (V/R)	19 (O)	Sound signal front door speaker and tweeter LH	Output	Ignition switch ON Sound output
20 (W)	Ground	Amp. ON signal	Output	Ignition switch ON	Battery voltage
24 (B)	23 (W)	Sound signal rear LH	Input	Ignition switch ON Sound output
26 (G)	25 (R)	Sound signal rear RH	Input	Ignition switch ON Sound output
28 (W/G)	15 (W)	Sound signal rear door speaker LH	Output	Ignition switch ON Sound output
29 (W/V)	30 (W)	Sound signal center speaker	Output	Ignition switch ON Sound output
31 (G)	32 (W)	Sound signal front door speaker and tweeter RH	Output	Ignition switch ON Sound output
33 (B)	34 (W)	Sound signal front RH	Input	Ignition switch ON Sound output
35 (G)	36 (R)	Sound signal front LH	Input	Ignition switch ON Sound output
