Nissan Murano: Chassis and Body Maintenance / Axle and Suspension Parts
Inspection
Check front and rear axle and suspension parts for excessive play, cracks, wear or other damage.

-
Shake each wheel to check for excessive play.
-
Check wheel bearings for smooth operation.
-
Check axle and suspension nuts and bolts for looseness.
-

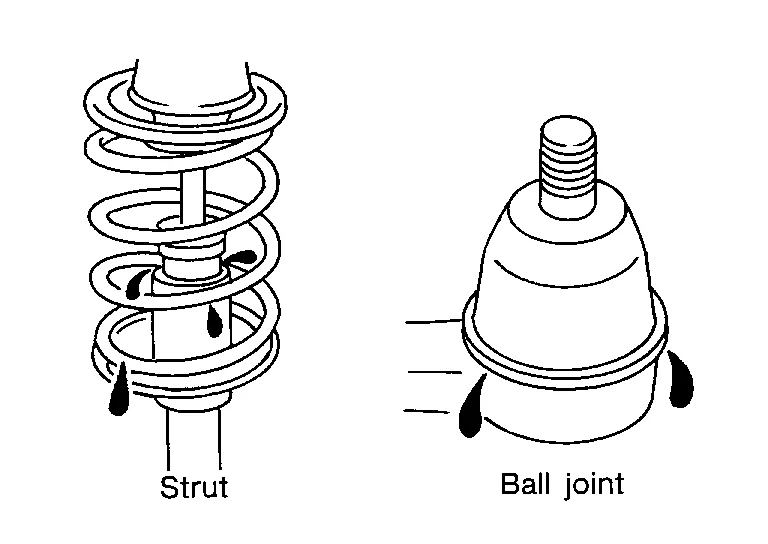

Check strut (shock absorber) for oil leakage or other damage.
-
Check suspension ball joint for grease leakage and ball joint dust cover for cracks or other damage.

Inspection
FLUID LEVELVerify proper power steering fluid level.
Check power steering fluid level with engine stopped and the fluid temp between 0 – 30° C (32 – 86° F)...
Inspection
Check the following items, and replace the parts as necessary.Check drive shaft mounting points and drive shaft joint for looseness and other damage...
Other information:
System Description
SYSTEM DIAGRAMINPUT SIGNAL AND OUTPUT SIGNAL Signal name Input Output Description
Key ID signal
Remote keyless entry receiver
BCM
The BCM receives key ID signal inputs and activates the actuators accordingly.
Outside key antenna (rear bumper) signal
Outside key antenna (rear bumper)
BCM
The BCM receives outside key antenna (rear bumper) signals inputs and activates the actuators accordingly...
DTC Description
DTC DETECTION LOGIC DTC No.
CONSULT screen items
(Trouble diagnosis content) DTC detection condition
C1A01-A2
POWER SUPPLY CIR
(Power supply circuit)
Diagnosis condition
When engine is running
When MAIN switch of ICC system is ON
Signal (terminal)
Battery power supply
Threshold
The battery voltage sent to ADAS control unit remains less than 7...
