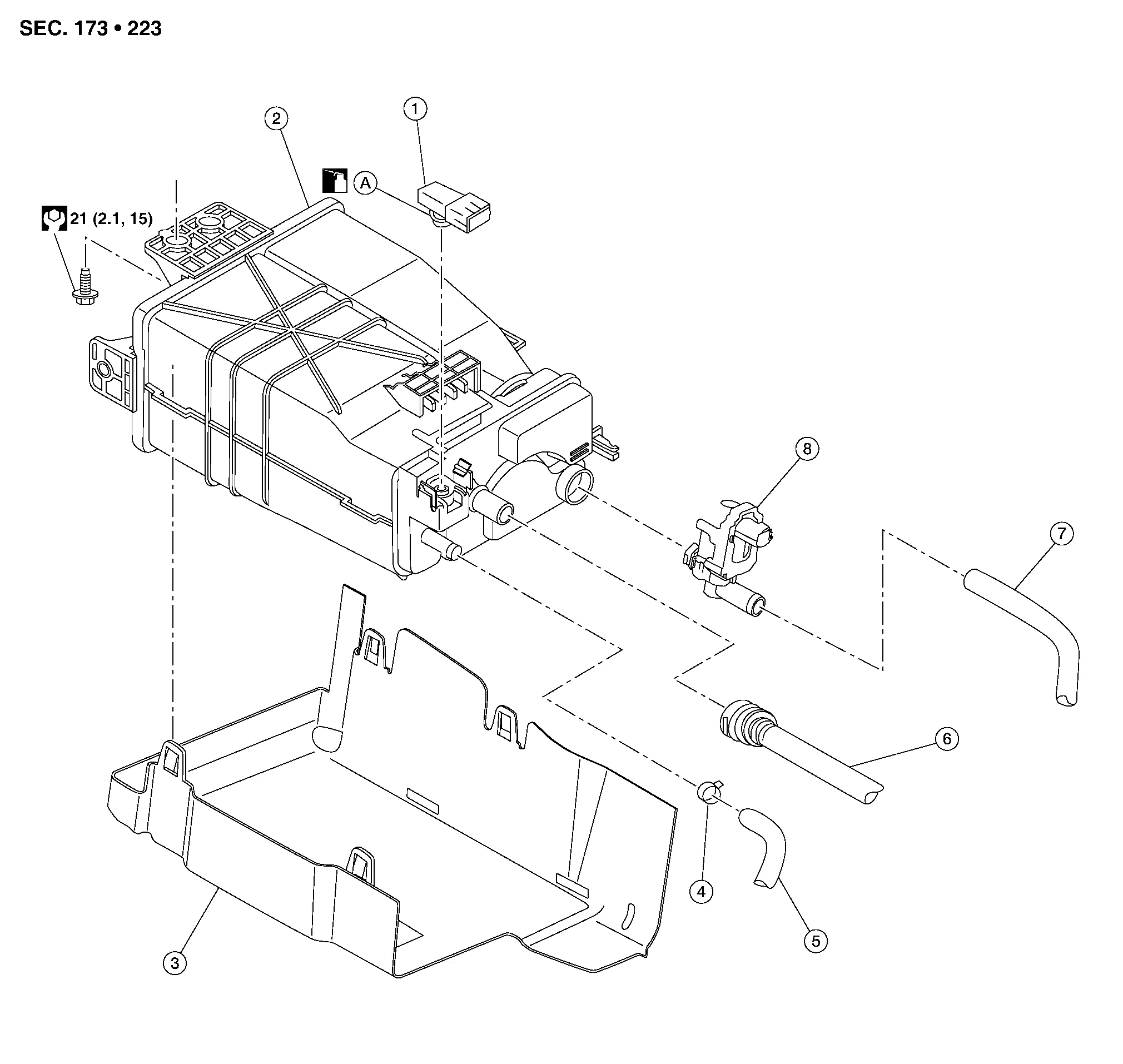

Exploded View

EVAP CANISTER

1.	EVAP canister control pressure sensor	2.	EVAP canister	3.	Shield
4.	Clamp	5.	EVAP canister purge hose	6.	EVAP canister vent line
7.	EVAP canister vent control valve hose	8.	EVAP canister vent control valve	A.	O-ring

Removal and Installation

REMOVAL

Remove shield (if necessary).

Disconnect EVAP canister purge hose, EVAP canister vent line, and EVAP canister vent control valve hose.

Disconnect the harness connectors from EVAP canister control pressure sensor and EVAP canister vent control valve.

Remove EVAP canister bolt.

Remove EVAP canister from the Nissan Murano vehicle.

INSTALLATION

Installation is in the reverse order of removal.

Inspection

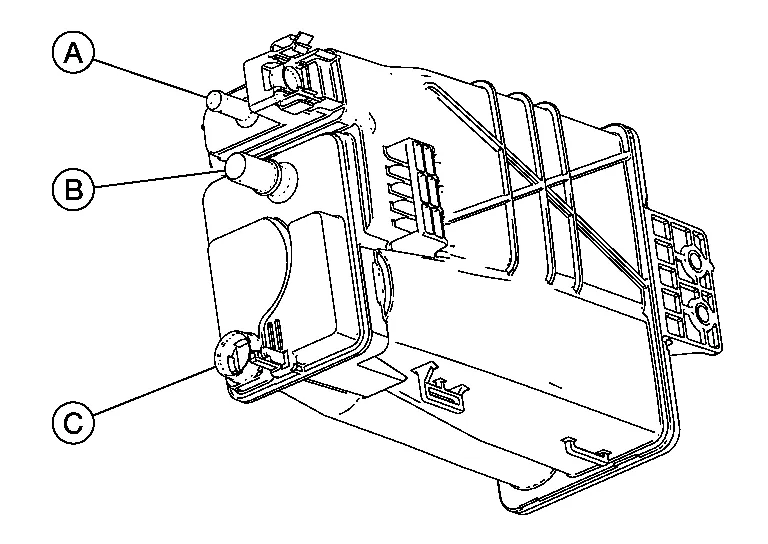

Check EVAP canister as follows:

Block port (A).
Blow air into port (B) and check that it flows freely out of port (C).
Release blocked port (A).
Apply vacuum pressure to port (A) and check that vacuum pressure exists at the ports (B) and (C).
Block port (B) and (A).
Apply vacuum pressure to port (C) and check that there is no leakage.
