Removal and Installation - (LH)

REMOVAL

Remove the center console side finisher (LH). Refer to Exploded View.

Remove the instrument lower panel LH. Refer to Removal and Installation.

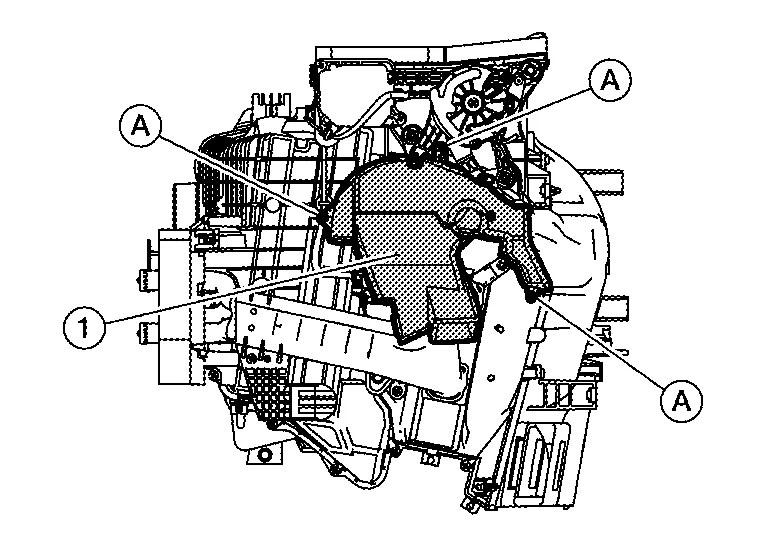

Remove the screws (A) and the front foot duct (LH) (1).

Remove the air mix door motor (LH) screws.

Disconnect the harness connector from the air mix door motor (LH) and remove.

INSTALLATION

Installation is in the reverse order of removal.

Removal and Installation - (RH)

REMOVAL

Remove the center console side finisher (RH). Refer to Exploded View.

Remove the glove box assembly. Refer to Removal and Installation.

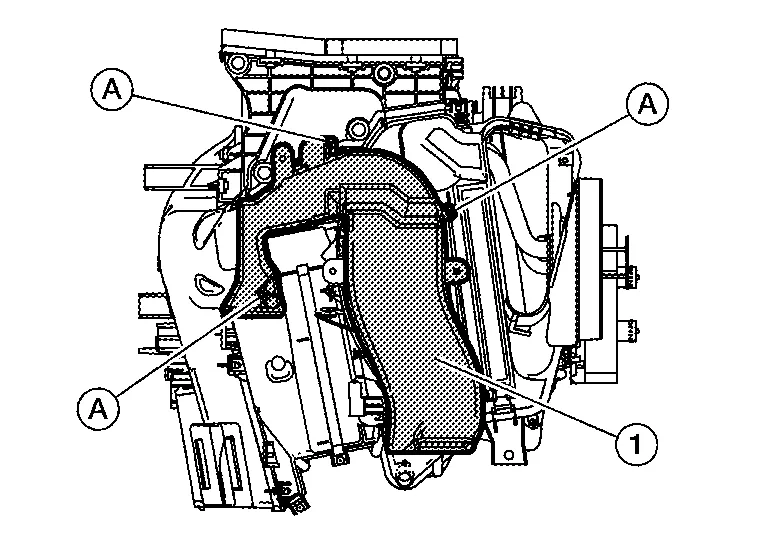

Remove the screws (A) and front foot duct (RH) (1).

Remove the air mix door motor (RH) screws.

Disconnect the harness connector from the air mix door motor (RH) and remove.

INSTALLATION

Installation is in the reverse order of removal.

    Mode Door Motor

    Removal and Installation REMOVALRemove the center console side finisher (LH). Refer to Exploded View. Remove the instrument lower panel LH. Refer to Removal and Installation...

    Intake Door Motor

    Removal and Installation REMOVALRemove the glove box assembly. Refer to Removal and Installation. Remove the intake door motor screws. Disconnect the harness connector from the intake door motor and remove...
