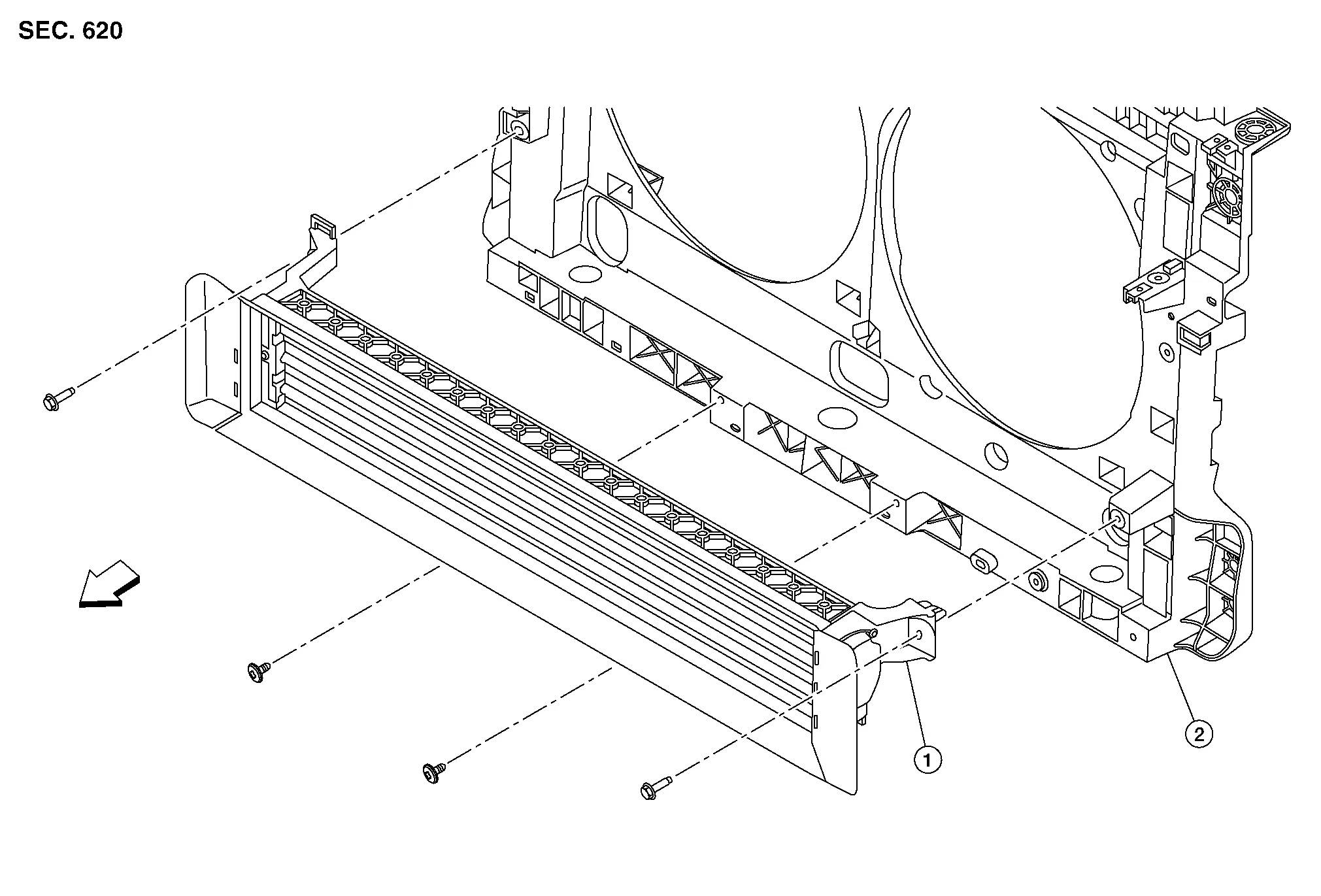

Exploded View

Active grille shutter

Radiator core support

Front

Removal and Installation

REMOVAL

Remove front bumper fascia. Refer to Removal and Installation.

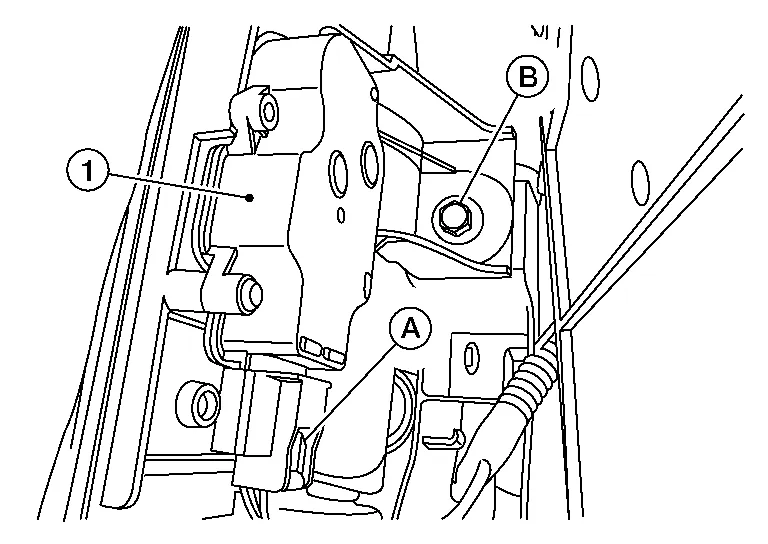

Disconnect the harness connector (A) from the active grille shutter actuator (1).

Remove the active grille shutter bolt [(B) (LH/RH)].

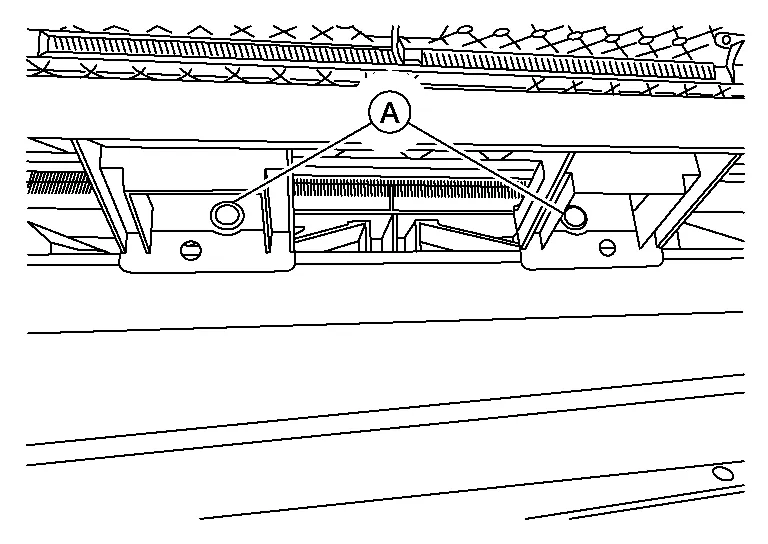

Remove the active grille shutter clips (A).

CAUTION:

Do not damage active grille shutter clips.

Replace any active grille shutter clips that are broken or damaged.

INSTALLATION

Installation is in the reverse order of removal.
