Nissan Murano: Basic Inspection / Unit Characteristics Writing

Nissan Murano (Z52) 2015-2024 Service Manual / Transmission & Driveline / Driveline :: Transfer: Ty21c / Basic Inspection / Unit Characteristics Writing

Description

When replacing AWD control unit, rear final drive assembly and/or electric controlled coupling, unit characteristics of electric controlled coupling writing is required. Refer to Work Procedure.

Work Procedure

UNIT CHARACTERISTICS WRITING

CONSULT

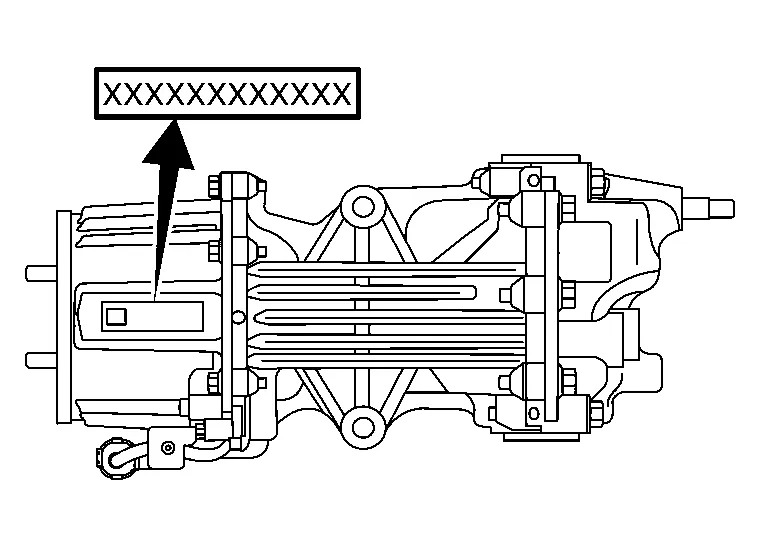

Confirm the unit characteristics of electric controlled coupling.

NOTE:
Unit characteristics is 12-digit alphanumeric.
Ignition switch ON.
Select “UNIT CHARACTERISTICS WRITE” in “Work support” mode of “ALL MODE AWD/4WD”.
Input unit characteristics.
Select “Start”.
Check that “UNIT CHARACTERISTICS WRITE COMPLETED” is displayed.

Work End.
