Nissan Murano: LATCH (Lower Anchors and Tethers for CHildren) system / Top tether anchor
WARNING
Do not allow cargo to contact the top tether strap when it is attached to the top tether anchor. Properly secure the cargo so it does not contact the top tether strap.Cargothat is not properly secured or cargothat contacts the top tether strap may damage it during a collision. A child could be seriously injured or killed in a collision if the top tether strap is damaged.
Child restraint anchorages are designed to withstand only those loads imposed by correctly fitted child restraints. Under no circumstances are they to be used to attach adult seat belts, or other items or equipment to the vehicle. Doing so could damage the child restraint anchorages. The child restraint will not be properly installed using the damaged anchorages, and a child could be seriously injured or killed in a collision.

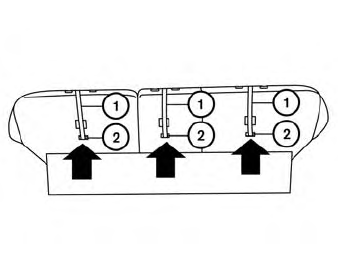

Rear bench seat
Top tether strap
Anchor point
Top tether anchor point locations
Anchor points are located in the following locations:
- Rear bench seat on the back side of the seatback in the seating positions shown.
If you have any questions when installing a top tether strap, it is recommended that you visit a NISSAN dealer for this service.
Installing child restraint LATCH lower anchor attachments
LATCH webbing-mounted attachment
LATCH compatible child restraints include
two rigid or webbing-mounted attachments
that can be connected to two anchors
located at certain seating positions
in your vehicle...
Rear-facing child restraint installation using LATCH
For additional information, refer to allWarnings
and Cautions in the “Child safety” and
“Child restraints” sections of this manual
before installing a child restraint...
