Nissan Murano: Blind Spot Warning (BSW) (if so equipped) / System temporarily unavailable

Nissan Murano (Z52) 2015-2024 Owners Manual / Starting and driving / Blind Spot Warning (BSW) (if so equipped) / System temporarily unavailable

Nissan Murano. System temporarily unavailable

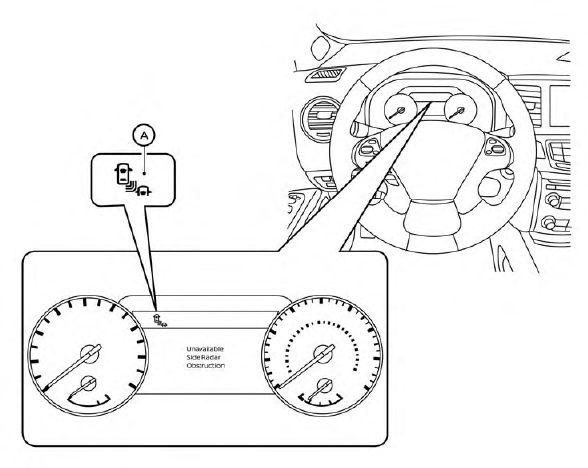

When radar blockage is detected, the system will be deactivated automatically. The “Unavailable: Side Radar Obstruction” warning message will appear and the BSW/RCTA indicator (white) will blink Nissan Murano. System temporarily unavailable in the vehicle information display.

The system is not available until the conditions no longer exist.

The radar sensors may be blocked by temporary ambient conditions such as splashing water, mist or fog. The blocked conditionmayalso be caused by objects such as ice, frost or dirt obstructing the radar sensors.

NOTE:

If the BSW system stops working, the RCTA system (if so equipped) will also stop working.

Action to take:

When the above conditions no longer exist, the system will resume automatically.

Malfunction

If the BSW system malfunctions, it will turn off automatically. The BSW/RCTA indicator (orange) will appear in the vehicle information display.

NOTE:

If the BSW system stops working, the RCTA system (if so equipped) will also stop working.

Action to take:

Stop the vehicle in a safe location, place the vehicle in the P (Park) position, turn the engine off and restart the engine. If the message continues to appear, have the system checked. It is recommendedthat you visit a NISSAN dealer for this service.

    BSW driving situations

    Illustration 1 – Approaching from behind Indicator on Indicator off Indicator flashing Another vehicle approaching from behind Illustration 1: The side BSW/RCTA indicator light illuminates if a vehicle enters the detection zone from behind in an adjacent lane...

    System maintenance

    The two radar sensors for the BSW and RCTA systems are located near the rear bumper. Always keep the area near the radar sensors clean. The radar sensors may be blocked by temporary ambient conditions such as splashing water, mist or fog...
