Nissan Murano: Blind Spot Warning (BSW) (if so equipped) / BSW driving situations

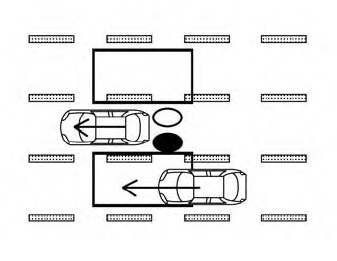

Illustration 1 – Approaching from behind
Indicator on
Indicator off
Indicator flashing
Another vehicle approaching from behind
Illustration 1: The side BSW/RCTA indicator
light illuminates if a vehicle enters the detection
zone from behind in an adjacent
lane.

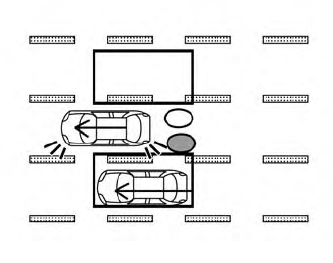

Illustration 2 – Approaching from behind
Illustration 2: If the driver activates the
turn signal when another vehicle is in the
detection zone, then the system chimes
(twice) and the side indicator light flashes.
NOTE:
The radar sensors may not detect vehicles
which are approaching rapidly
from behind.
If the driver activates the turn signal
before a vehicle enters the detection
zone, the side indicator light will flash
but no chime will sound when the
other vehicle is detected.
Overtaking another vehicle

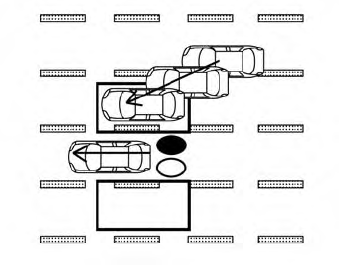

Illustration 3 – Overtaking another vehicle
Illustration 3: The side indicator light illuminates
if you overtake a vehicle and that
vehicle stays in the detection zone for approximately
2 seconds.

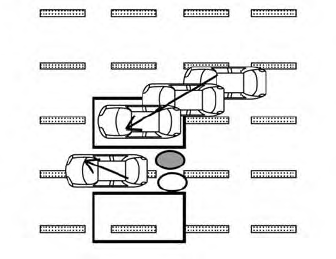

Illustration 4 – Overtaking another vehicle
Illustration 4: If the driver activates the
turn signal while another vehicle is in the
detection zone, then the system chimes
(twice) and the side indicator light flashes.
NOTE:
- When overtaking several vehicles in a
row, the vehicles after the first vehicle
may not be detected if they are traveling
close together.
- The radar sensors may not detect
slower moving vehicles if they are
passed quickly.
- If the driver activates the turn signal
before a vehicle enters the detection
zone, the side indicator light will flash
but no chime will sound when the
other vehicle is detected.
Entering from the side

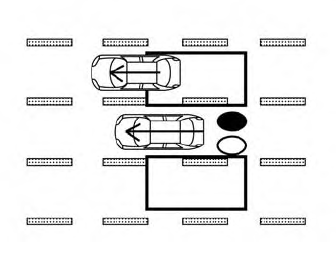

Illustration 5 – Entering from the side
Illustration 5: The side indicator light illuminates
if a vehicle enters the detection
zone from either side.

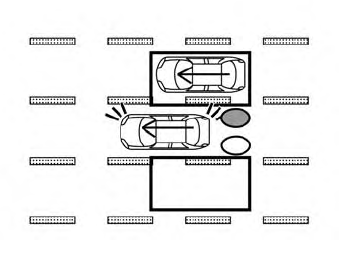

Illustration 6 – Entering from the side
Illustration 6: If the driver activates the
turn signal while another vehicle is in the
detection zone, then the system chimes
(twice) and the side indicator light flashes.
NOTE:
- If the driver activates the turn signal
before a vehicle enters the detection
zone, the side indicator light will flash
but no chime will sound when the
other vehicle is detected.
- The radar sensors may not detect a
vehicle which is traveling at about the
same speed as your vehicle when it
enters the detection zone.
WARNING
Listed below are the system limitations
for the BSW system. Failure to operate
the vehicle in accordance with these
system limitations could result in serious
injury or death...
When radar blockage is detected, the system
will be deactivated automatically. The
“Unavailable: Side Radar Obstruction”
warning message will appear and the
BSW/RCTA indicator (white) will blink
in
the vehicle information display...
