Nissan Murano: Sonar System :: Removal and Installation / Sonar Control Unit

Nissan Murano (Z52) 2015-2024 Service Manual / Driver Information & Multimedia / Sonar System :: Removal and Installation / Sonar Control Unit

Removal and Installation

CAUTION:

Before replacing the Sonar Control Unit, perform “BEFORE REPLACEMENT” to save or print current Nissan Murano vehicle specification. Refer to Description.

REMOVAL

Remove the glove box assembly and housing. Refer to Removal and Installation.

Disconnect the harness connector from the sonar control unit.

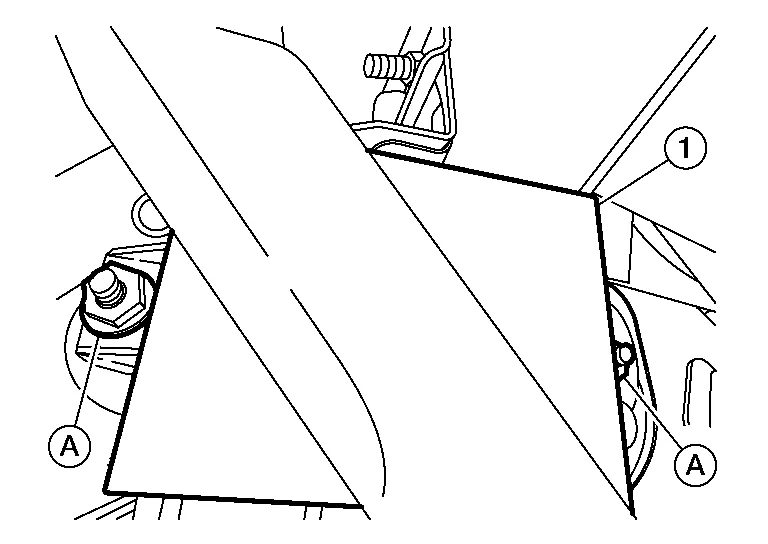

Remove screws (A) and the sonar control unit (1).

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Be sure to perform “AFTER REPLACEMENT” when replacing Sonar Control Unit. Refer to Description.
