Nissan Murano: Exterior :: Removal and Installation / Side Air Spoiler

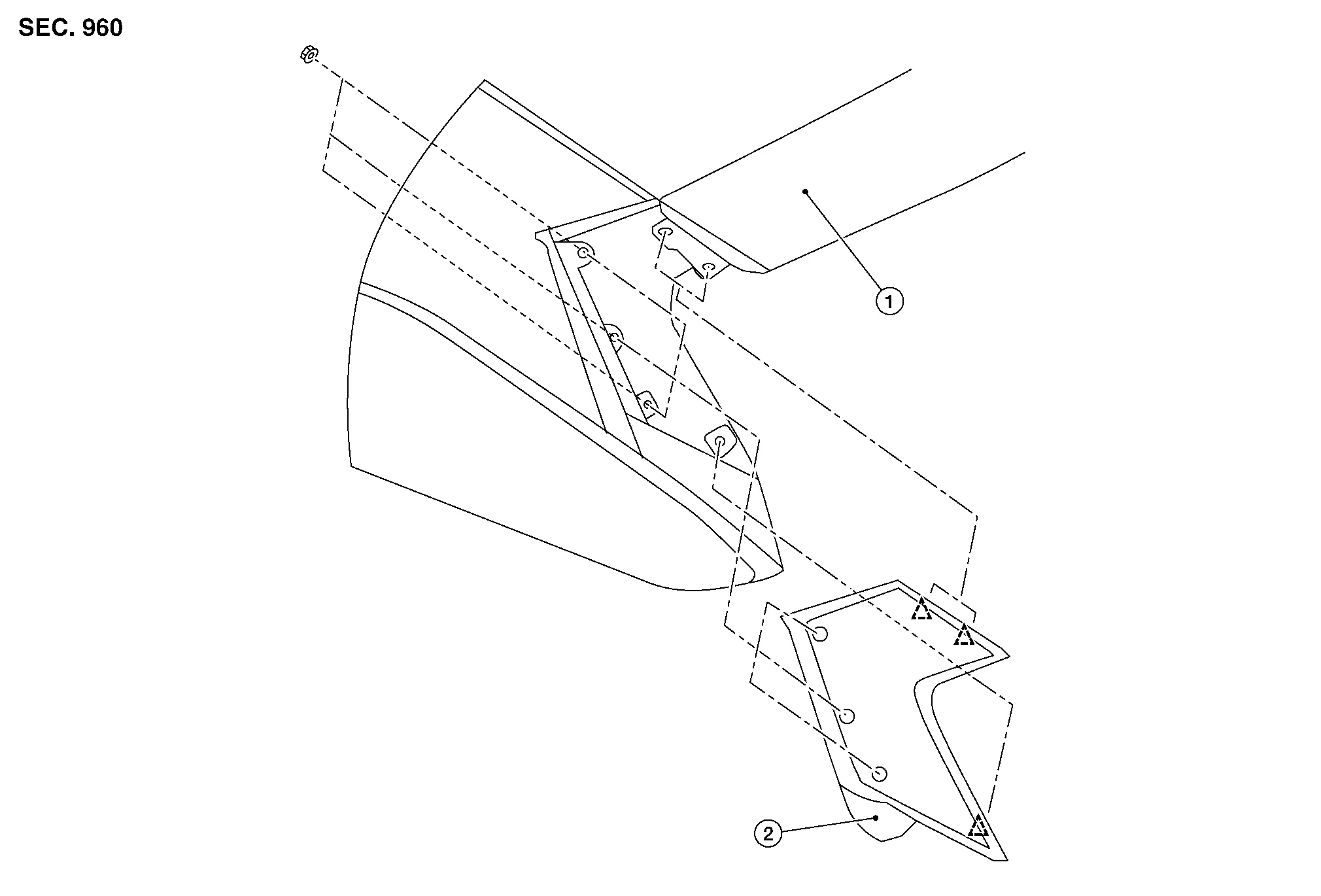

Exploded View

| 1. |
Rear spoiler |
2. |
Side air spoiler |
 |
Clip |
Removal and Installation
REMOVAL
Remove luggage side upper finisher. Refer to Removal and Installation.
Remove rear combination lamp. Refer to Removal and Installation.
Remove side air spoiler bolts.
Release clips using a suitable tool and remove.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
-
When installing, visually check the side air spoiler and clips and replace them with new parts if they have been damaged.
-
When installing side air spoiler, check that clips and bolts are securely placed in body panel holes.
Exploded View
1.
Rear spoiler
2.
Rear washer nozzle
3.
High-mounted stop lamp
Removal and Installation
REMOVALRemove side air spoiler. Refer to Removal and Installation...
Exploded View
1.
Back door outer finisher
2.
Rear view camera
3.
Back door request switch
Clip
Removal and Installation
REMOVALRemove back door lower finisher...
