Nissan Murano. Rear center seat belt

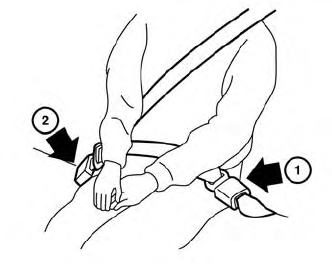

The rear center seat belt has a connector tongue Nissan Murano. Rear center seat belt and a seat belt tongue . Both the connector tongue and the seat belt tongue must be securely latched for proper seat belt operation.

WARNING

Always fasten the connector tongue and the seat belt in the order shown.

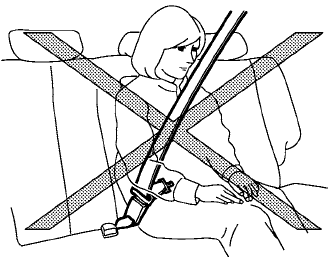

Always make sure both the connector tongue and the seat belt tongue are secured when using the seat belt or installing a child restraint. Do not use the seat belt or child restraint with only the seat belt tongue attached. This could result in serious personal injury in case of an accident or a sudden stop.

Unfastening the seat belts. Checking seat belt operation

Unfastening the seat belts To unfasten the seat belt, press the button on the buckle . The seat belt automatically retracts. Checking seat belt operation Seat belt retractors are designed to lock seat belt movement by two separate methods: When the seat belt is pulled quickly from the retractor When the vehicle slows down rapidly To increase your confidence in the seat belts, check the operation as follows: Grasp the shoulder belt and pull forward quickly...

Attaching the center seat belt

Always be sure the center seat belt connector tongue and connector buckle are attached. Disconnect only when folding down the rear seat. To connect the buckle: Pull out the connector tongue from the retractor base ...
