Nissan Murano: Transaxle & Transmission :: Cvt: Re0f10j / Preparation. Preparation

Nissan Murano (Z52) 2015-2024 Service Manual / Transmission & Driveline / Transaxle & Transmission :: Cvt: Re0f10j / Preparation. Preparation

Special Service Tools

The actual shape of the tools may differ from those illustrated here.
Tool number (TechMate No.) Tool name		Description

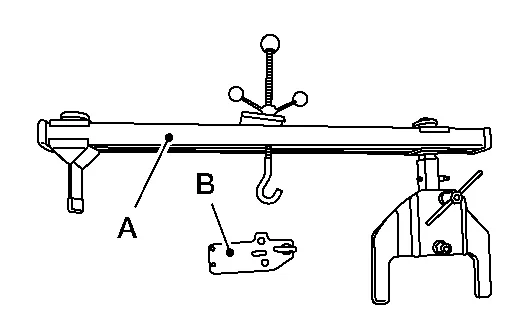

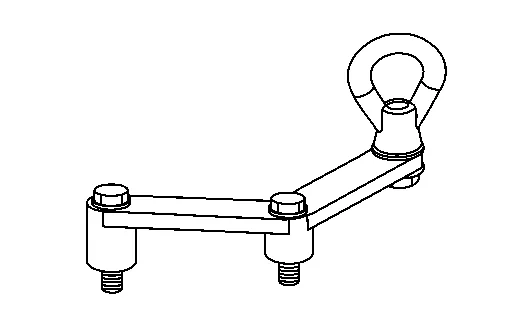

A. — (J-52389) Engine support tool B. — (J-52604) Engine support bracket		Supporting engine

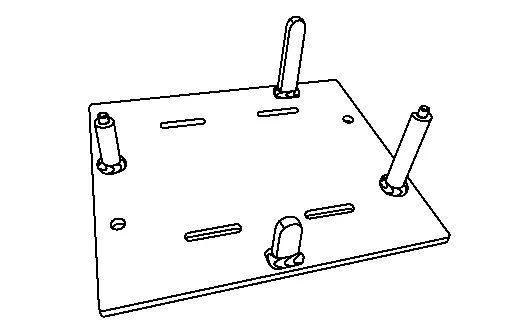

— (J-51307) CVT transmission jack adapter		Removing CVT

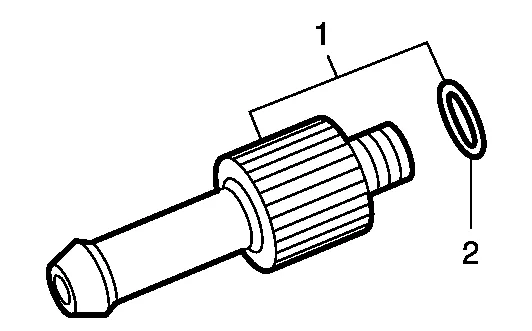

KV311039S0 ( — ) Charging pipe set KV31103920* ( — ) O-ring		CVT fluid changing and adjustment

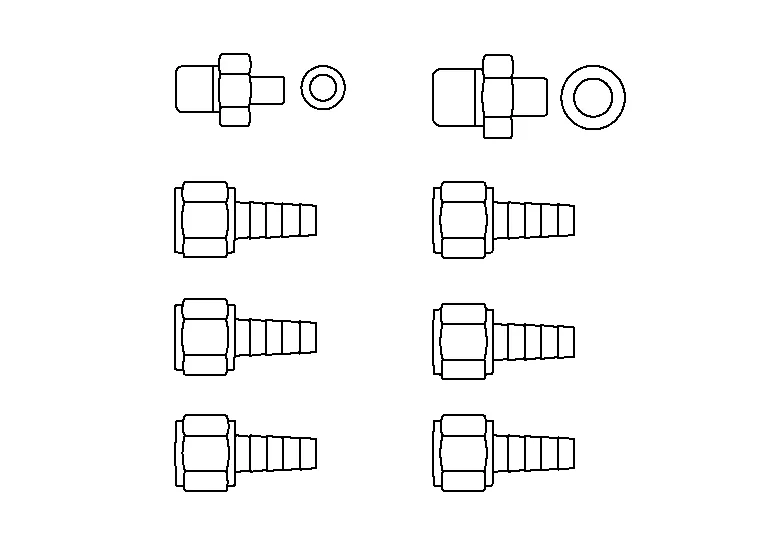

( — ) (J-52584) CVT stand pipe adapter kit		CVT fluid changing and adjustment
KV38107900 (J-52469–1) Differential side oil seal protector		Installing drive shaft A: 32 mm (1.26 in) dia B: Minimum 23 mm (0.91 in)
( — ) (J-43926) Refrigerant dye leak detection kit Kit includes: UV lamp and UV safety goggles Refrigerant dye injector Fluorescent leak detection dye (box of 24, 1/4 ounce bottles) Refrigerant dye cleaner		Power supply: DC 12V (battery terminal)
( — ) (J-52990)		Fluorescent Oil Dye
— (J-51155) CVT8 fluid level quick check gauge		Checking CVT fluid level
(J-52611) CVT charge pipe cap release tool		Removing CVT charge pipe cap

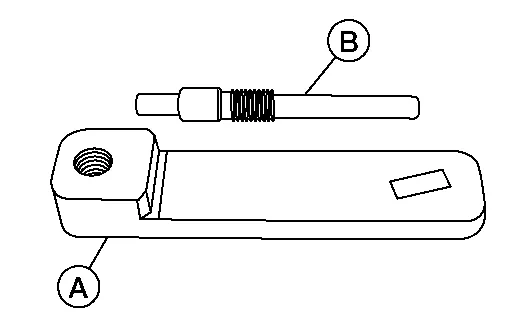

(J-52306) CVT Transmission Range Switch (PNP) A. Pin B. Gauge		Replacing Transmission Range Switch

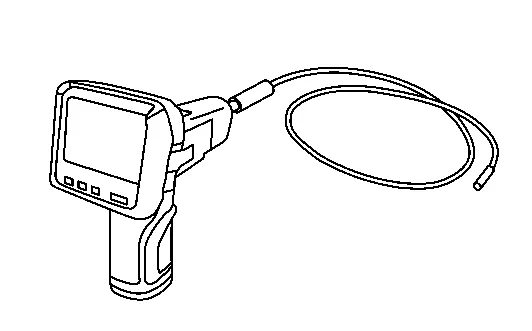

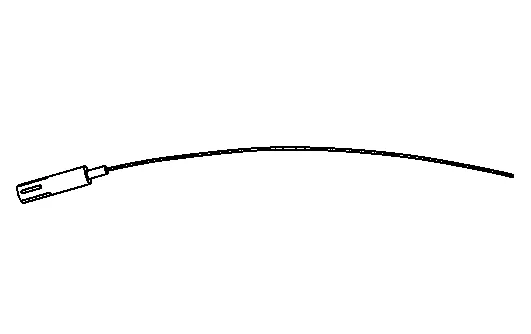

— (J-51951) Borescope kit		CVT chain inspection

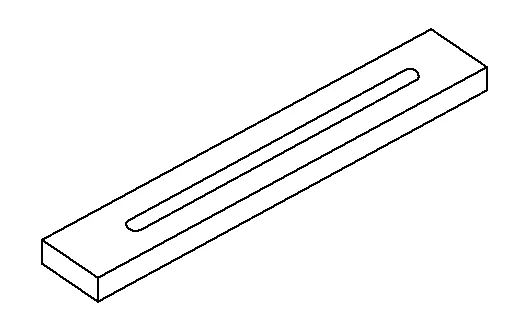

KV315J0400 (J-50271) Gauge block		Measuring the reverse brake clearance Measuring the differential preload Measuring the reduction gear preload Measuring the total end play

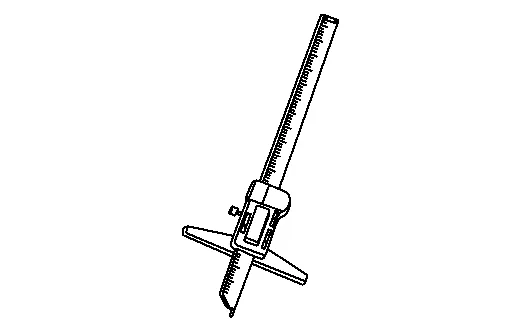

KV315J0500 (J-50272) Digital depth gauge		Measuring the reverse brake clearance Measuring the differential preload Measuring the reduction gear preload Measuring the total end play

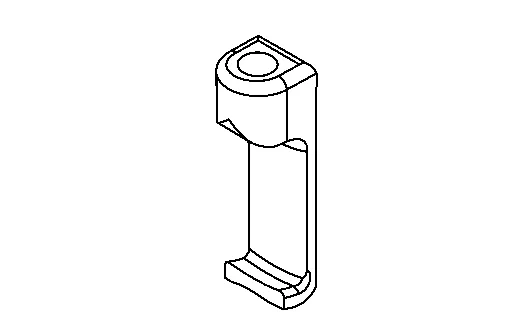

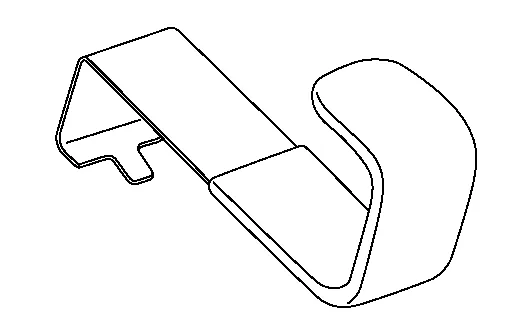

KV315J0620 (J-51923) J-hook case separator		Removing converter housing Removing side cover

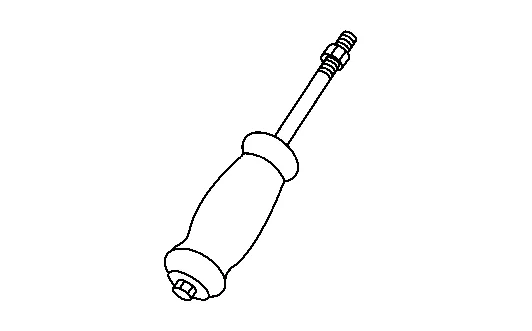

KV315J0610 (J-25721-A) Slide hammer		Removing converter housing Removing side cover Removing bearing outer race

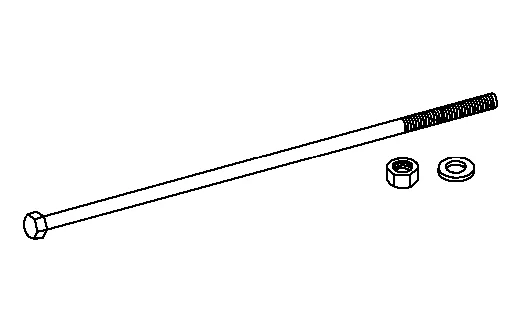

KV315J0630 (J-50255–UPD) Slide hammer nut and bolt kit		Removing converter housing Removing side cover

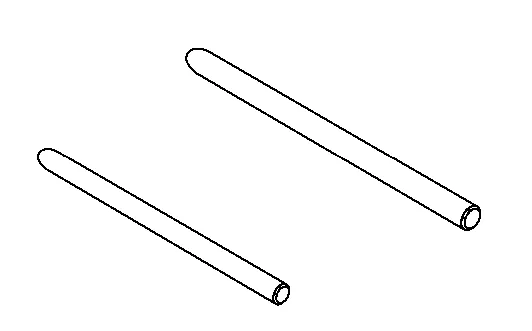

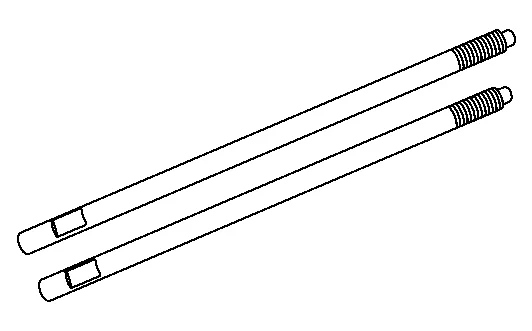

KV315J0200 (J-51959) CVT assembly guide pins		Installing side cover
KV31500300 (J-52272) Assembly guide pins, pulley bracket		Installing side cover

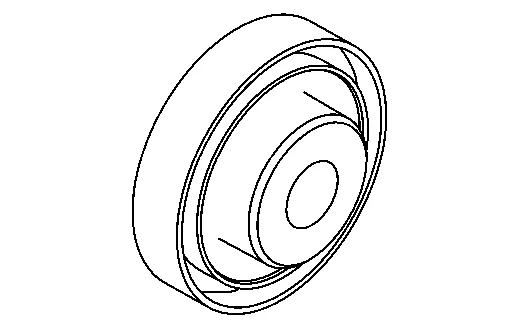

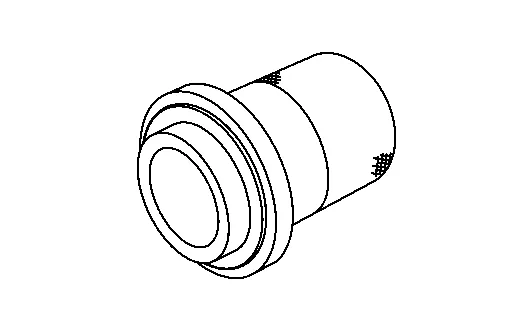

KV31500800 (J-52283) Output seal installer, case side		Installing differential side oil seal, case side
KV31500900 (J-52284) Output seal installer, torque converter side		Installing differential side oil seal, torque converter side

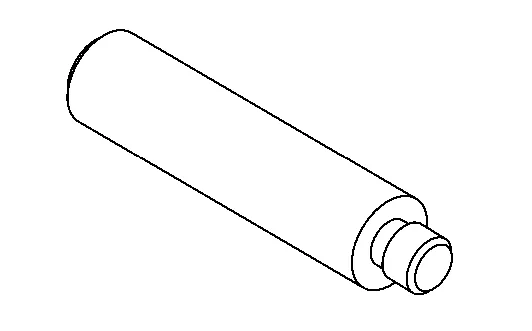

ST35325000 (J-8092) Universal driver handle		Installing oil seal
KV31500700 (J-50818) Oil pump seal installer		Installing oil pump seal

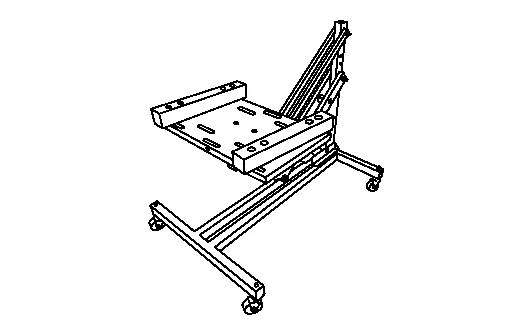

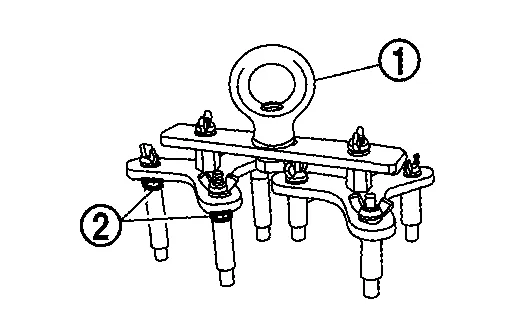

KV315J0100 (J-52082) CVT universal lifting fixture — (J-52082–2) Three spacers		Removing / Installing sub - assembly
— (J-52275) Side cover alignment aid		Adjusting side cover

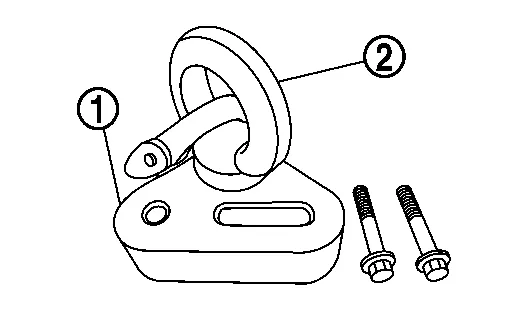

— (J-51595) CVT lifter bracket — (J-51595-1) CVT lifting eye / swivel assembly		Attaching lift tools

*: The O-ring as a unit part is set as a SST.

Commercial Service Tools

Tool name		Description
Power tool		Loosening nuts, screws and bolts
Hydraulic lift table		Removing front suspension member

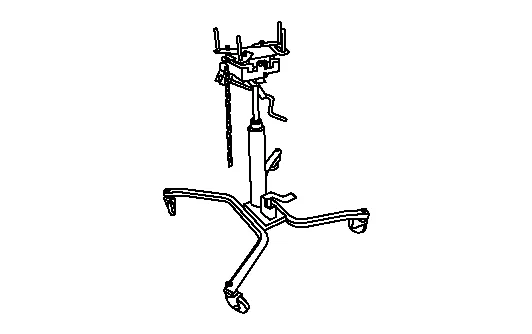

Transmission jack		Removing transaxle assembly
Drive shaft joint puller		Removing drive shaft

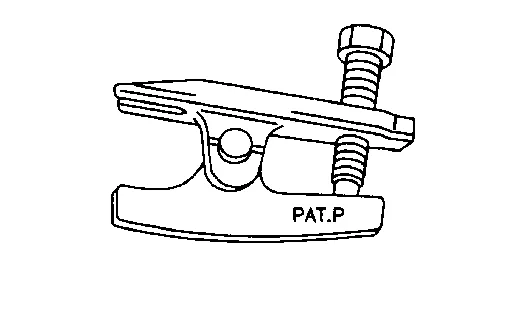

Ball joint remover		Removing steering outer socket

Precaution. Precautions

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT PRE-TENSIONER" The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain types of collisions...
