Nissan Murano: Supplemental Restraint System (SRS) / Precautions on SRS

Nissan Murano 2015-2022 Owners Manual / Safety—Seats, seat belts and supplemental restraint system / Supplemental Restraint System (SRS) / Precautions on SRS

This SRS section contains important information concerning the following systems:

  • Driver and front passenger supplemental front-impact air bag (NISSAN Advanced Air Bag System)
  • Front seat-mounted side-impact supplemental air bag
  • Rear outboard seat-mounted sideimpact supplemental air bag
  • Roof-mounted curtain side-impact and rollover supplemental air bag
  • Driver and passenger supplemental knee air bag
  • Seat belt with pretensioner(s) (front and rear outboard seats)

Supplemental front-impact air bag system

The NISSAN Advanced Air Bag System can help cushion the impact force to the head and chest of the driver and front passenger in certain frontal collisions.

Front seat-mounted side-impact supplemental air bag system

This system can help cushion the impact force to the chest area of the driver and front passenger in certain side-impact collisions. The side air bags are designed to inflate on the side where the vehicle is impacted.

Rear outboard seat-mounted sideimpact supplemental air bag system

This system can help cushion the impact force to the chest area of the rear outboard seat passengers in certain side-impact collisions. The side air bags are designed to inflate on the side where the vehicle is impacted.

Roof-mounted curtain side-impact and rollover supplemental air bag system

This system can help cushion the impact force to the head of occupants in front and rear outboard seating positions in certain side-impact collisions. The curtain air bags are designed to inflate on the side where the vehicle is impacted. In a rollover, the curtain air bags are designed to inflate and remain inflated for a short time.

Driver and passenger supplemental knee air bags

This system can help cushion the impact force to the driver’s and front passenger’s knees in certain collisions.

The SRS is designed to supplement the crash protection provided by the driver and front passenger and rear outboard seat belts and is not a substitute for them. Seat belts should always be correctly worn and the occupant seated a suitable distance away from the steering wheel, instrument panel and door finishers. For additional information, refer to “Seat belts” in this section.

The supplemental air bags operate only when the ignition switch is placed in the ON position.

After placing the ignition switch in the ON position, the supplemental air bag warning light illuminates. The supplemental air bag warning light will turn off after about 7 seconds if the system is operational.

WARNING

  • The front air bags ordinarily will not inflate in the event of a side impact, rear impact, rollover, or lower severity frontal collision. Always wear your seat belts to help reduce the risk or severity of injury in various kinds of accidents
  • The front passenger air bag and passenger knee air bag will not inflate if the passenger air bag status light is lit. For additional information, refer to “Front passenger air bag and status light” in this section.

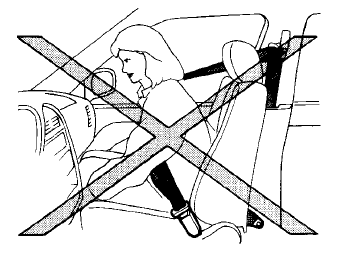

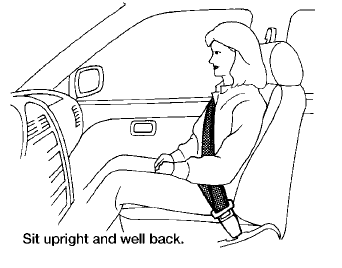

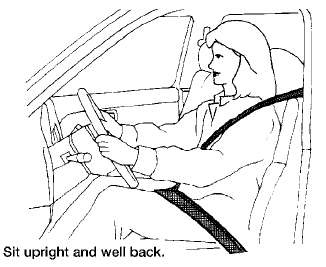

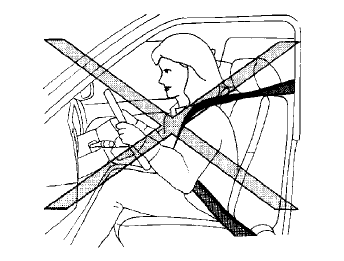

  • The seat belts and the front air bags are most effective when you are sitting well back and upright in the seat. The front air bags inflate with great force. Even with the NISSAN Advanced Air Bag System, if you are unrestrained, leaning forward, sitting sideways or out of position in anyway, you are at greater risk of injury or death in a crash. You may also receive serious or fatal injuries from the front air bag if you are up against itwhenit inflates. Always sit back against the seatback and as far away as practical from the steering wheel or instrument panel. Always properly use the seat belts.

    Nissan Murano. Precautions on SRS

    Nissan Murano. Precautions on SRS

  • The driver and front passenger seat belt buckles are equipped with sensors that detect if the seat belts are fastened. The NISSAN Advanced Air Bag System monitors the severity of a collision and seat belt usage, then inflates the air bags as needed. Failure to properly wear seat belts can increase the risk or severity of injury in an accident.
  • The front passenger seat is equipped with an occupant classification sensor (weight sensor) that turns the front passenger air bag and passenger knee air bag OFF under some conditions. This sensor is only used in this seat. Failure to be properly seated and wearing the seat belt can increase the risk or severity of injury in an accident. For additional information, refer to “Front passenger air bag and status light” in this section.
  • Keep hands on the outside of the steering wheel. Placing them inside the steering wheel rim could increase the risk that they are injured when the front air bag inflates.

    Nissan Murano. Precautions on SRS

    Nissan Murano. Precautions on SRS

WARNING

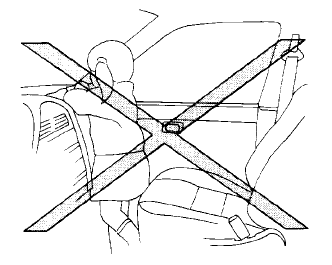

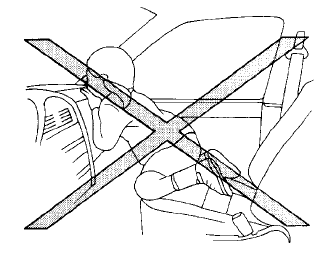

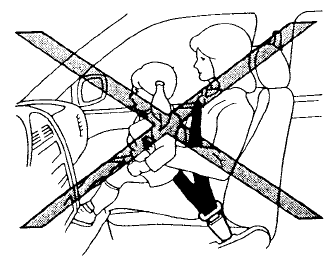

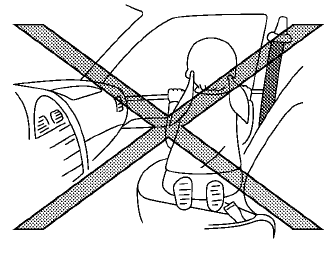

  • Never let children ride unrestrained or extend their hands or face out of the window. Do not attempt to hold them in your lap or arms.Some examples of dangerous riding positions are shown in the illustrations.

    Nissan Murano. Precautions on SRS

WARNING

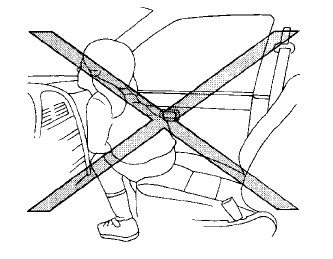

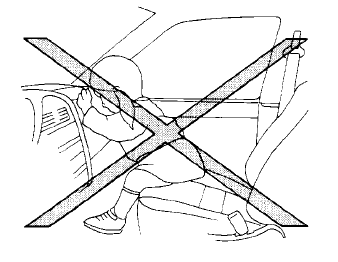

  • Children may be severely injured or killed when the front air bags, side air bags or curtain air bags inflate if they are not properly restrained. Pre-teens and children should be properly restrained in the rear seat, if possible.

Nissan Murano. Precautions on SRS

Nissan Murano. Precautions on SRS

Nissan Murano. Precautions on SRS

  • Nissan Murano. Precautions on SRS

WARNING

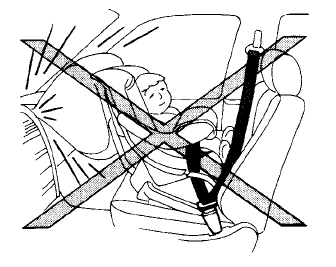

  • Even with the NISSAN Advanced Air Bag System, never install a rearfacing child restraint in the front seat. An inflating front air bag could seriously injure or kill your child. For additional information, refer to “Child restraints” in this section.

    Nissan Murano. Precautions on SRS

WARNING

Front and rear outboard seat-mounted side-impact supplemental air bags and roof-mounted curtain side-impact and rollover supplemental air bags:

  • The side air bags and curtain air bags ordinarily will not inflate in the event of a frontal impact, rear impact, or lower severity side collision. Always wear your seat belts to help reduce the risk or severity of injury in various kinds of accidents.

WARNING

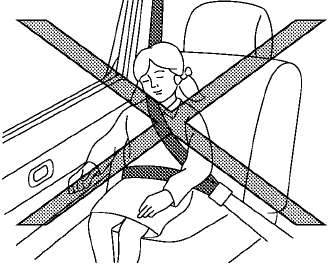

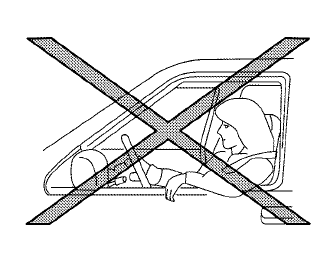

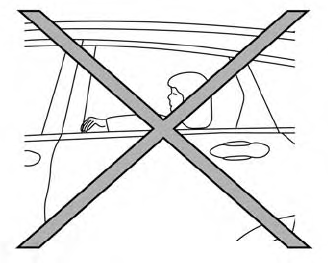

  • The seat belts, the side air bags and curtain air bags are most effective when you are sitting well back and upright in the seat with both feet on the floor. The side air bag and curtain air bag inflate with great force. Do not allow anyone to place their hand, leg or face near the side air bag on the side of the seatback of the front and rear seat or near the side roof rails. Do not allow anyone sitting in the front seats or rear outboardseats to extend their hand out of the window or lean against the door. Some examples of dangerous riding positions are shown in the previous illustrations.

    Nissan Murano. Precautions on SRS

    Nissan Murano. Precautions on SRS

WARNING

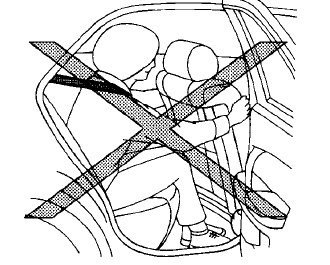

  • When sitting in the rear seat, do not hold onto the seatback of the front seat. If the side air bag inflates, you may be seriously injured. Be especially careful with children, who should always be properly restrained. Some examples of dangerous riding positions are shown in the illustrations.
  • Do not use seat covers on the front or rear seatbacks. They may interfere with side air bag inflation.

    Nissan Murano. Precautions on SRS

    Nissan Murano. Precautions on SRS

    Nissan Murano. Precautions on SRS

    Supplemental Restraint System (SRS)

    ..

    NISSAN Advanced Air Bag System (front seats)

    Supplemental front-impact air bag modules Air bag Control Unit (ACU) Occupant classification sensor (weight sensor) Front seat-mounted side-impact supplemental air bag modules Roof-mounted curtain side-impact and rollover supplemental air bags Roof-mounted curtain side-impact and rollover supplemental air bag inflators Rear outboard seat-mounted sideimpact supplemental air bag modules Seat belt with pretensioner(s) (rear outboard seats) Satellite sensors Seat belt with pretensioner(s) (front seats) Pressure sensors in door (driver’s side shown; front passenger side is similar) Driver and passenger supplemental knee air bags Crash zone sensor WARNING To ensure proper operation of the passenger’s NISSAN Advanced Air Bag System, please observe the following items...
