Nissan Murano: Power Window Control System :: Ecu Diagnosis Information / Power Window and Door Lock/unlock Switch Rh

Nissan Murano (Z52) 2015-2024 Service Manual / Body Exterior, Doors, Roof & Vehicle Security / Power Window Control System :: Ecu Diagnosis Information / Power Window and Door Lock/unlock Switch Rh

Reference Value

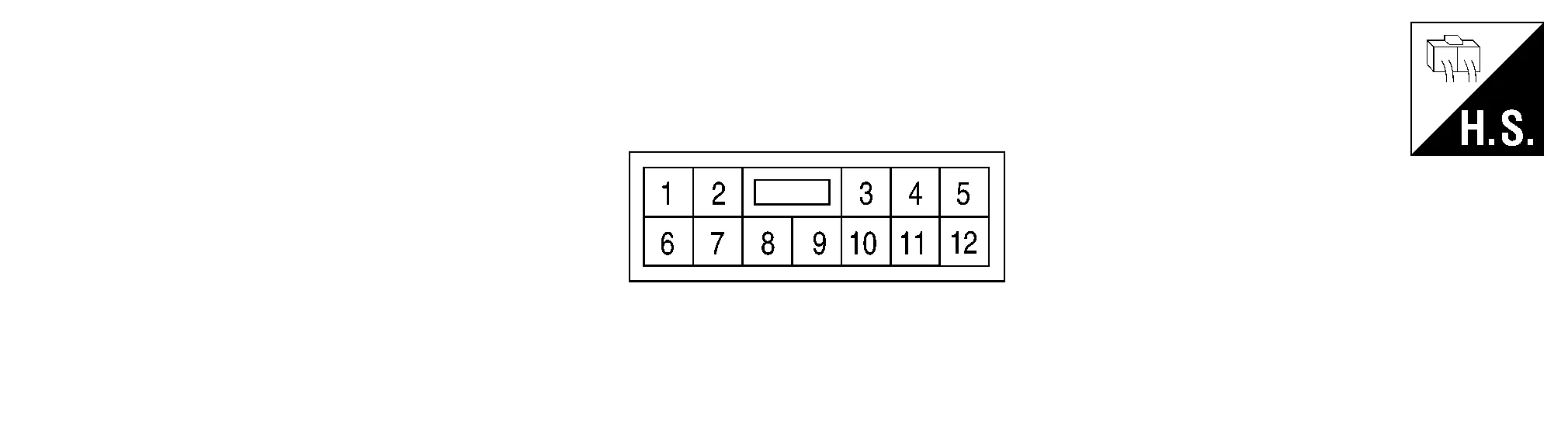

TERMINAL LAYOUT

PHYSICAL VALUES

Terminal No.

(wire color) 		Description Condition

Voltage

(Approx.)
+ - Signal name Input/Output

3

(Y/L) 		Ground Power window serial link Input/Output IGN SW ON or power window operating

4

(B) 		Ground Encoder ground — — —

5

(L/W) 		Ground Encoder power supply Output When ignition switch ON or power window timer operates. Battery voltage

7

(B) 		Ground Ground — — —

8

(Y) 		Ground Battery power supply Input — Battery voltage

9

(P)

4

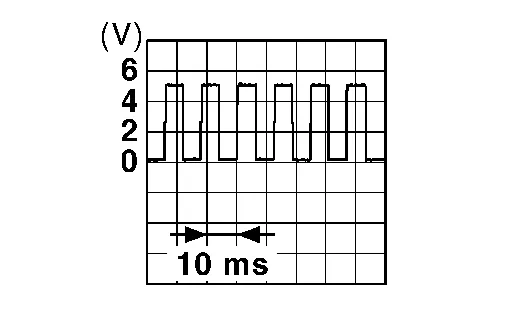

(B) 		Encoder pulse signal 1 Input When power window motor operates

10

(R)

4

(B) 		Encoder pulse signal 2 Input When power window motor operates

11

(G)

12

(G) 		Assistant window switch UP signal Output When power window and door lock/unlock switch RH is operated UP Battery voltage

12

(G)

11

(G) 		Assistant window switch DOWN signal Output When power window and door lock/unlock switch RH is operated DOWN Battery voltage

FAIL-SAFE CONTROL

Switches to fail-safe control when malfunction is detected in encoder signal that detects up/down speed and direction of door glass. Switches to fail-safe control when an error beyond the regulation value is detected between the fully closed position and the actual position of the glass.

Malfunction Malfunction condition
Pulse sensor malfunction When only one side of pulse signal is being detected for more than the specified value.
Both pulse sensors malfunction When both pulse signals have not been detected for more than the specified value during glass open/close operation.
Pulse direction malfunction When the pulse signal that is detected during glass open/close operation detects the opposite condition of power window motor operating direction.
Glass recognition position malfunction 1 When it detects the error between glass fully closed position in power window switch memory and actual fully closed position during glass open/close operation is more than the specified value.
Glass recognition position malfunction 2 When it detects pulse count more that the value of glass full stroke during glass open/close operation.
Malfunction of not yet updated closed position of glass When glass open/close operation is continuously performed without fully closing more that the specified value (approximately 10 strokes).

It changes to condition before initialization and the following functions do not operate when switched to fail-safe control:

  • Auto-up operation

  • Anti-pinch function

  • Retained power function

Perform initial operation to recover when switched to fail-safe mode. However, it switches back to fail-safe control when malfunction is found in power window switch or in motor.
