Nissan Murano: Security Control System :: Removal and Installation / Immobilizer Control Module

Nissan Murano (Z52) 2015-2024 Service Manual / Body Exterior, Doors, Roof & Vehicle Security / Security Control System :: Removal and Installation / Immobilizer Control Module

Removal and Installation

Removal

The immobilizer control module is integrated into the body control module (BCM). For removal and installation, refer to Removal and Installation.

Removal (Canada only)

  1. Remove instrument panel assembly. Refer to Removal and Installation.

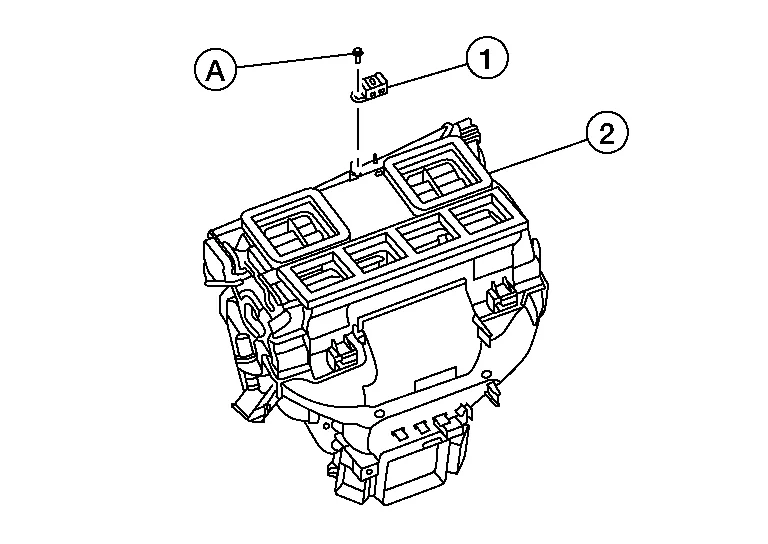

  2. Disconnect the harness connector from the dongle unit (1).

  3. Remove screw (A) and dongle unit (1) from heating and cooling unit assembly (2).

INSTALLATION

Installation is in the reverse order of removal.
