Nissan Murano: Maintenance / Maintenance :: Preparation. Preparation

Nissan Murano (Z52) 2015-2024 Service Manual / Maintenance / Maintenance :: Preparation. Preparation

Special Service Tool

The actual shape of the tools may differ from those illustrated here.

Tool number (TechMate No.) Tool name		Description

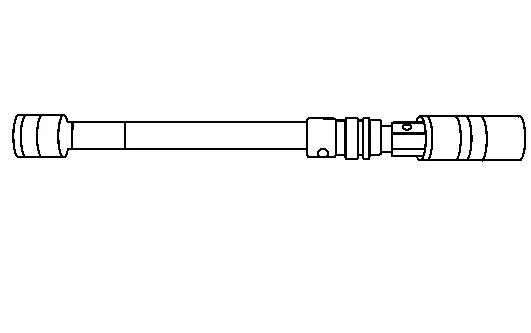

— (J-48891) Spark plug socket		Removing and installing spark plug
— (J-51771) Cooling system pressure test kit — (J-51771-1) Main body — (J-51771-4) Small adapter — (J-51771-5) Pump with quick release — (J-51771-9) Radiator cap assembly with quick coupler		Checking cooling system and radiator cap
KV991J0070 (J-45695-A) Coolant Refill Tool		Refilling engine cooling system

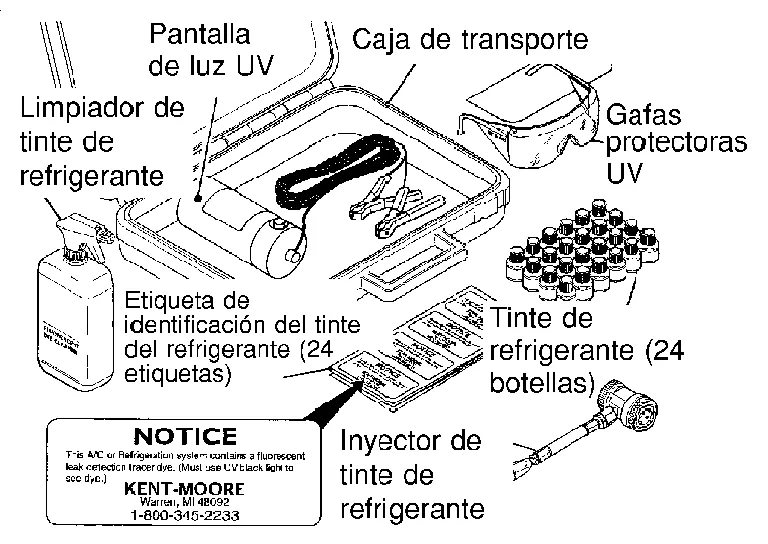

(J-43926) Refrigerant dye leak detection kit Kit includes: UV lamp and UV safety goggles Refrigerant dye injector Fluorescent leak detection dye (box of 24, 1/4 ounce bottles) Refrigerant dye cleaner		Power supply: DC 12V (battery terminal)
(J-52990)		Fluorescent Oil Dye
(TIFZX) Electronic Refrigerant Leak Detector		Detects refrigerant leaks
KV311039S0 ( — ) Charging pipe set KV31103920* ( — ) O-ring		CVT fluid changing and adjustment
( — ) (J-52584) CVT stand pipe adapter kit		CVT fluid changing and adjustment
(—) (J-51155) CVT8 fluid level quick check gauge		Checking CVT fluid level
( — ) (J-52611) CVT charge pipe cap release tool		Removing CVT charge pipe cap

Commercial Service Tool

(TechMate No.) Tool name	Description
( — ) Power tool		Loosening nuts, screws and bolts
( — ) Oil filter wrench assortment		Removing oil filter
(J-33984-A) Radiator pressure adapter		Adapting cooling system pressure tester to radiator cap and reservoir tank cap a: 28 (1.10) dia. b: 31.4 (1.236) dia. c: 41.3 (1.626) dia. Unit: mm (in)

(TechMate No.)

Tool name

Description

( — )

Power tool

Loosening nuts, screws and bolts

( — )

Oil filter wrench assortment

Removing oil filter

(J-33984-A)

Radiator pressure adapter

Adapting cooling system pressure tester to radiator cap and reservoir tank cap

a: 28 (1.10) dia.

b: 31.4 (1.236) dia.

c: 41.3 (1.626) dia.

Unit: mm (in)

Maintenance :: Precaution. Precautions

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT PRE-TENSIONER" The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain types of collisions...
