Nissan Murano: Engine Mechanical :: Removal and Installation / Ignition Coil

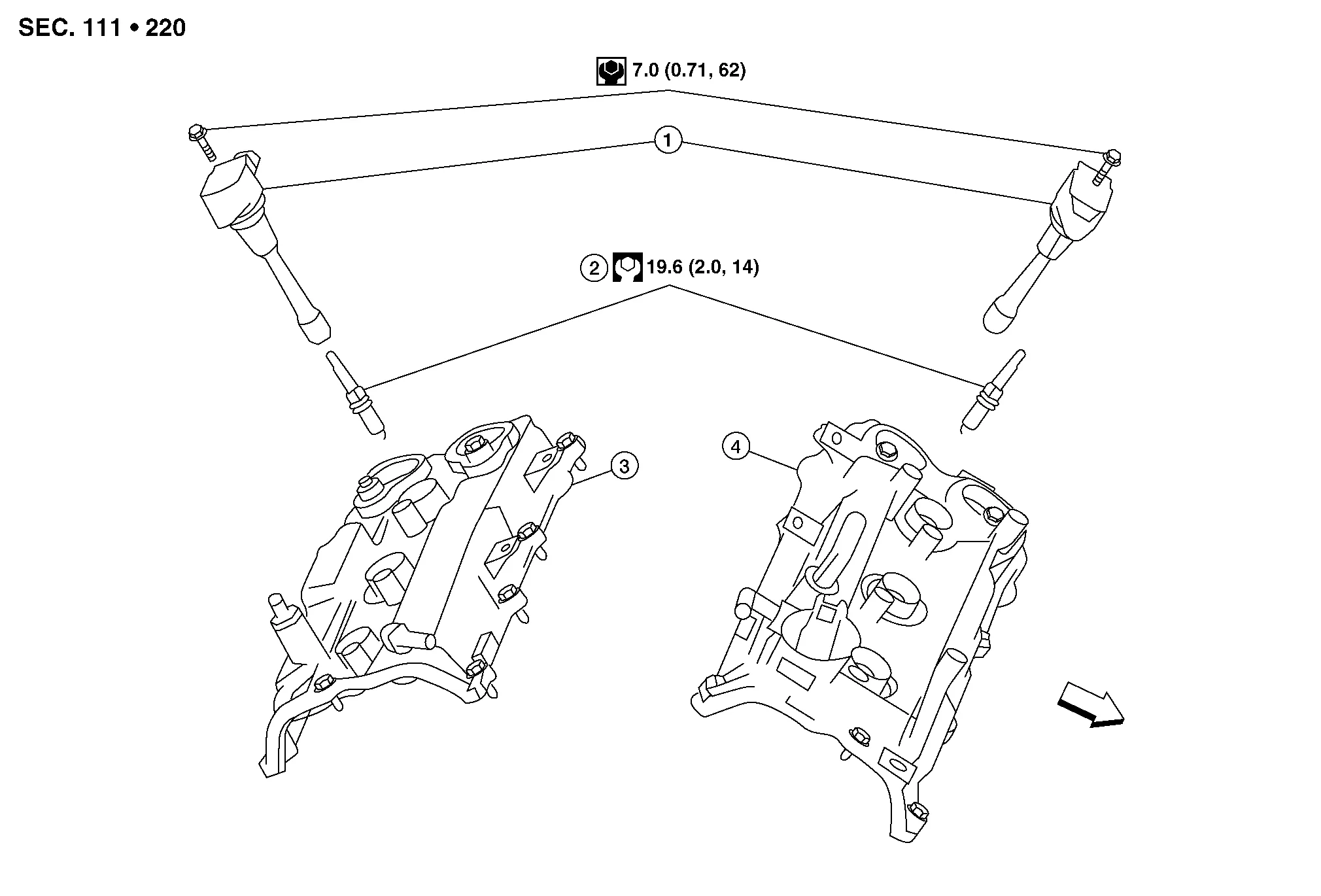

Exploded View

| 1. |
Ignition coil |
2. |
Spark plug |
3. |
Rocker cover (Bank 1) |
| 4. |
Rocker cover (Bank 2) |
 |
Front |
|
|
Removal and Installation (bank 2)
REMOVAL
Remove engine room cover. Refer to Removal and Installation.
Disconnect the harness connector from ignition coil.
Remove the ignition coil.
CAUTION:
Do not shock ignition coil.
INSTALLATION
Installation is in the reverse order of removal.
Removal and Installation (bank 1)
REMOVAL
Remove the intake manifold collector. Refer to Removal and Installation.
Disconnect the harness connector from ignition coil.
Remove the ignition coil.
CAUTION:
Do not shock ignition coil.
INSTALLATION
Installation is in the reverse order of removal.
