Nissan Murano: Rear Cross Traffic Alert (RCTA) (if so equipped) / How to enable/disable the RCTA system
Perform the following steps to enable or disable the RCTA system.
Using “Settings” in the vehicle information display:
- Press the
button until
“Settings”
displays in the vehicle information display
and then press the OK button. Use
the
button to select “Driver
Assistance.”
Then press the OK button. - Select “Blind Spot” and press the OK button.
When the RCTA system is turned on, the BSW/RCTA indicator (white) in the vehicle information display illuminates.

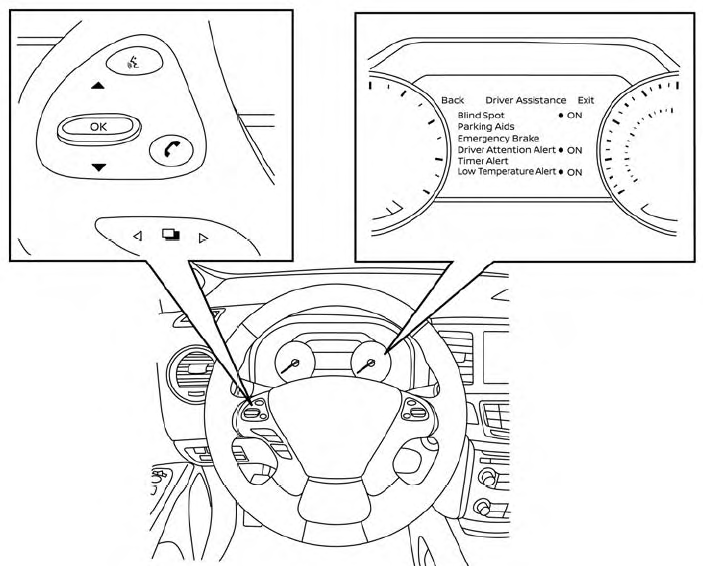

Using the “Driving Aids” screen in the vehicle information display:
Use the
buttons on the steering
wheel to scroll to the Driving Aids
screen.
Press the OK button to access the Driver Assistance menu.
Select “Blind Spot” and press OK to change the LSD3432 Driving Aids setting.
NOTE:
The RCTA system is integrated into the BSW system. There is not a separate selection in the vehicle information display for the RCTA system. When the BSW is disabled, the RCTA system is also disabled.
When enabling/disabling the system, the system setting will be retained even if the engine is restarted.
RCTA system operation
Side BSW/RCTA Indicator Light
BSW/RCTA Indicator
The RCTA system can help alert the driver
of an approaching vehicle when the driver
is backing out of a parking space...
RCTA system limitations
WARNING
Listed below are the system limitations
for the RCTA system. Failure to operate
the vehicle in accordance with these
system limitations could result in serious
injury or death...
