Nissan Murano: Driver Controls / Horn :: Removal and Installation. Horn

Nissan Murano (Z52) 2015-2024 Service Manual / Driver Controls / Horn :: Removal and Installation. Horn

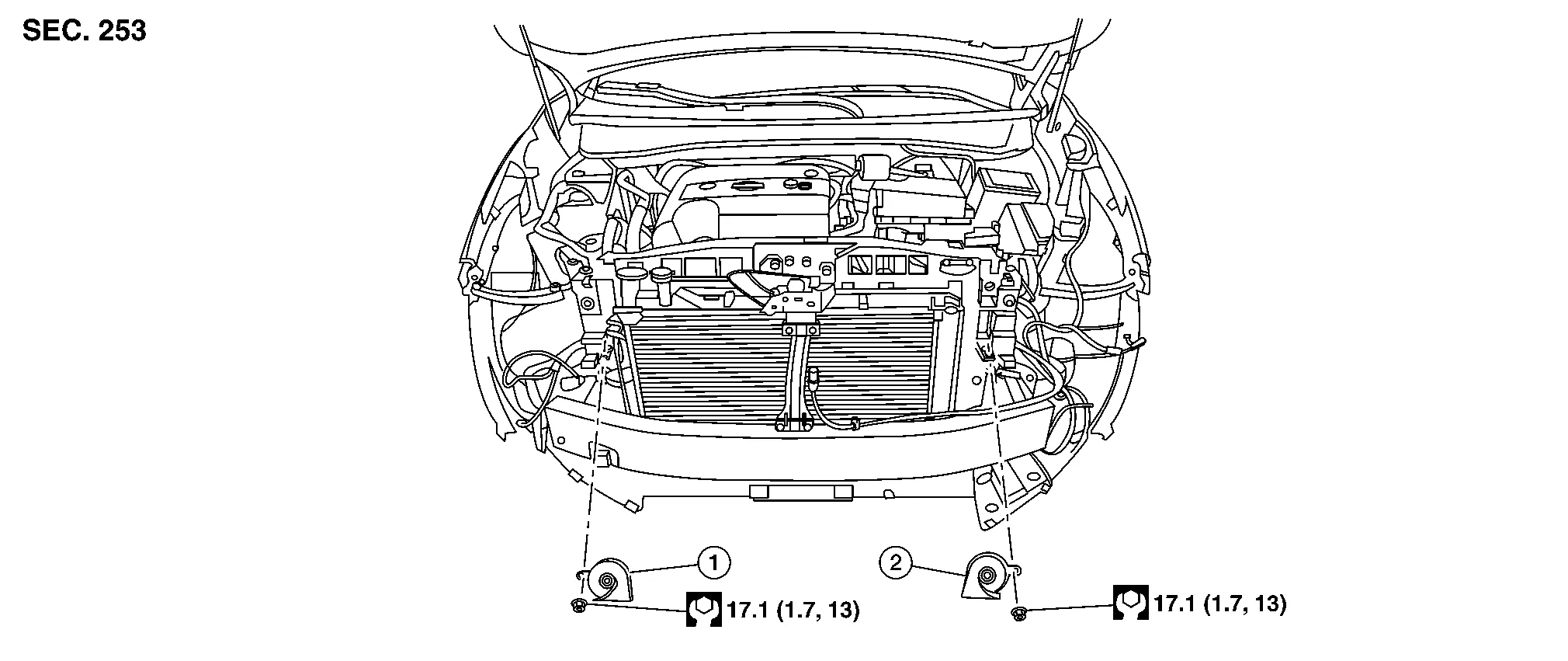

Exploded View

1. Horn (LOW) 2. Horn (HIGH)
Removal and Installation

REMOVAL

Remove the front grille. Refer to Removal and Installation.

Disconnect the harness connectors from the horns (LOW, HIGH).

NOTE:

Note the wiring harness connectors location prior to removal.

Remove the horn bolts and the horns (LOW, HIGH).

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Install the wiring harness connectors in the proper locations.
