Nissan Murano (Z52) 2015-2024 Service Manual / Ventilation, Heater & Air Conditioner / Heater & Air Conditioning System :: Removal and Installation / Cooler Pipe and Hose / High-Pressure Pipe

Removal and Installation

REMOVAL

Discharge the refrigerant. Refer to Recycle Refrigerant.

Remove the power steering oil pump assembly. Refer to Removal and Installation.

Remove the washer tank. Refer to Removal and Installation.

Remove bolt (A) and disconnect the internal heat exchanger (1) from the high-pressure pipe (3).

CAUTION:

Cap or wrap the joint of the pipe with suitable material such as vinyl tape to avoid the entry of air.

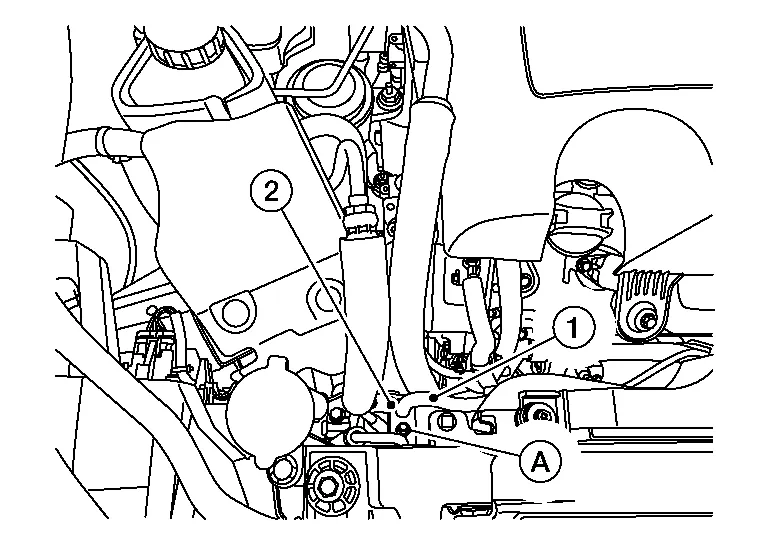

Remove bolt (A) and disconnect the high-pressure pipe (1) from the condenser pipe assembly (2).

CAUTION:

Cap or wrap the joint of the pipe with suitable material such as vinyl tape to avoid the entry of air.

Remove the high-pressure pipe.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

  • Do not reuse O-rings.

  • Apply A/C oil to the O-rings of the high-pressure pipe and internal heat exchanger for installation.

  • After charging refrigerant, check for leaks. Refer to Leak Test.
