Nissan Murano: Heater & Air Conditioning System :: Removal and Installation / Cooler Pipe and Hose

Nissan Murano (Z52) 2015-2024 Service Manual / Ventilation, Heater & Air Conditioner / Heater & Air Conditioning System :: Removal and Installation / Cooler Pipe and Hose

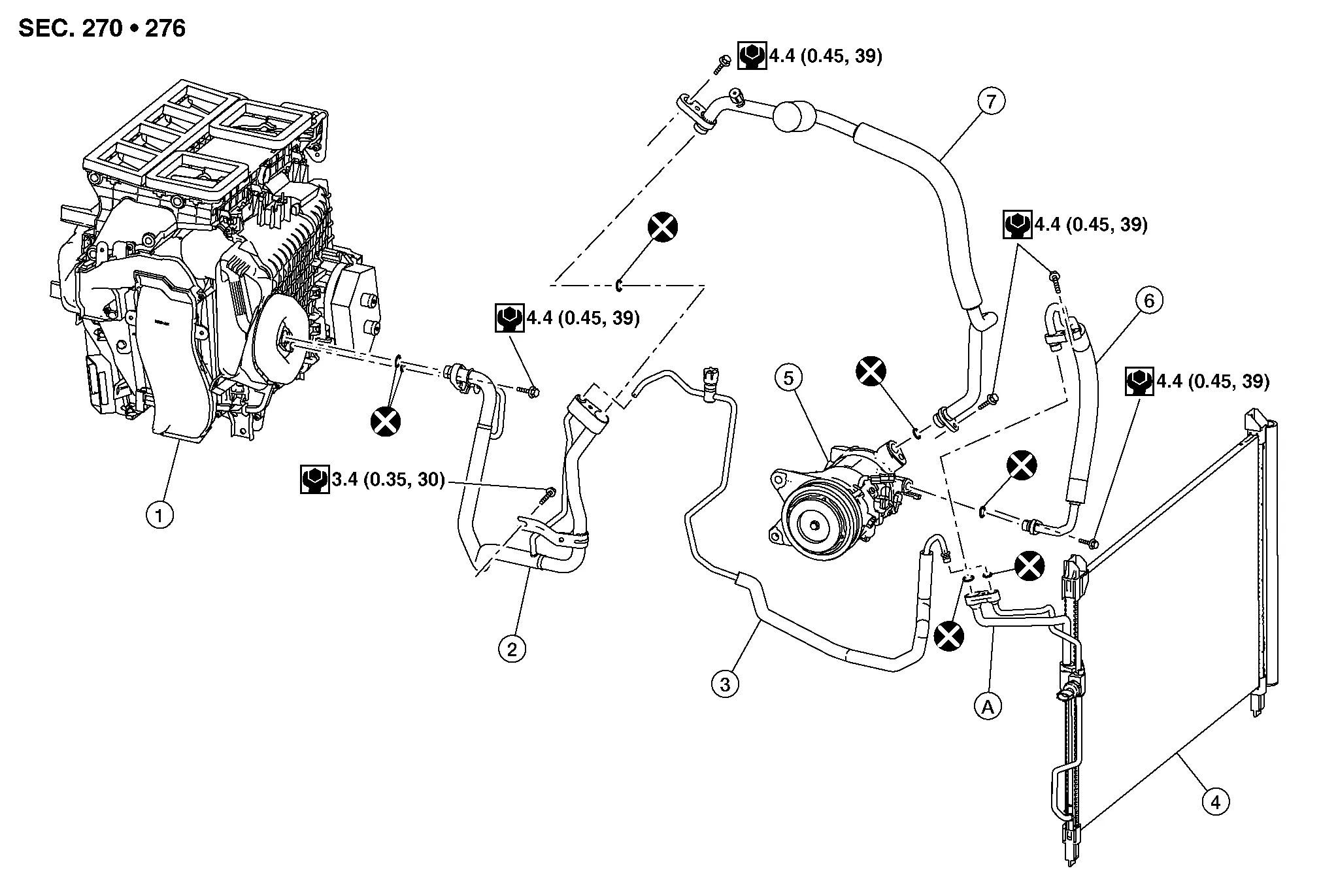

Exploded View

1.	Heating and cooling unit assembly	2.	Internal heat exchanger	3.	High-pressure pipe
4.	Condenser	5.	Compressor	6.	High-pressure flexible hose
7.	Low-pressure flexible hose	A.	Condenser pipe assembly

Magnet Clutch

Removal and Installation of Compressor Clutch REMOVALRemove the compressor. Refer to Removal and Installation. Remove the center bolt by holding the clutch disc steady using a suitable tool...

High-Pressure Pipe

Removal and Installation REMOVALDischarge the refrigerant. Refer to Recycle Refrigerant. Remove the power steering oil pump assembly. Refer to Removal and Installation...
