Nissan Murano: System / Headlamp System

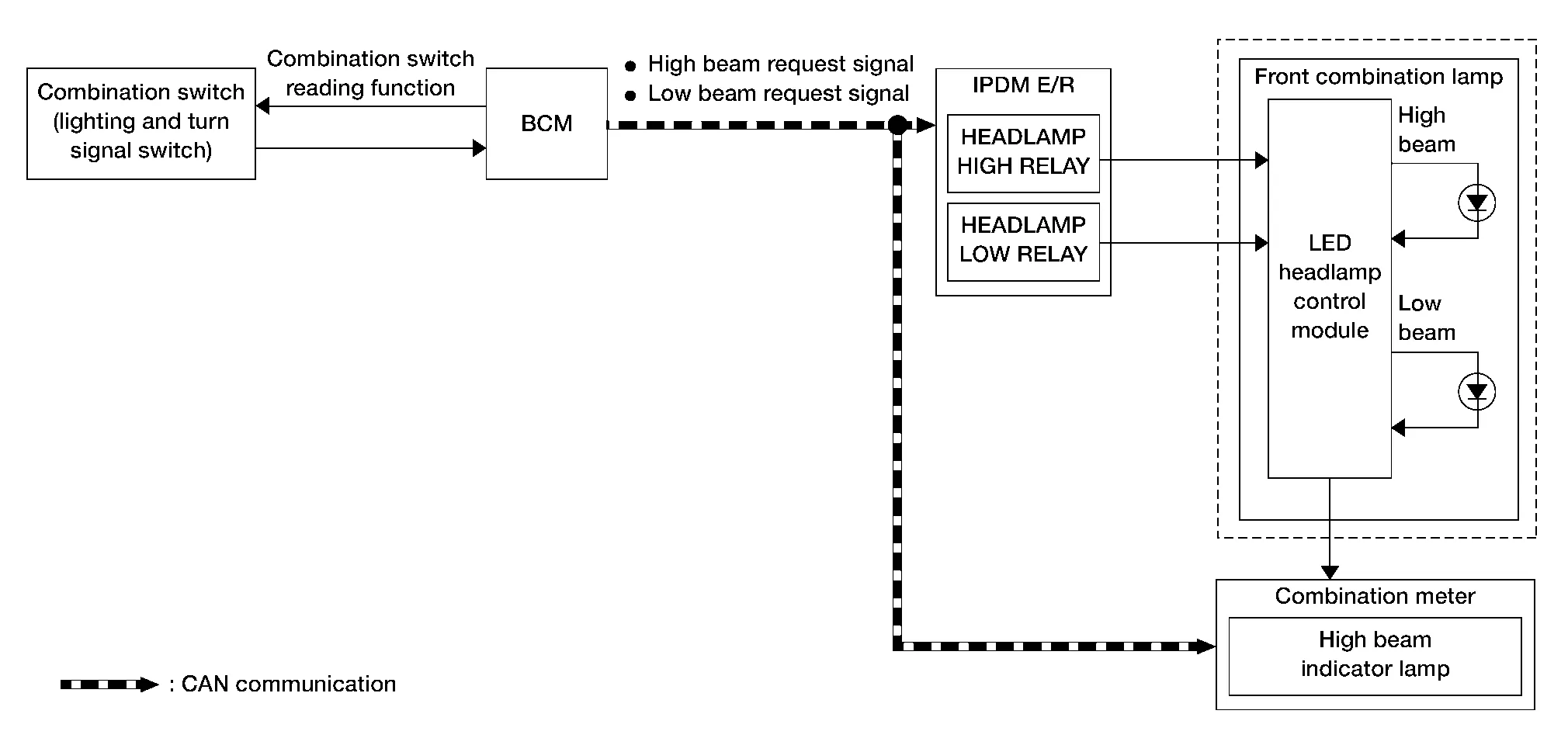

SYSTEM DIAGRAM
Signal transmission function list
| Signal name | Input | Output | Description |
|---|---|---|---|
| Combination switch signal | Combination switch (lighting and turn signal switch) | BCM | Transmits the combination switch signal to the BCM. |
| High beam request signal | BCM |
|
Transmits high beam request signal via CAN communication. |
| Low beam request signal | BCM | IPDM E/R (CAN) | Transmits low beam request signal via CAN communication. |
| Headlamp warning signal | Front combination lamp | Combination meter | Transmits the headlamp warning signal to the combination meter. |
OUTLINE
Headlamp is controlled by combination switch reading function, headlamp control function of BCM, and relay control function of IPDM E/R.
HEADLAMP (LO) OPERATION
-
BCM detects the combination switch (lighting and turn signal switch) condition with the combination switch reading function.
-
BCM transmits the low beam request signal to IPDM E/R and the combination meter via CAN communication according to the headlamp (LO) ON condition.
Headlamp (LO) ON condition:
-
Lighting switch 2ND
-
Lighting switch AUTO with the ignition switch ON (Only when the illumination judgment by auto light system is ON. For details, refer to System Description).
-
Lighting switch PASS
-
-
IPDM E/R turns the integrated headlamp low relay ON according to low beam request signal and supplies power supply to LED headlamp control module.
-
LED headlamp control module turns the headlamp (LO) ON according to the power supply from IPDM E/R.
HEADLAMP (HI) OPERATION
-
BCM transmits the high beam request signal to IPDM E/R and the combination meter via CAN communication according to the headlamp (HI) ON condition.
Headlamp (HI) ON condition:
-
Lighting switch HI with the lighting switch 2ND
-
Lighting switch HI with the lighting switch AUTO and ignition switch ON (Only when the illumination judgment by auto light system is ON and the illumination judgment by high beam assist system is ON. For details, refer to System Description).
-
Lighting switch PASS
-
-
Combination meter turns the high beam indicator lamp ON according to the high beam request signal.
-
IPDM E/R turns the integrated headlamp high relay ON according to high beam request signal and supplies power supply to LED headlamp control module.
-
LED headlamp control module turns the headlamp (HI) ON according to the power supply from IPDM E/R.
HEADLAMP WARNING OPERATION
Headlamp warning warns the driver that there is a malfunction in LED headlamp system.
