Nissan Murano: Removal and Installation / Hazard Switch

Nissan Murano (Z52) 2015-2024 Service Manual / Driver Controls / Exterior Lighting System :: Led Headlamp / Removal and Installation / Hazard Switch

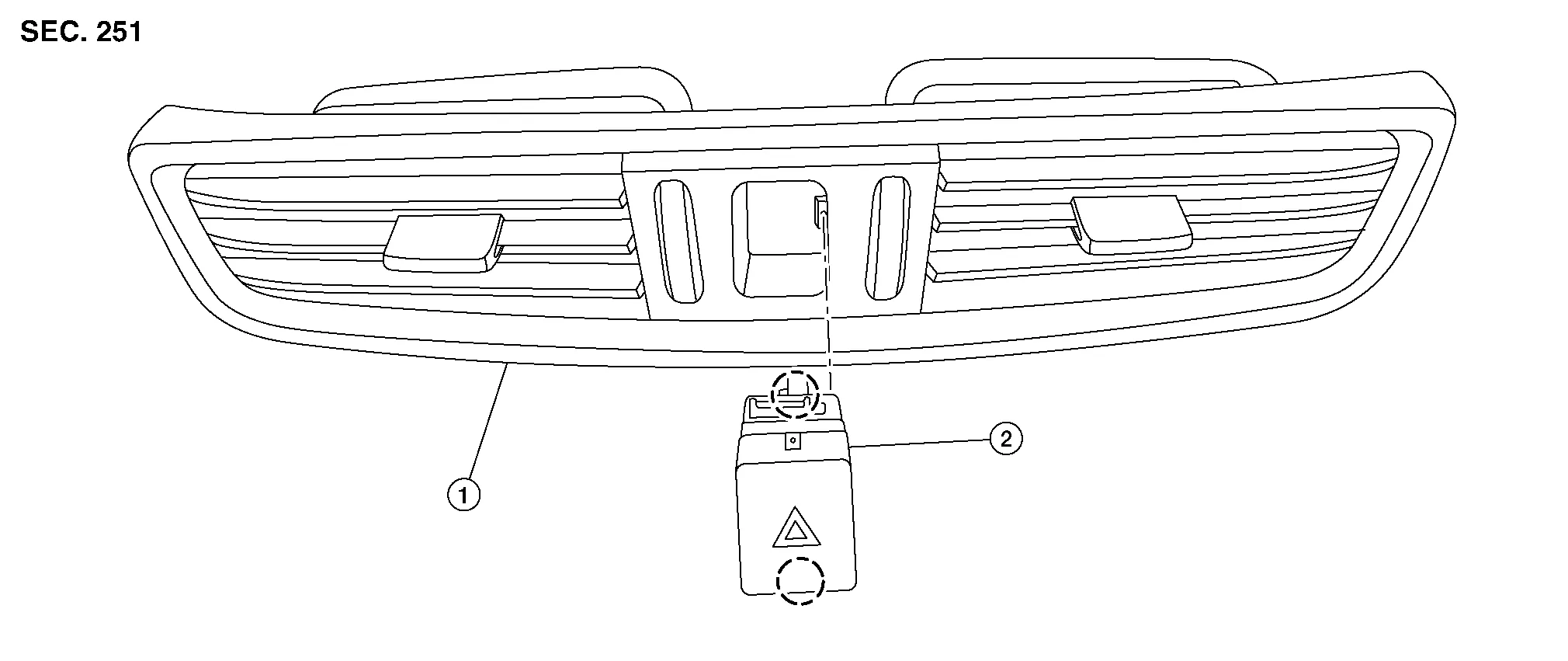

Exploded View

1. Center ventilator grille 2. Hazard switch Pawl
Removal and Installation

REMOVAL

Remove center ventilator grille. Refer to Removal and Installation.

Release pawls and remove hazard switch.

INSTALLATION

Installation is in the reverse order of removal.
