Nissan Murano: Removal and Installation / Combination Switch

Nissan Murano (Z52) 2015-2024 Service Manual / Driver Controls / Exterior Lighting System :: Led Headlamp / Removal and Installation / Combination Switch

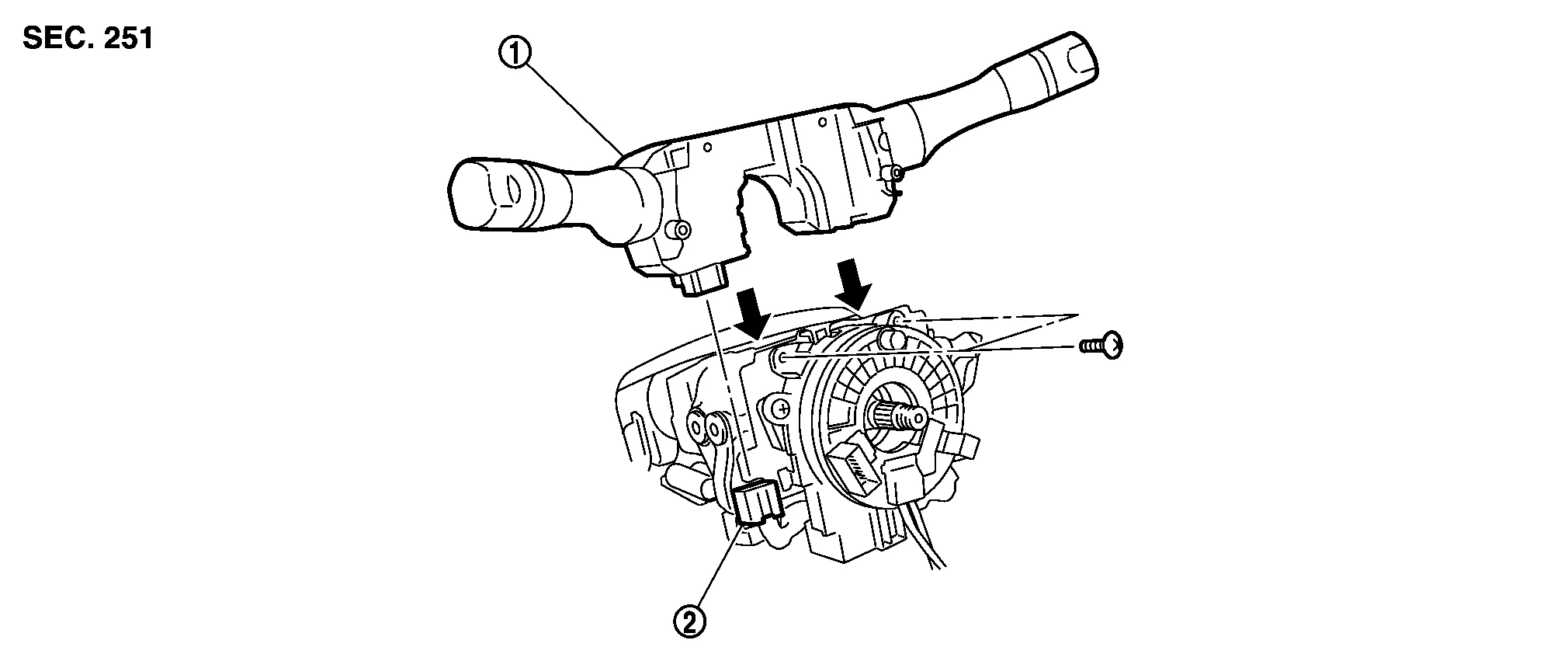

Exploded View

Combination switch

Combination switch harness connector

Removal and Installation

REMOVAL

Disconnect both the negative and positive battery terminals, then wait at least three minutes. Refer to Exploded View.

Remove the steering column covers. Refer to Removal and Installation.

Remove the combination switch screws.

Disconnect the harness connector from the combination switch and remove.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

After the work is completed, make sure no system malfunction is detected by air bag warning lamp.

In case a malfunction is detected by the air bag warning lamp, reset with the self-diagnosis function and delete the memory with CONSULT.

If a malfunction is still detected after the above operation, perform self-diagnosis to repair malfunctions. Refer to SRS Final Check.
