Nissan Murano: Removal and Installation / Front Auxiliary Input Jacks

Nissan Murano (Z52) 2015-2024 Service Manual / Driver Information & Multimedia / Audio, Visual & Navigation System :: Display Audio System - With 8" Color Display / Removal and Installation / Front Auxiliary Input Jacks

Removal and Installation

REMOVAL

Remove shift selector finisher. Refer to Exploded View.

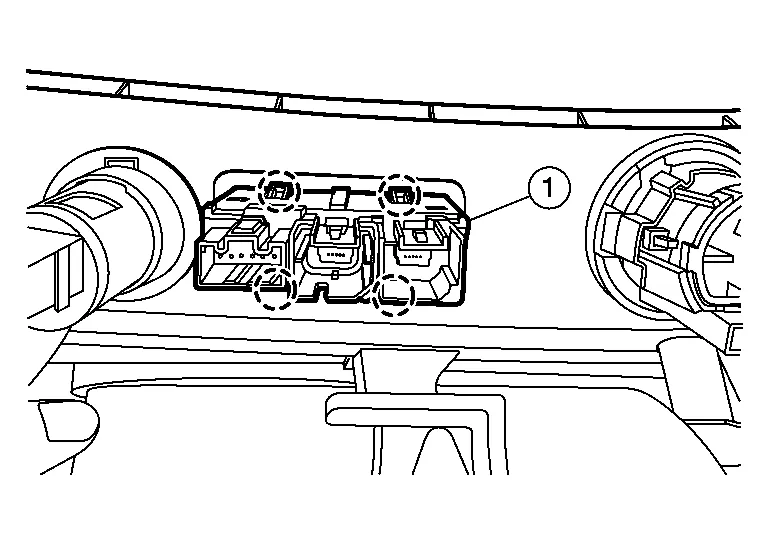

Release pawls and remove front auxiliary input jacks (1).

: Pawl

INSTALLATION

Installation is in the reverse order of removal.
