Nissan Murano: Engine / Exhaust System :: Periodic Maintenance. Exhaust System

Nissan Murano (Z52) 2015-2024 Service Manual / Engine / Exhaust System :: Periodic Maintenance. Exhaust System

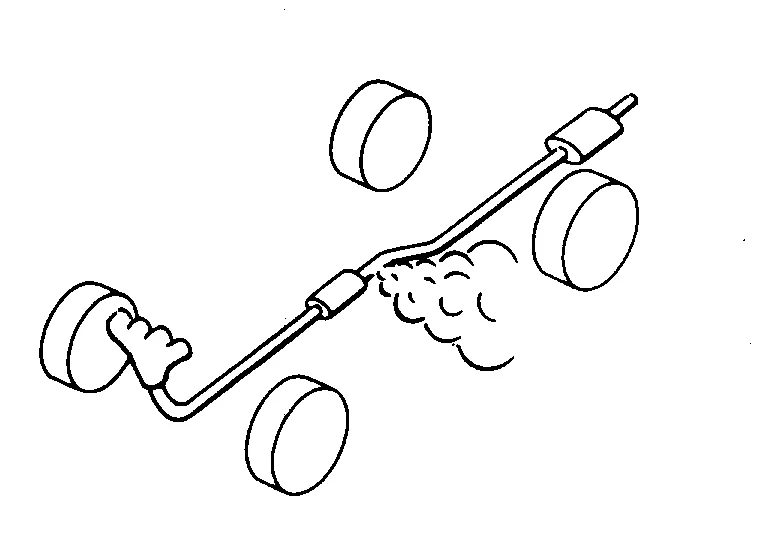

Checking Exhaust System

Check exhaust pipes, muffler and mounts for improper attachment, leaks, cracks, damage or deterioration. Repair or replace as necessary.

Exhaust System :: Precaution. Precautions

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT PRE-TENSIONER" The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain types of collisions...

Exhaust System :: Removal and Installation. Exhaust System

Exploded View 1. Center exhaust tube 2. Front exhaust tube 3. Ring gasket 4. Front exhaust tube bracket 5. Gasket 6. Mounting rubber 7...
