Nissan Murano: Fuel System :: Removal and Installation / Evap Canister Purge Volume Control Solenoid Valve

Nissan Murano (Z52) 2015-2024 Service Manual / Engine / Fuel System :: Removal and Installation / Evap Canister Purge Volume Control Solenoid Valve

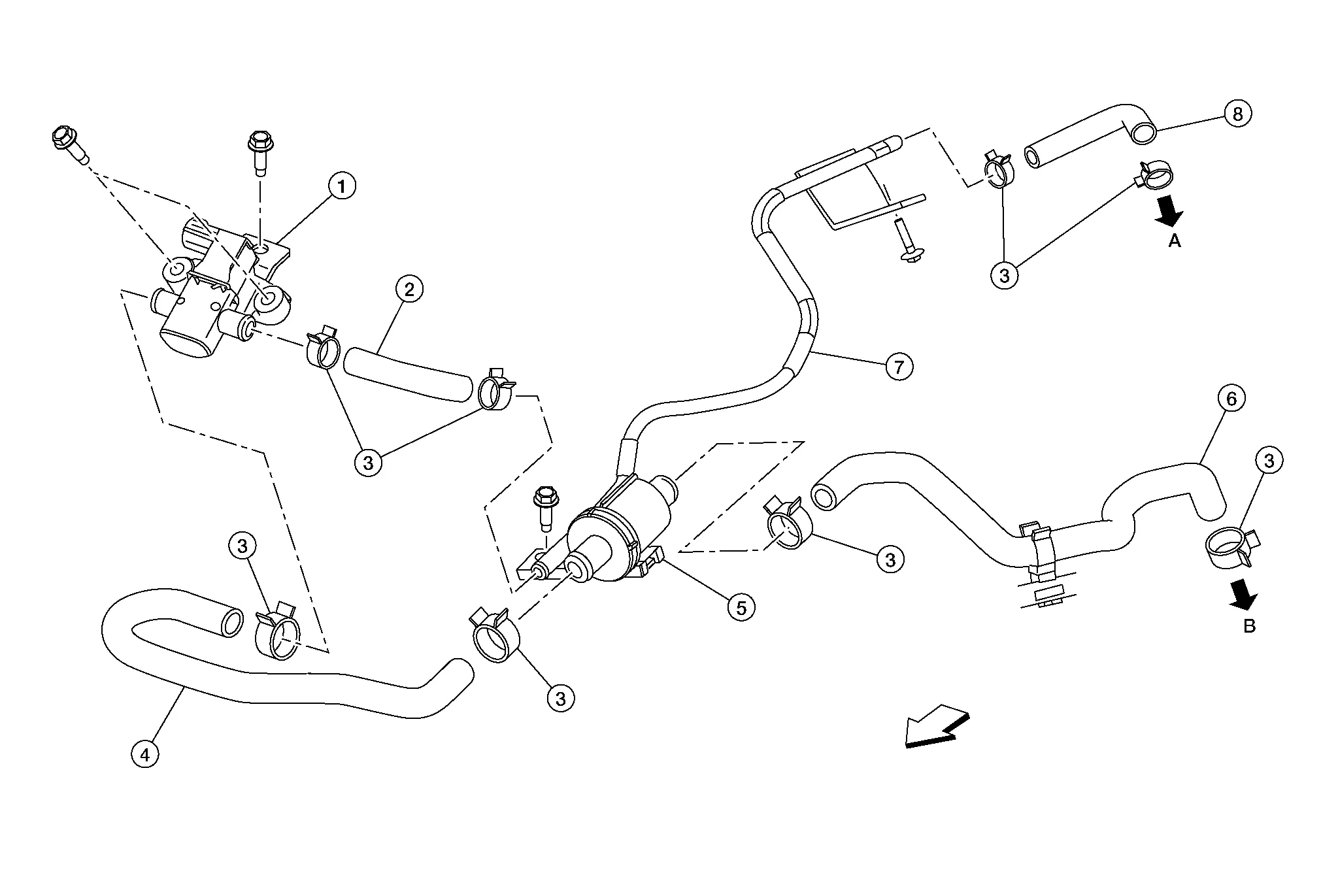

Exploded View

1. EVAP canister purge volume control solenoid valve 2. EVAP hose C 3. Clamp
4. EVAP hose B 5. Vacuum delay valve 6. EVAP hose A
7. EVAP hose D 8. EVAP hose E A. To intake manifold collector. Refer to Exploded View.
B. To EVAP canister. Refer to Exploded View. Front
Removal and Installation

REMOVAL

Disconnect harness connector from EVAP canister purge volume control solenoid valve.

Disconnect EVAP hose B and EVAP hose C. Refer to Exploded View.

Remove bolts and EVAP canister purge volume control solenoid valve.

INSTALLATION

Installation is in the reverse order of removal.

NOTE:

  • Install hose clamps with marks and tabs facing up.

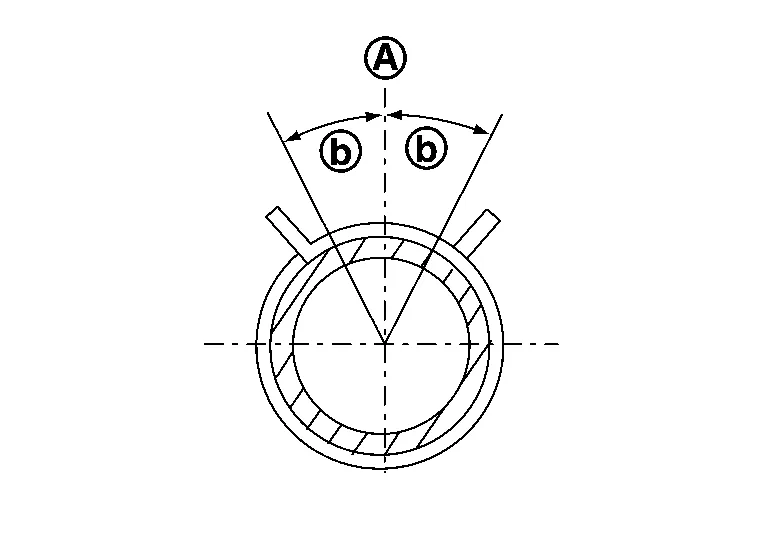

  • Angle (b) created by the hose clamp tab and specified line (A) must be within ±15° as shown in the figure.
