Nissan Murano: Fuel System :: Removal and Installation / Evap Canister Control Pressure Sensor

Nissan Murano (Z52) 2015-2024 Service Manual / Engine / Fuel System :: Removal and Installation / Evap Canister Control Pressure Sensor

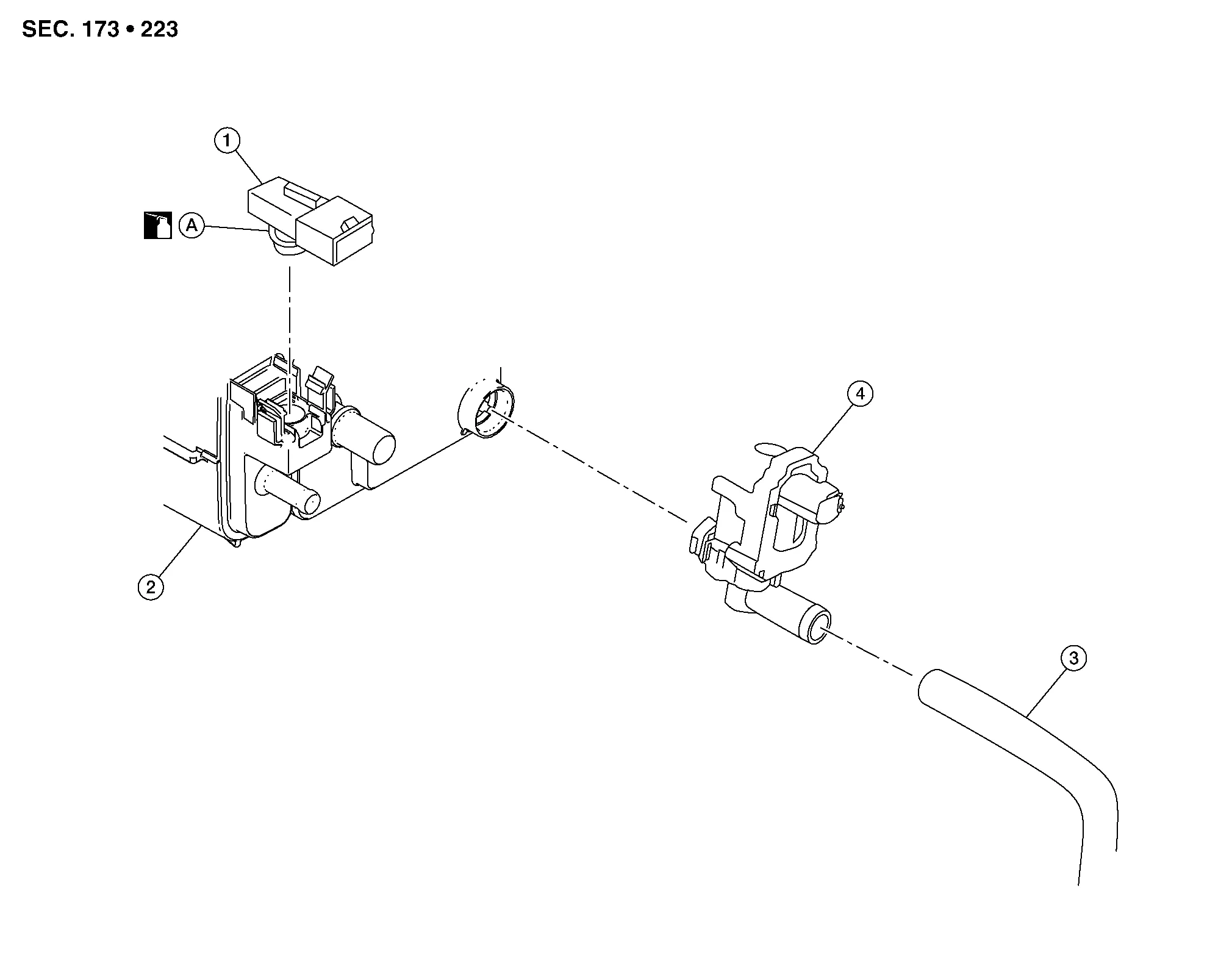

Exploded View

1.	EVAP canister control pressure sensor	2.	EVAP canister	3.	EVAP canister purge hose
4.	EVAP canister vent control valve	A.	O-ring

Removal and Installation

REMOVAL

Remove EVAP canister. Refer to Removal and Installation.

Remove EVAP canister control pressure sensor.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Do not reuse O-ring when installing new EVAP canister control pressure sensor. The EVAP canister control pressure sensor and O-ring are serviced as an assembly.
