Nissan Murano: Defogger :: Removal and Installation / Condenser

Nissan Murano (Z52) 2015-2024 Service Manual / Driver Controls / Defogger :: Removal and Installation / Condenser

Removal and Installation

REMOVAL

Remove the back door lower finisher. Refer to Removal and Installation.

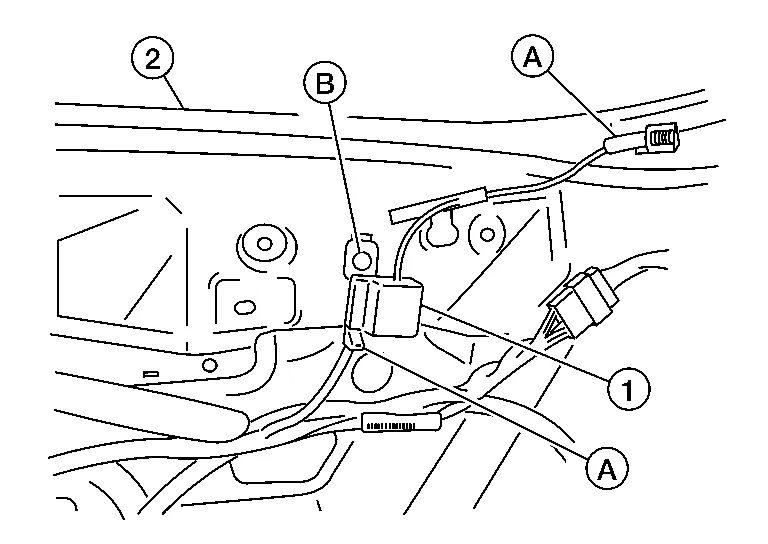

Disconnect the harness connectors (A) from the condenser (1).

Remove the bolt (B) and the condenser from the back door (2).

INSTALLATION

Installation is in the reverse order of removal.
