Nissan Murano: Heater & Air Conditioning System :: Removal and Installation / Compressor

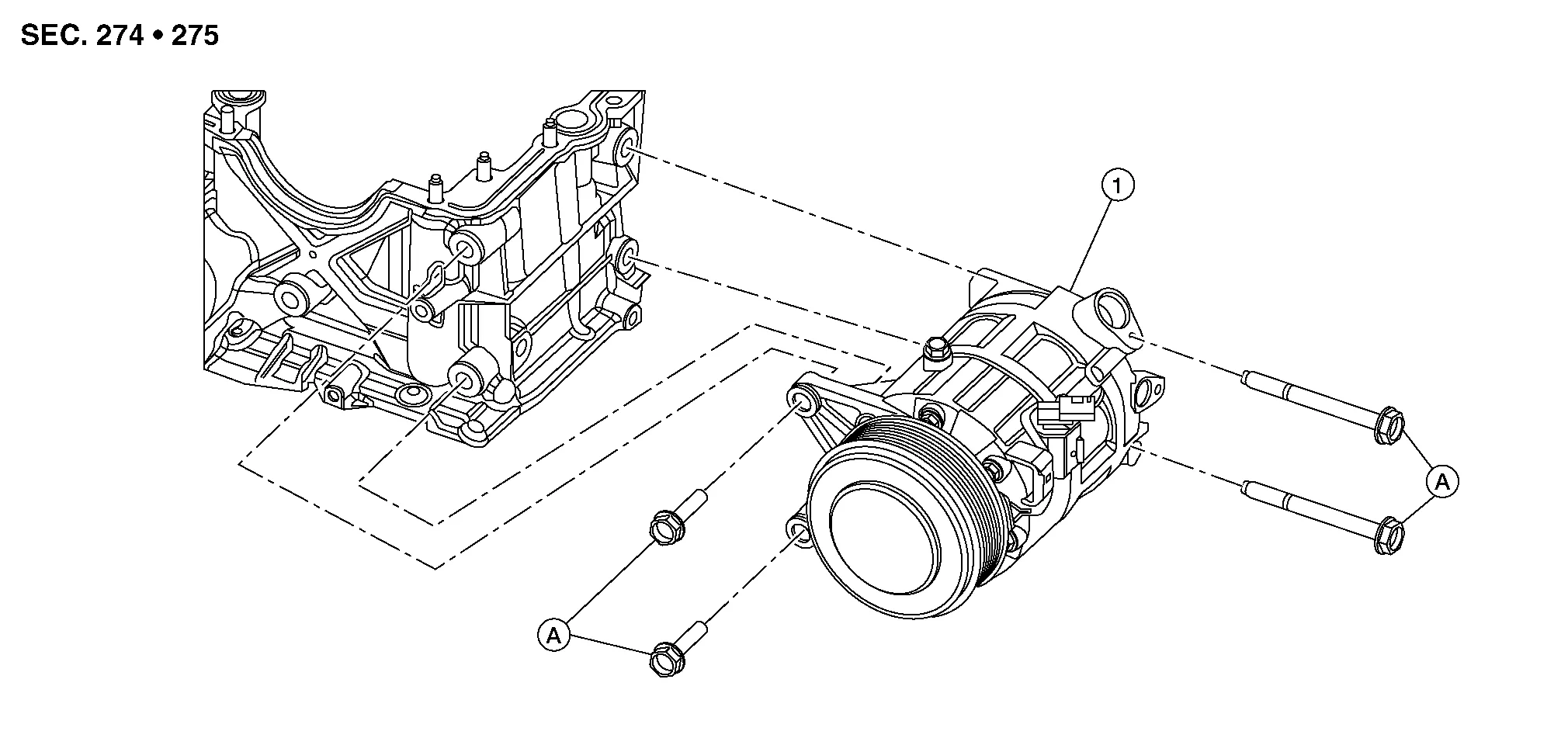

Compressor
| 1. | Compressor | A. | Refer to Removal and Installation. |

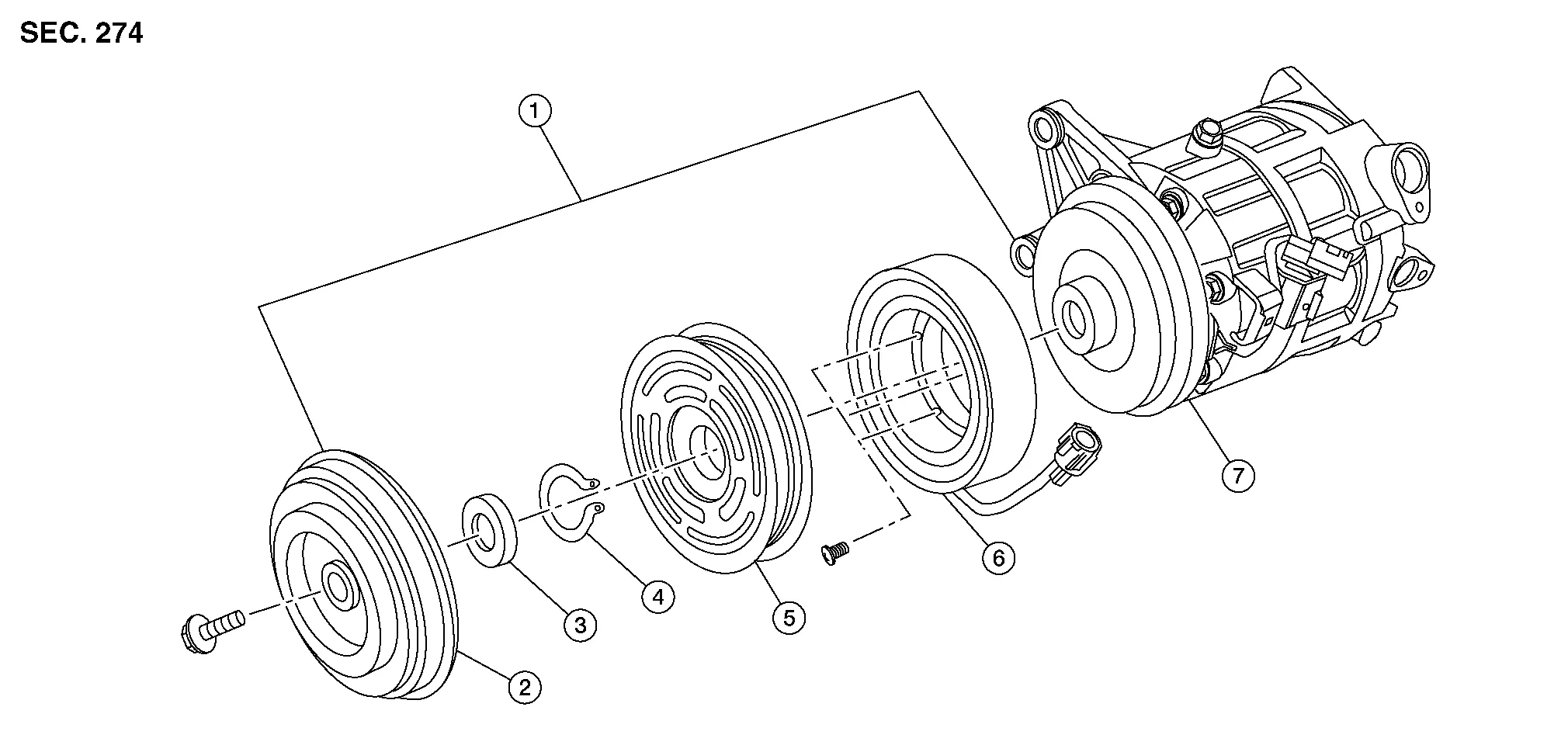

Magnet Clutch Assembly
| 1. | Magnet clutch assembly | 2. | Clutch disc | 3. | Shim |
| 4. | Snap ring | 5. | Pulley | 6. | Magnet coil |
| 7. | Compressor |
Compressor
Removal and Installation
REMOVALDischarge the refrigerant. Refer to Recycle Refrigerant.
Partially remove the front edge of the front fender protector (RH)...
