Nissan Murano: System Description / Component Parts. Intelligent Around View Monitor with Display Audio System

Nissan Murano (Z52) 2015-2024 Service Manual / Driver Information & Multimedia / Audio, Visual & Navigation System :: Intelligent Around View Monitor with Display Audio System / System Description / Component Parts. Intelligent Around View Monitor with Display Audio System

Component Parts Location

No. Component Function
1. Rear camera Refer to Rear Camera.
2. Door mirror RH (side camera) Refer to Side Cameras.
3. ABS actuator and electric unit (Control unit)

Provides around view monitor control unit with wheel speed signal via CAN communication.

Refer to Component Parts Location for detailed component location.
4. Front camera Refer to Front Camera .
5. TCM (Transmission Control Module)

Provides around view monitor control unit with transmission range indication signal via CAN communication.

Refer to Component Parts Location for detailed component location.
6. IPDM E/R (Intelligent Power Distribution Module Engine Room)

Provides around view monitor control unit with battery voltage signal via CAN communication.

Refer to Component Parts Location for detailed component location.
7. Door mirror LH (side camera) Refer to Side Cameras.
8. Sonar control unit Refer to Sonar Control Unit.
9. Audio unit Refer to Audio Unit.
10. BCM (Body Control Module) Refer to BCM.
11. Combination meter Refer to Combination Meter.
12. Steering angle sensor Refer to Steering Angle Sensor.
13. Around View® Monitor control unit Refer to Around View Monitor Control Unit.
AV Control Unit

  • A 8-inch color display with multi-touch control, an AM/FM HD electronic tuner radio with RDS, CD drive, audio amplifier and camera controller are integrated into the audio unit.

  • The 8-inch color display is a high resolution monitor that includes touch panel functions.

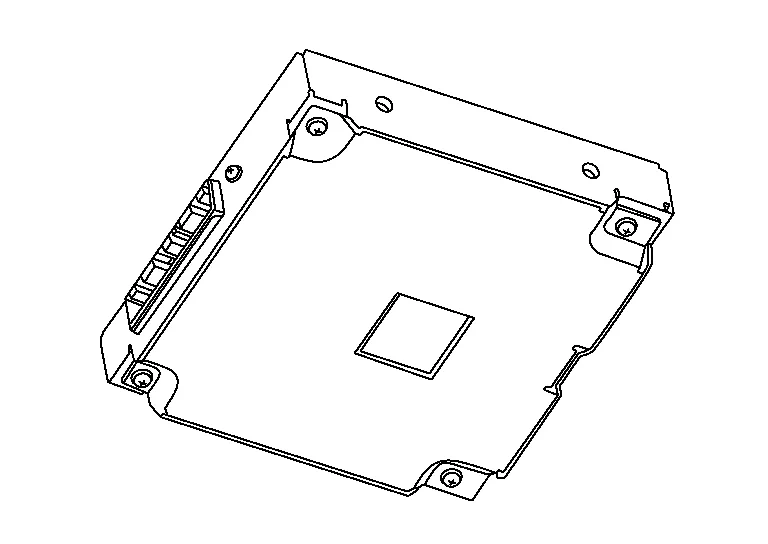

Around View Monitor Control Unit

  • The around view monitor control unit is installed behind the front auxiliary input jacks.

  • Nissan Murano Vehicle width guide lines, predicted course line, vehicle front guiding line and vehicle side line, and vehicle icon are displayed and combined with camera images.

Rear View Camera

  • The rear camera is installed next to the license plate lamp.

  • Power is supplied from the around view monitor control unit.

Side Cameras

  • The side cameras are installed in the door mirrors.

  • Power is supplied from the around view monitor control unit.

Front Camera

  • The front camera is installed in the front grille.

  • Power is supplied from the around view monitor control unit.

Combination Meter

Combination meter sends the steering switch signals to the around view control monitor via AV communication.

BCM

  • BCM sends the reverse signal to the around view monitor control unit and audio unit.

  • Provides around view monitor control unit with door switches state signal via CAN communication.

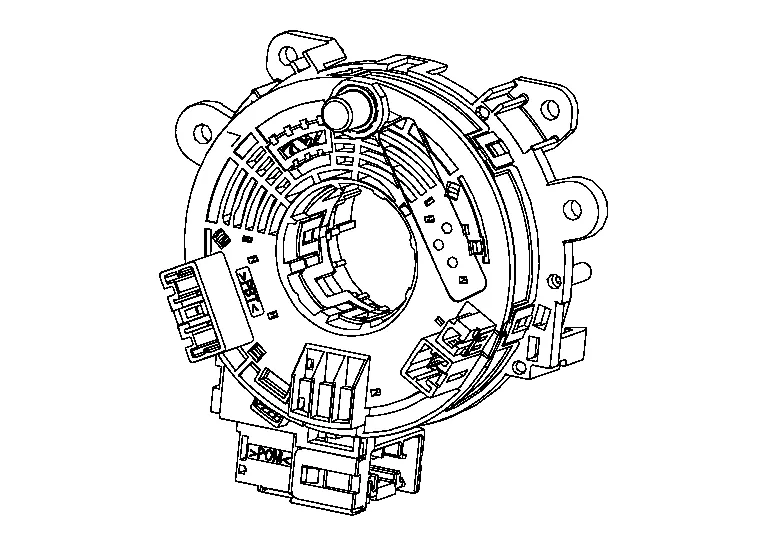

Steering Angle Sensor

  • Steering sensor is installed to the spiral cable.

  • Steering angle sends the steering signal necessary for predictive course line via CAN communication.

    System Description

    ..

    System

    System Description SYSTEM DIAGRAMAround View Monitor Control Unit Input Signal (CAN Communication)Transmit unitSignal name ABS actuator and electrical unit (Control unit) Wheel speed signal Audio unit Camera switch signal BCM Door switches state signal Combination meter Setting change request signal Hand brake switch signal IPDM E/R Battery voltage signal Sonar control unit Sonar detection display request signal Steering angle sensor Steering angle signal TCM Transmission range indication signal DESCRIPTION This system is equipped with wide-angle cameras on the front, rear and right and left door mirrors...
