Nissan Murano: Removal and Installation / Optical Sensor

Nissan Murano (Z52) 2015-2024 Service Manual / Driver Controls / Exterior Lighting System :: Led Headlamp / Removal and Installation / Optical Sensor

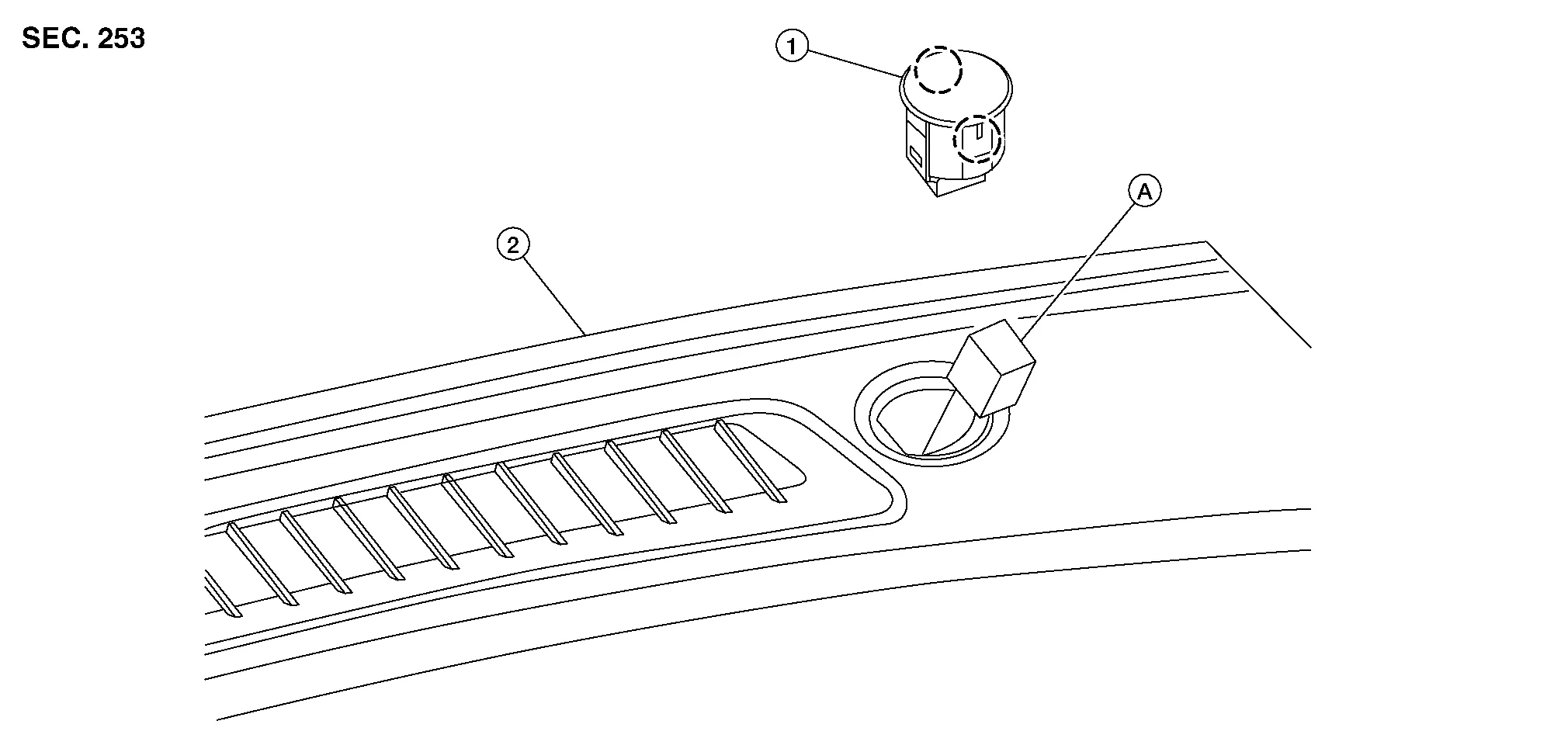

Exploded View

1. Optical sensor 2. Defroster grille A. Harness connector
Pawl
Removal and Installation

REMOVAL

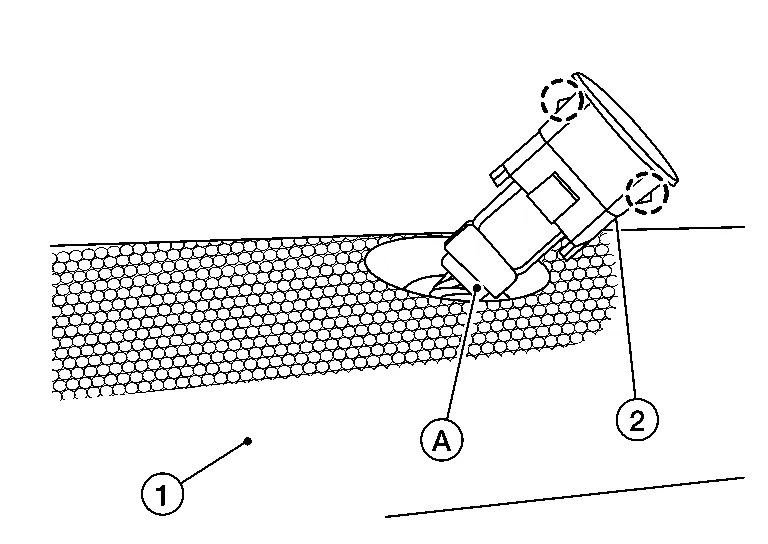

Using a suitable tool, release pawls and remove optical sensor (2) from defroster grille (1).

: Pawl

Disconnect harness connector (A) from optical sensor.

INSTALLATION

Installation is in the reverse order of removal.
