Removal and Installation

REMOVAL

NOTE:

The illumination control switch and trip reset switch are serviced as an assembly.

Remove instrument lower panel LH (1). Refer to Removal and Installation.

Remove warning buzzer. Refer to Removal and Installation.

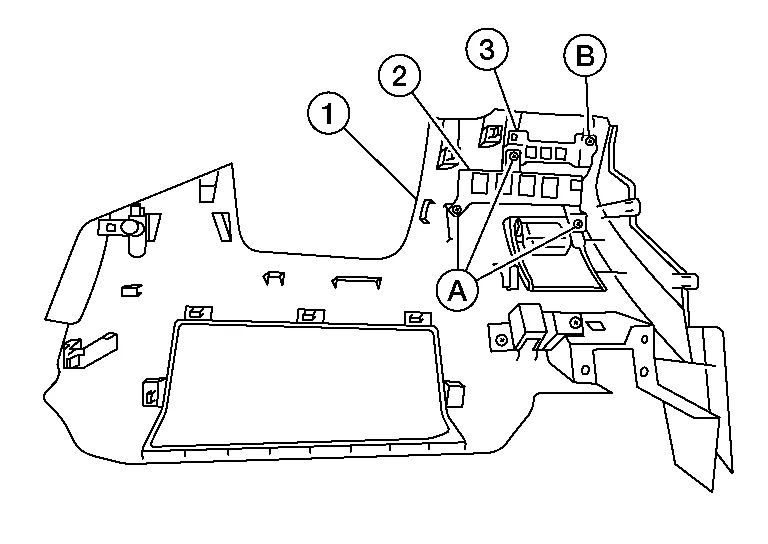

Remove screws (A) then remove middle switch carrier (2).

Remove screw (B) then disconnect harness connector and remove meter control switch (3).

INSTALLATION

Installation is in the reverse order of removal.
