Removal and Installation

WARNING:

Before servicing the SRS, turn ignition switch OFF, disconnect both battery terminals then wait at least three minutes.

Always work from the side of air bag module. Do not work in front of it.

Do not use air tools or electric tools for servicing.

REMOVAL

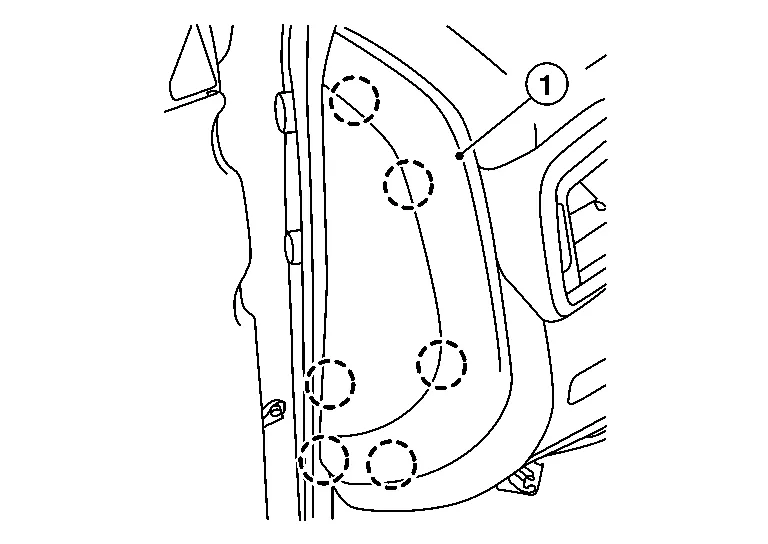

Release instrument side finisher (LH) (1) pawls using a suitable tool and remove.

: Pawl

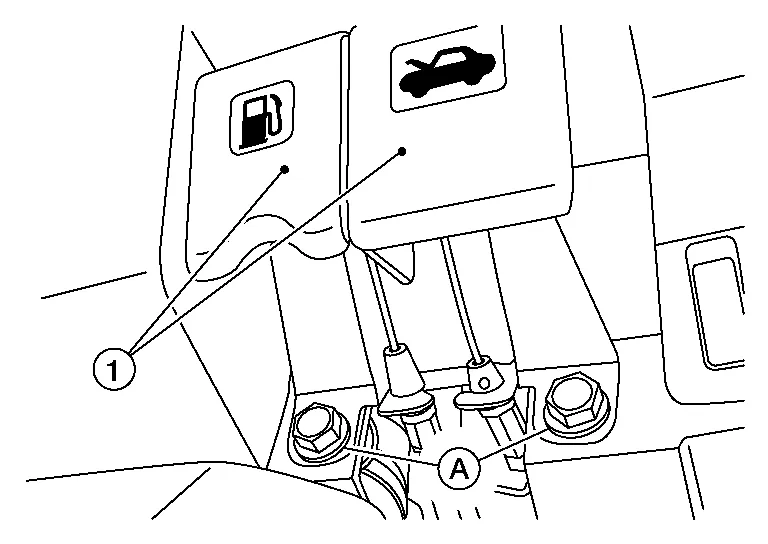

Remove bolts (A) and fuel filler lid/hood lock release handle (1) from instrument lower panel LH.

Release clips attached to left knee air bag module.

Disconnect aspirator hose from instrument lower panel LH.

Release the clips and pawls using a suitable tool, disconnect the harness connectors and remove instrument lower panel LH (1).

: Clip

: Metal clip

INSTALLATION

Installation is in the reverse order of removal.
