Nissan Murano: Standard maintenance / Chassis & body maintenance

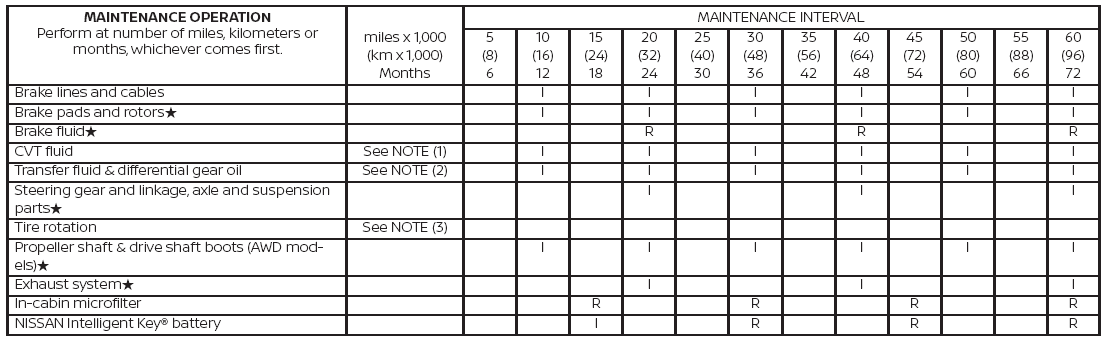

Abbreviations: I = Inspect and correct or replace as necessary, R =
Replace,


NOTE:
Maintenance items with “ ” should be performed more frequently
according to “Maintenance under severe driving conditions”.
(1) If towing a trailer, using a camper or a car-top carrier or driving
on rough or muddy roads, inspect CVT fluid deterioration every
60,000 miles (96,000 km), then change CVT fluid if necessary.And if the
inspection is not performed, change (not just inspect) CVT
fluid every 60,000 miles (96,000 km). It is recommended that you visit a NISSAN
dealer for this service.
(2) If towing a trailer, using a camper or a car-top, or driving on
rough or muddy roads, change (not just inspect) oil at every
20,000 miles (32,000 km) or 24 months.
(3) For additional information on tire rotation, refer to “General
maintenance” in this section.
Abbreviations: I = Inspect and correct or replace as necessary, R =
Replace
NOTE:

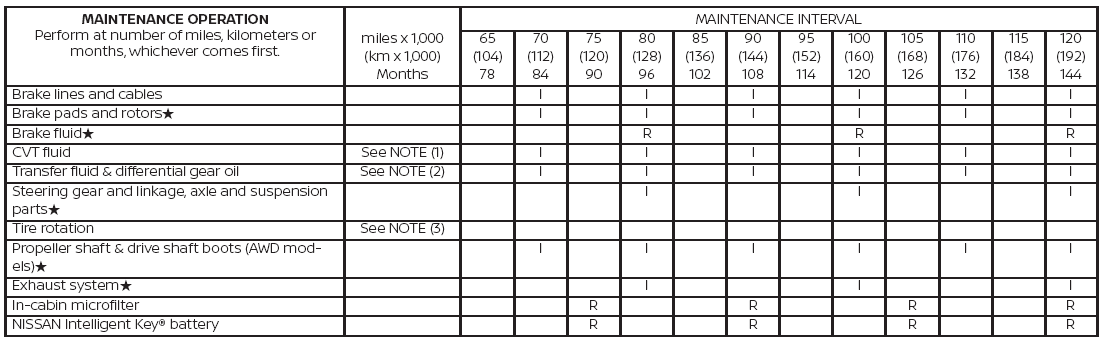

(1) After 40,000 miles (64,000 km) or 48 months, inspect every 10,000
miles (16,000 km) or 12 months...
The maintenance intervals shown on the
preceding pages are for normal operating
conditions. If the vehicle is mainly operated
under severe driving conditions as shown
below, more frequent maintenance must
be performed on the following items as
shown in the table...
Other information:
WARNING
Never rely solely on the hill start assist
system to prevent the vehicle from
moving backward on a hill. Always
drive carefully and attentively. Depress
the brake pedal when the vehicle
is stopped on a steep hill. Be especially
careful when stopped on a hill
on frozen or muddy roads...
System Description
SYSTEM DIAGRAMTCU Input Signal (CAN Communication)Transmit unitSignal name
Air bag diagnosis sensor unit
Air bag crash order signal
ABS actuator and electrical unit (Control unit)
ABS malfunction signal
BCM
Door switches state signal
Combination meter
Nissan Murano Vehicle speed signal
Hand brake switch signal
ECM
Engine RPM signal
MIL lamp signal
IPDM E/R
Anti-theft horn status signal
TCM
Transmission range indication signal
DESCRIPTION
The Telematics system is a system for providing information by connecting the vehicle and the user to the NissanConnect center...
Categories

Your vehicle has two types of security systems:
Vehicle security system
NISSAN Vehicle Immobilizer System
The vehicle security system provides visual
and audible alarm signals if someone
opens the doors, liftgate or the hood when
the system is armed. It is not, however, a
motion detection type system that activates
when a vehicle is moved or when a
vibration occurs.
