Nissan Murano: Heater & Air Conditioning System :: Removal and Installation / Heater Core

Nissan Murano (Z52) 2015-2024 Service Manual / Ventilation, Heater & Air Conditioner / Heater & Air Conditioning System :: Removal and Installation / Heater Core

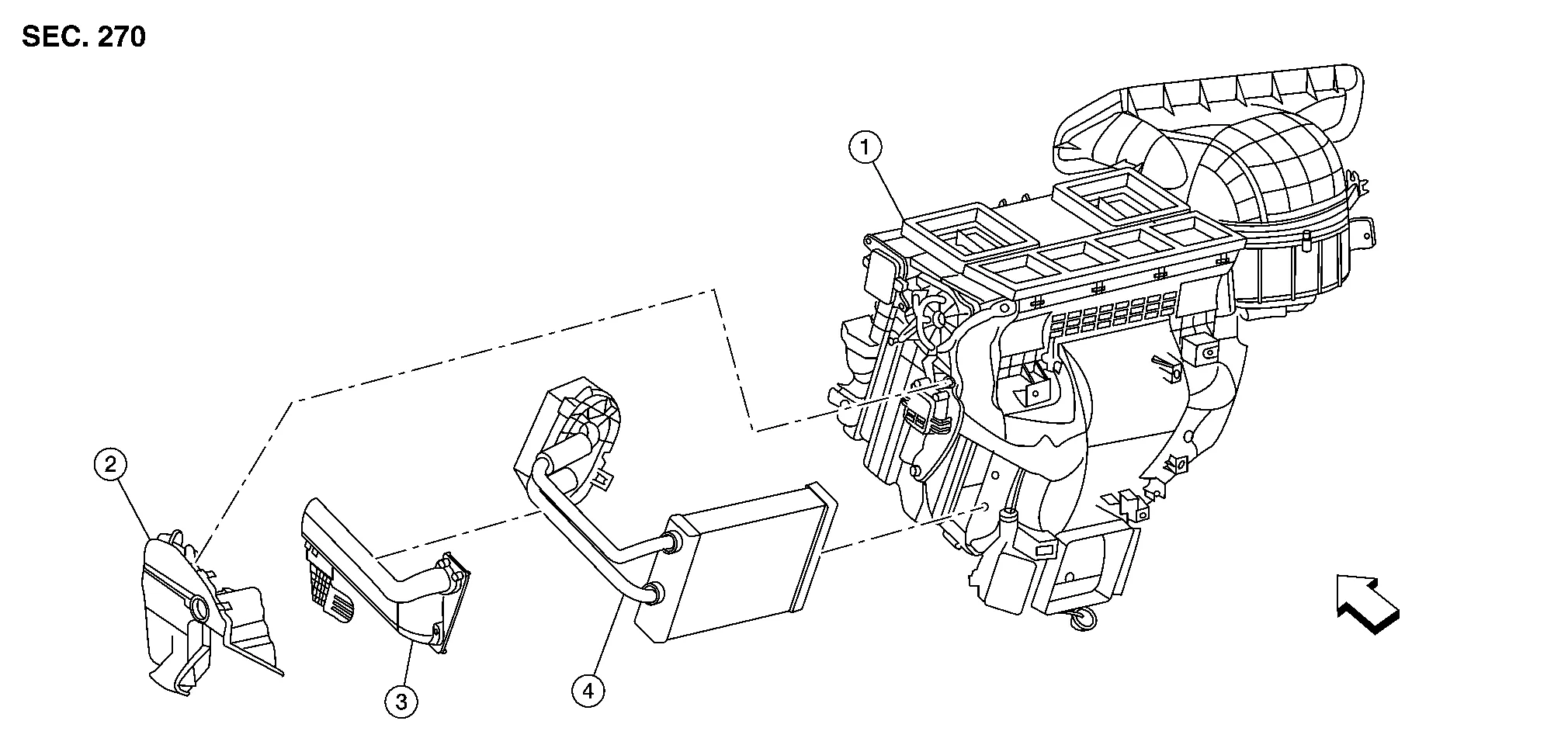

Exploded View

1.	Heating and cooling unit assembly	2.	Front foot duct (LH)	3.	Heater core pipes cover
4.	Heater core		Front

Removal and Installation

REMOVAL

NOTE:

When removing components such as hoses, lines/tubes, etc., cap or plug openings to prevent fluid from spilling.

Discharge the refrigerant. Refer to Recycle Refrigerant.

Drain the engine coolant. Refer to Changing Engine Coolant.

Remove the heating and cooling unit assembly. Refer to Removal and Installation.

Remove the front foot duct (LH). Refer to Exploded View.

Remove the heater core pipe cover. Refer to Exploded View.

Remove the heater core.

INSTALLATION

Installation is in the reverse order of removal.
