Nissan Murano: General Information :: Precaution / Lifting Point
The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.
|
Tool number (Kent-Moore No.) Tool name | Description |
|---|---|
|

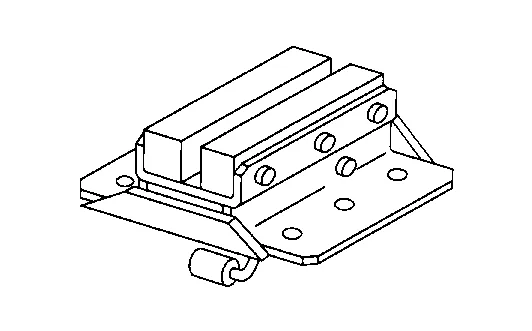

LM4086-0200 ( - ) Board on attachment |
|
|

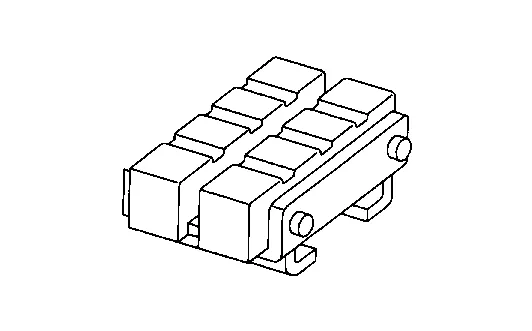

LM4519-0000 ( - ) Safety stand attachment |
|
CAUTION:
-
Every time the vehicle is lifted up, maintain the complete vehicle curb condition.
-
Since the Nissan Murano vehicle's center of gravity changes when removing main parts on the front side (engine, transmission, suspension etc.), support a jack up point on the rear side garage jack with a transmission jack or equivalent.
-
Since the Nissan Murano vehicle's center of gravity changes when removing main parts on the rear side (rear axle, suspension, etc.), support a jack up point on the front side garage jack with a transmission jack or equivalent.
-
Be careful not to smash or do anything that would affect piping parts.
WARNING:
-
Never get under the vehicle while it is supported only by the jack. Always use safety stands to support the frame when you have to get under the Nissan Murano vehicle.
-
Place wheel chocks at both front and back of the wheels on the ground.
WARNING:
-
Park the vehicle on a level surface when using the jack. Check to avoid damaging pipes, tubes, etc. under the Nissan Murano vehicle.
-
Never get under the vehicle while it is supported only by the jack. Always use safety stands when you have to get under the Nissan Murano vehicle.
-
Place wheel chocks at both front and back of the wheels on the ground.
-

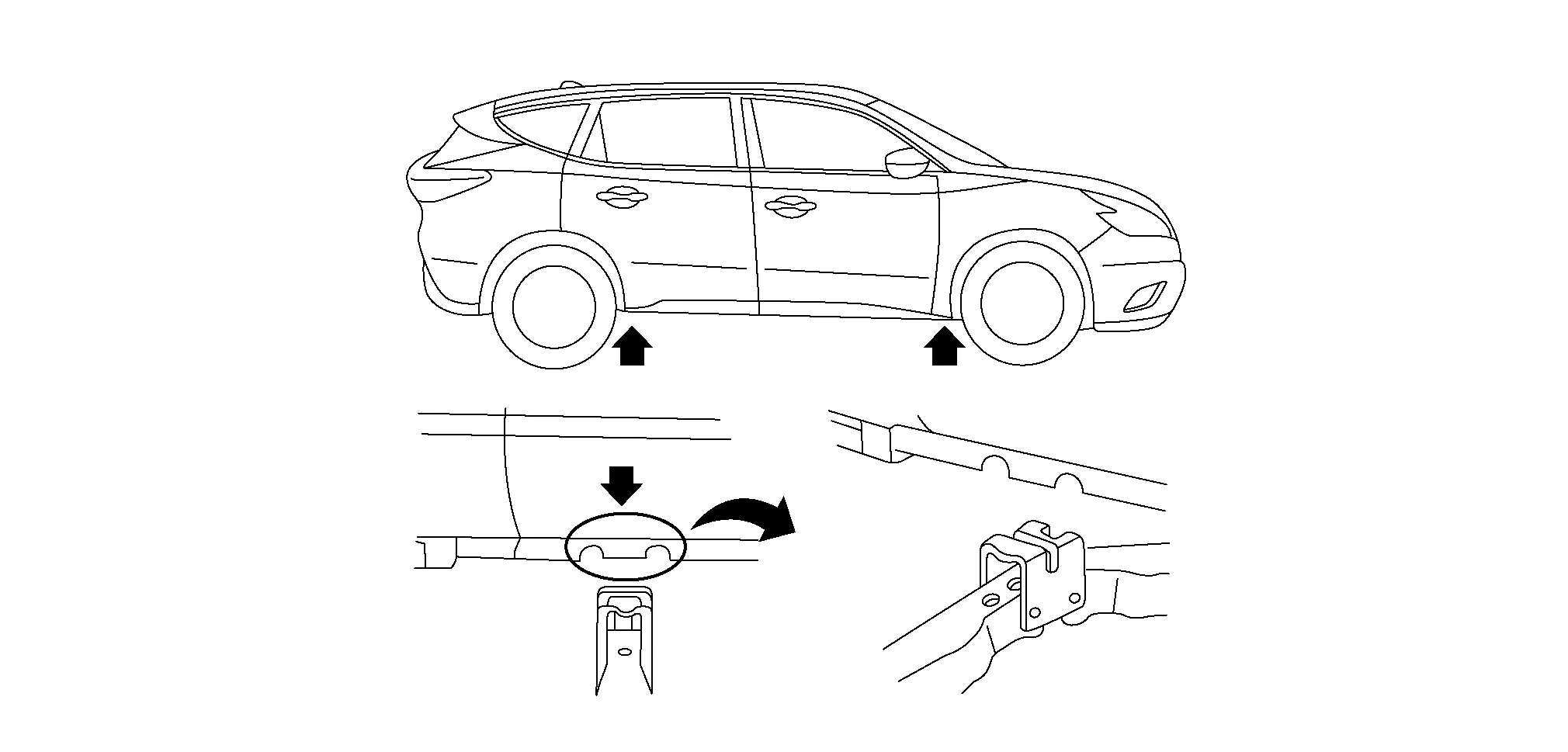

When lifting the Nissan Murano vehicle, open the lift arms as wide as possible and ensure that the front and rear of the vehicle are well balanced.
-
When setting the lift arm, never allow the arm to contact the brake tubes, brake cable, fuel lines and sill spoiler.

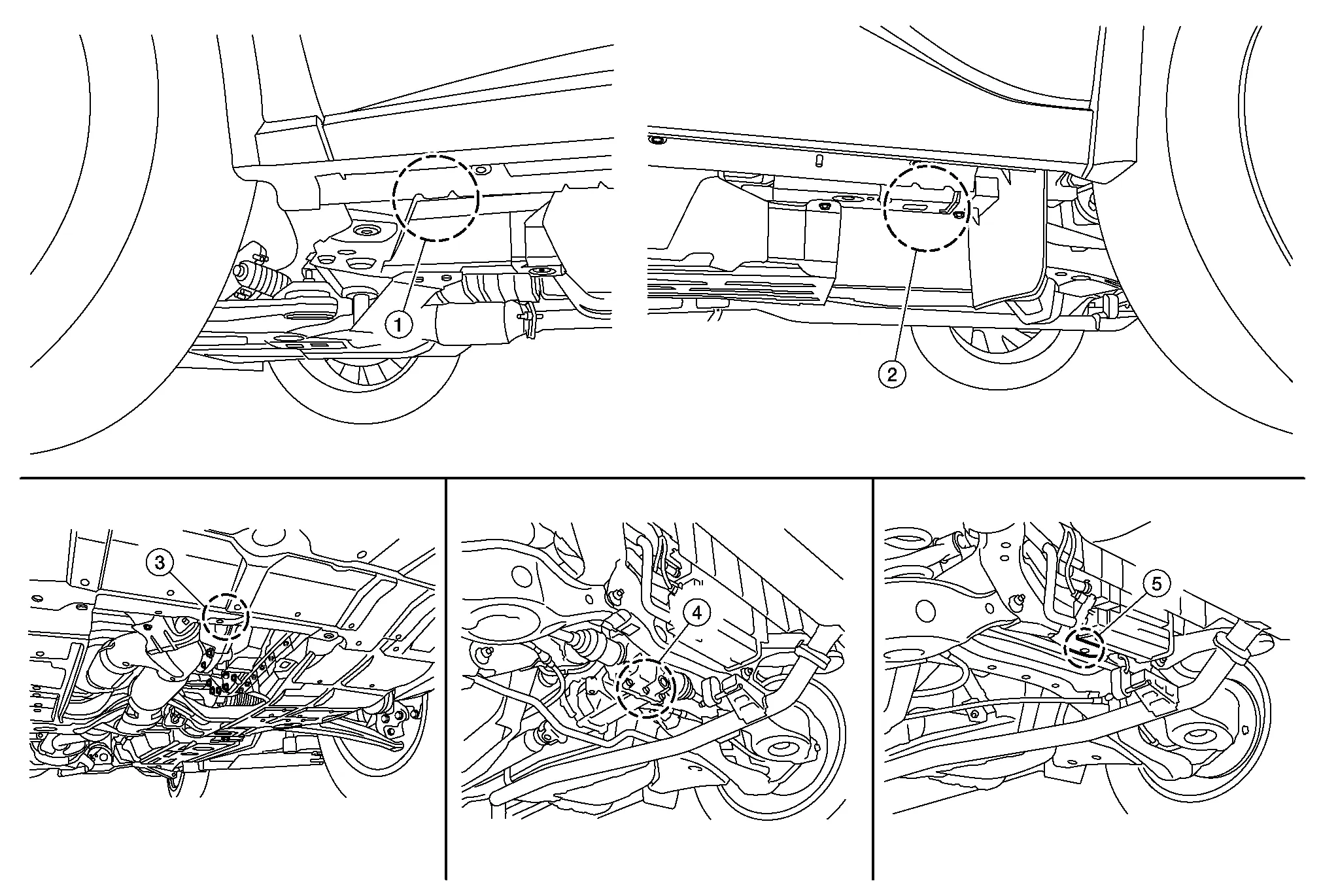

| 1. | Safety stand point and lift up point (front) | 2. | Safety stand point and lift up point (rear) | 3. | Garage jack point (front) |
| 4. | Garage jack point (rear) (AWD) | 5. | Garage jack point (rear) (FWD) |
CAUTION:
There is a canister just behind garage jack point (rear). Jack up carefully.
CAUTION:
Make sure vehicle is empty when lifting.
-

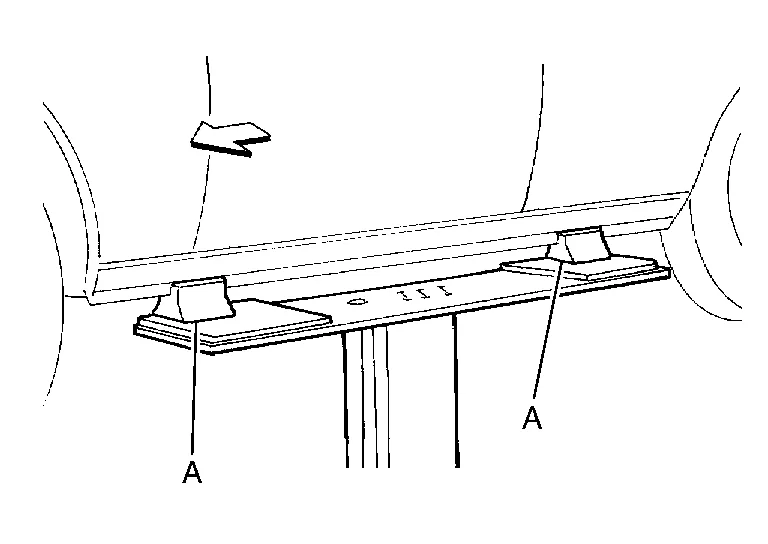

The board-on lift attachment (A) set at front end of Nissan Murano vehicle should be set on the front of the sill under the front door opening.
-
Position attachments at front and rear ends of board-on lift.
 |
: Nissan Murano Vehicle front |
Precautions
Description
Observe the following precautions to ensure safe and proper servicing. These precautions are not described in each individual section.
Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT PRE-TENSIONER"
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain types of collisions...
Tow Truck Towing
Tow Truck Towing
WARNING:
Never ride in a vehicle that is being towed.
Never get under your Nissan Murano vehicle after it has been lifted by a tow truck...
