Removal and Installation

REMOVAL

Remove the front bumper fascia. Refer to Removal and Installation.

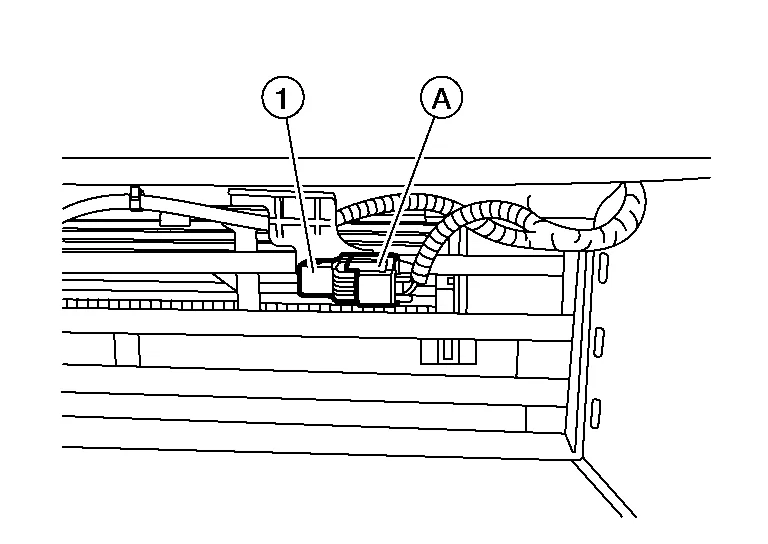

Disconnect the harness connector (A) from the ambient sensor (1).

Release the ambient sensor clip and then remove the ambient sensor.

INSTALLATION

Installation is in the reverse order of removal.
