Nissan Murano: System / Vehicle Security System

System Description

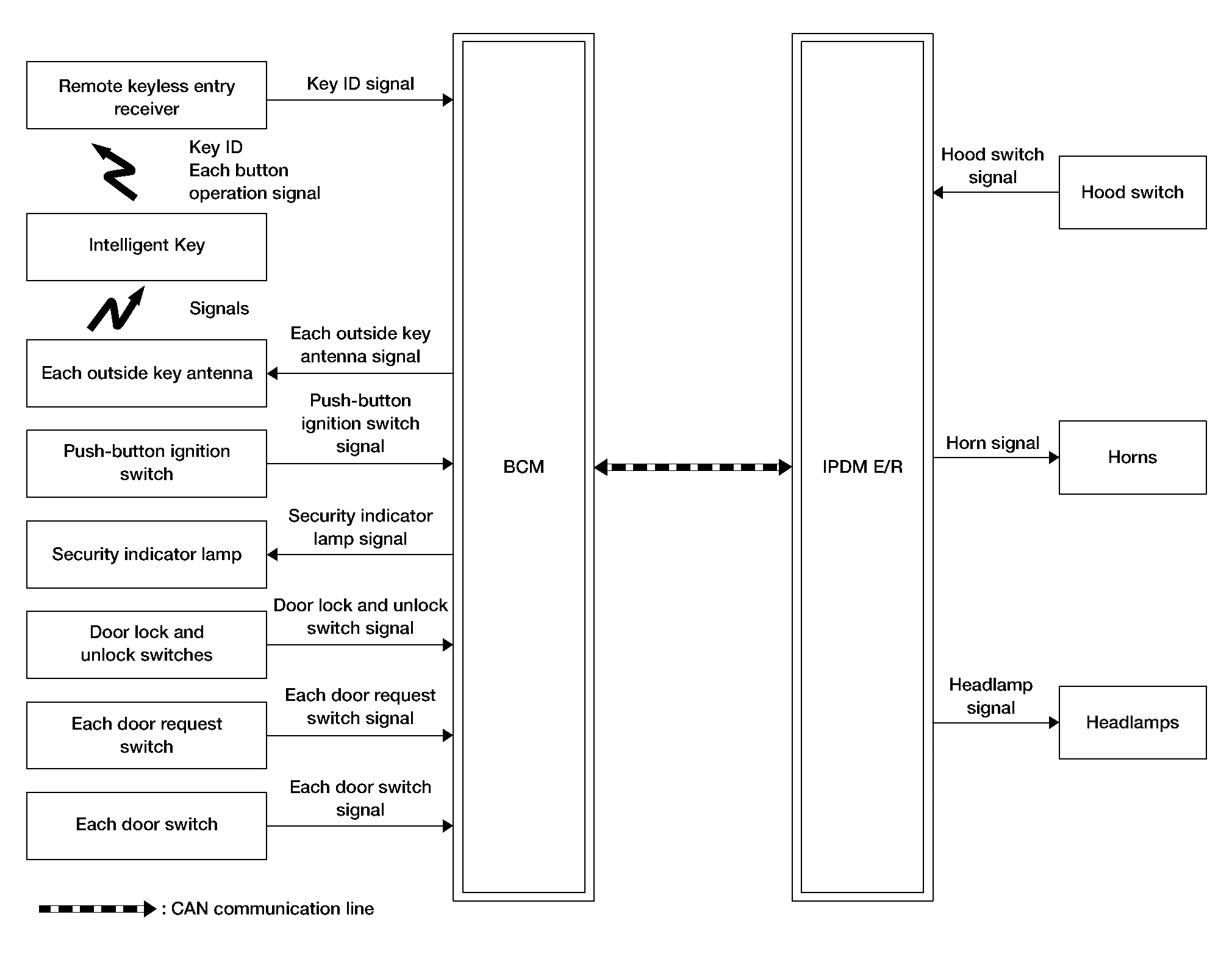

SYSTEM DIAGRAM

INPUT SIGNAL AND OUTPUT SIGNAL CHART

SYSTEM DESCRIPTION

• The vehicle security system has two alarm functions (theft warning alarm and panic alarm) and reduces the possibility of a theft or mischief by activating horns and headlamps intermittently.

• The panic alarm does not start when the theft warning alarm is activating and the panic alarm stops when the theft warning alarm is activated.

  The priority of the functions are as per the following.

  Priority	Function
  1	Theft warning alarm
  2	Panic alarm

THEFT WARNING ALARM

• The theft warning alarm function activates horns and headlamps intermittently when BCM detects that any door or hood is opened by unauthorized means while the system is in the ARMED state.

• Security indicator lamp on combination meter always blinks when power supply position is any position other than ON. Security indicator lamp blinking warns that the Nissan Murano vehicle is equipped with a vehicle security system.

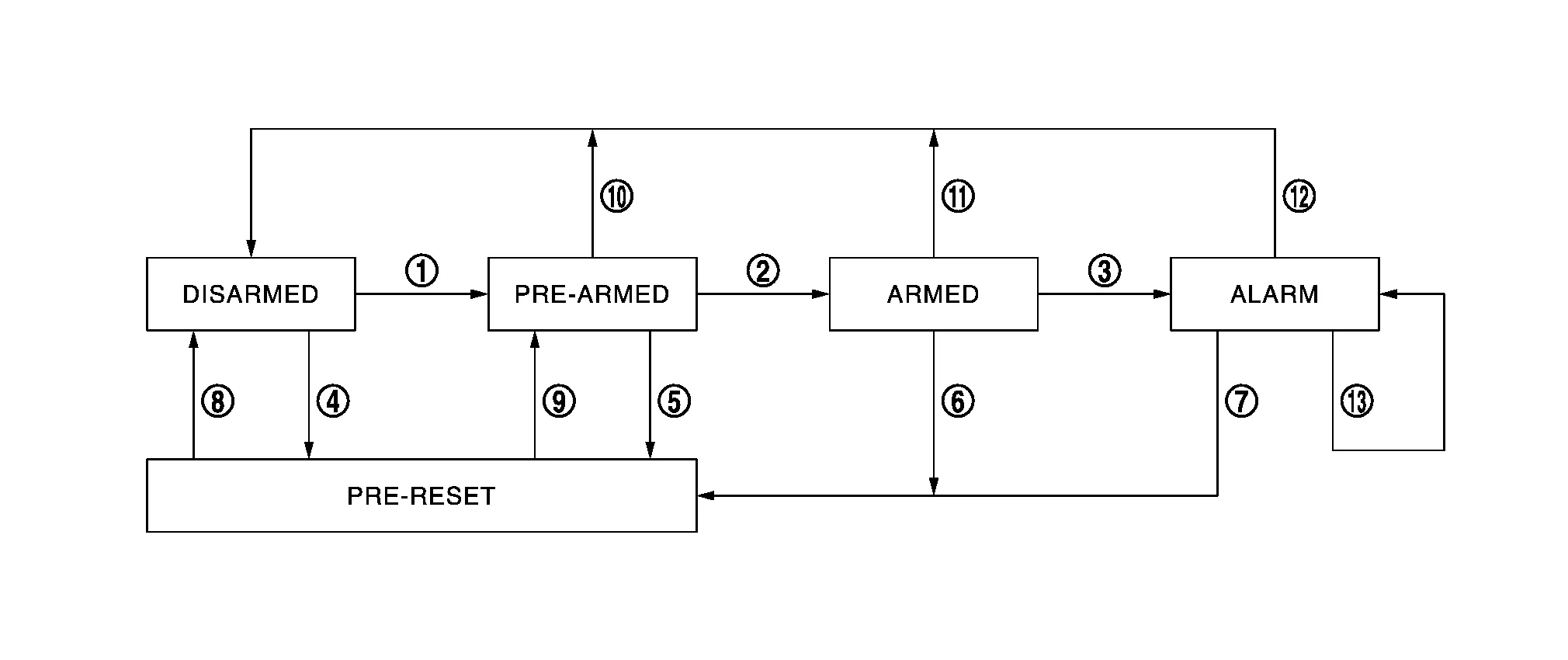

Operation Flow

NOTE:

• To lock/unlock all doors by operating remote control button of Intelligent Key or door request switch, Intelligent Key must be within the detection area of outside key antenna. For details, refer to System Description.

• To open back door by operating back door opener switch, Intelligent Key must be within the detection area of outside key antenna. For details, refer to System Description.

DISARMED Phase

The vehicle security system is not set in the DISARMED phase. The vehicle security system stays in this phase while any door is open because it is assumed that the owner is inside or nearby the Nissan Murano vehicle. Security indicator lamp blinks every 2.4 seconds.

When the vehicle security system is reset, each phase switches to the DISARMED phase directly.

PRE-ARMED Phase

The PRE-ARMED phase is the transient state between the DISARMED phase and the ARMED phase. This phase is maintained for 30 seconds so that the owner can reset the setting due to a mis-operation. This phase switches to the ARMED phase when Nissan Murano vehicle conditions are not changed for 30 seconds. Security indicator lamp illuminates while being in this phase.

To reset the PRE-ARMED phase, refer to the switching condition of No. 10 in the table above.

ARMED Phase

The vehicle security system is set and BCM monitors all necessary inputs. If any door or hood is opened without using Intelligent Key, Nissan Murano vehicle security system switches to the ALARM phase. Security indicator lamp blinks every 2.4 seconds.

To reset the ARMED phase, refer to the switching condition of No. 11 in the table above.

ALARM Phase

BCM transmits “Theft Warning Horn Request” signal and “High Beam Request” signal intermittently to IPDM E/R via CAN communication. In this phase, horns and headlamps are activated intermittently for approximately 50 seconds to warn that the Nissan Murano vehicle is accessed by unauthorized means. ON/OFF timing of horns and headlamps are synchronized. After 50 seconds, the Nissan Murano vehicle security system returns to the ARMED phase. At this time, if BCM still detects unauthorized access to the Nissan Murano vehicle, the system is switched to the ALARM phase again. This RE-ALARM operation is carried out a maximum of 2 times.

To cancel the ALARM operation, refer to the switching condition of No. 12 in the table above.

NOTE:

If a battery terminal is disconnected during the ALARM phase, theft warning alarm stops. But when the battery terminal is reconnected, theft warning alarm is activated again.

PRE-RESET Phase

The PRE-RESET phase is the transient state between each phase and DISARMED phase. If only the condition of hood is not satisfied, the system switches to the PRE-RESET phase. Then, when any condition is changed, the system switches to the DISARMED phase or PRE-ARMED phase.

PANIC ALARM

• The panic alarm function activates horns and headlamps intermittently when the owner presses the PANIC ALARM button of Intelligent Key outside the Nissan Murano vehicle while the power supply position is OFF or LOCK.

• When BCM receives panic alarm signal from Intelligent Key, BCM transmits “Theft Warning Horn Request” signal and “High Beam Request” signal intermittently to IPDM E/R via CAN communication. To prevent the activation due to mis-operation of Intelligent Key by owner, the panic alarm function is activated when BCM receives the signal for 0.4 - 0.6 seconds.

• Panic alarm operation is maintained for 25 seconds.

• Panic alarm operation is cancelled when BCM receives one of the following signals:

  • LOCK button of Intelligent Key: ON

  • UNLOCK button of Intelligent Key: ON

  • PANIC ALARM button of Intelligent Key: Long pressed

  • Any door request switch: ON
