Symptom Table

LOW TIRE PRESSURE WARNING LAMP SYMPTOM CHART

Diagnosis items	Symptom (Ignition switch ON)	Low tire pressure warning lamp	Cause	Action

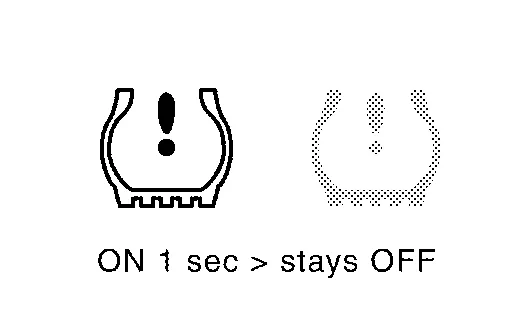

Low tire pressure warning lamp	The low tire pressure warning lamp illuminates for 1 second, then turns OFF.		Wake-up operation for all tire pressure sensors at wheels is completed.	No system malfunctions

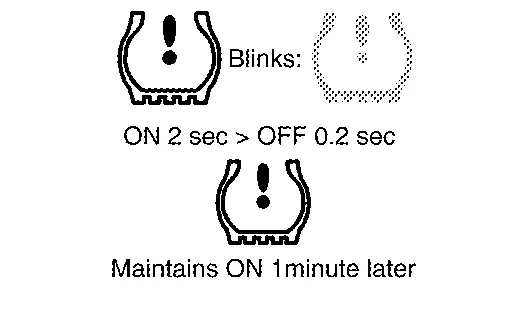

	The low tire pressure warning lamp repeats blinking ON for 2 seconds and OFF for 0.2 seconds. 1 minute later, low tire pressure warning lamp turns ON.		Wake-up operation for all tire pressure sensors at wheels is not completed.	Perform the ID registration for all tire pressure sensors at wheels. Refer to Work Procedure.

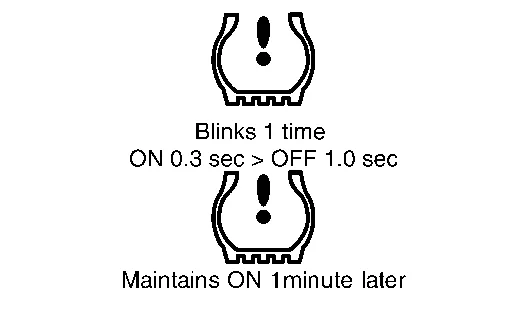

	The low tire pressure warning lamp blinks once. 1 minute later, low tire pressure warning lamp turns ON.		The front left tire pressure sensor is not activated.	Perform the ID registration for the tire pressure sensor at front left wheel. Refer to Work Procedure.

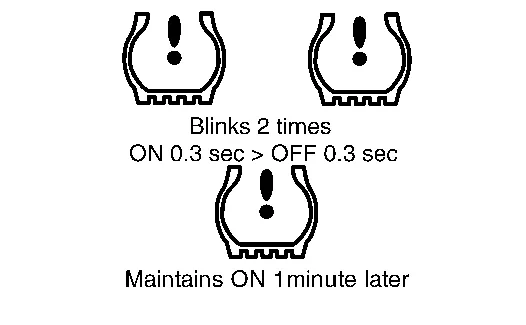

	The low tire pressure warning lamp repeats blinking twice. 1 minute later, low tire pressure warning lamp turns ON.		The front right tire pressure sensor is not activated.	Perform the ID registration for the tire pressure sensor at front right wheel. Refer to Work Procedure.

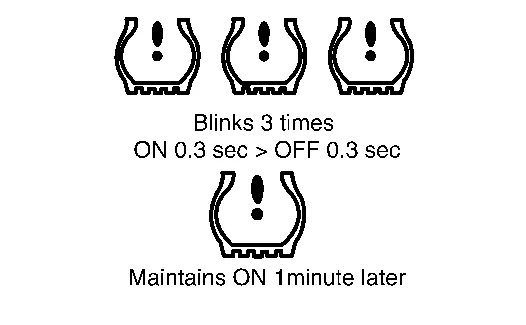

	The low tire pressure warning lamp repeats blinking for 3 times. 1 minute later, low tire pressure warning lamp turns ON.		The rear right tire pressure sensor is not activated.	Perform the ID registration for the tire pressure sensor at rear right wheel. Refer to Work Procedure.

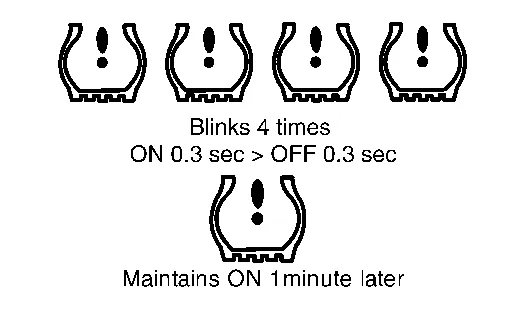

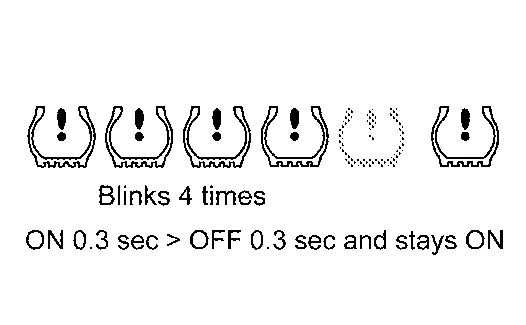

	The low tire pressure warning lamp repeats blinking for 4 times. 1 minute later, low tire pressure warning lamp turns ON.		The rear left tire pressure sensor is not activated.	Perform the ID registration for the tire pressure sensor at rear left wheel. Refer to Work Procedure.

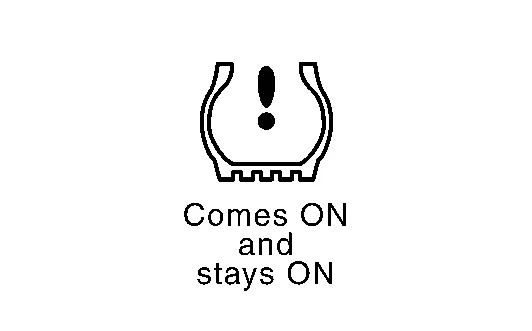

Low tire pressure warning lamp	The low tire pressure warning lamp turns ON and stays illuminated.		Low tire pressure	Check the tire pressure for all wheels and adjust to the specified value. Refer to Work Procedure.

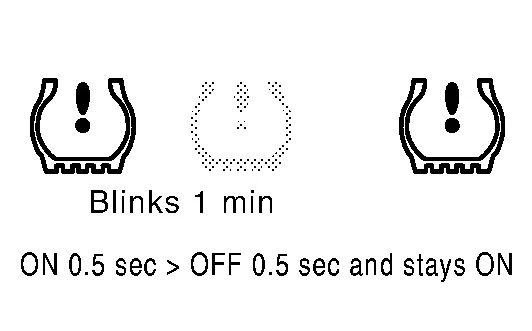

Low tire pressure warning lamp	The low tire pressure warning lamp repeats blinking at 0.5-second intervals for 1 minute, and then stays illuminated.		The combination meter fuse is open or removed (or pulled out).	Check and install the combination meter fuse. If necessary, replace the fuse.
			The BCM harness connector is removed.	Check the connection conditions of the BCM harness connector, and repair if necessary.
			Tire Pressure Monitoring System (TPMS) malfunction.	Select “Self Diagnostic Result” mode of “METER M&A”. Refer to Diagnosis Description. If necessary, perform tire pressure sensor ID registration. Refer to Work Procedure.
	The low tire pressure warning lamp blinks once.		Wake-up operation for all tire pressure sensors at wheels is not completed.	Perform the ID registration for all tire pressure sensors at wheels. Refer to Work Procedure.
Hazard warning lamp	The hazard warning lamp does not blink twice when the tire pressure sensor is activated. Or the buzzer does not sound.	—	The tire pressure sensor activation tool does not activate.	Replace the battery in the tire pressure sensor activation tool.
			Ignition switch OFF when the tire pressure sensor wake-up operation is performed.	Ignition switch ON when performing the tire pressure sensor wake-up operation.
			The tire pressure sensor activation tool is not used in the correct position.	Operate the tire pressure sensor activation tool in the correct position when performing the wake-up operation.
			The tire pressure sensor is already waked up.	No procedure.

NOTE:

If tire pressure sensor wake-up operation is not completed for two or more tire pressure sensors, the applicable low tire pressure warning lamp blinking patterns are displayed continuously.

(Example: Blinks once/OFF/blinks 3 times = Wake-up operation is not completed at the front left wheel and rear right wheel tire pressure sensors.)
