Nissan Murano: Driveline :: Rear Final Drive: R145 / System Description. Structure and Operation
 |

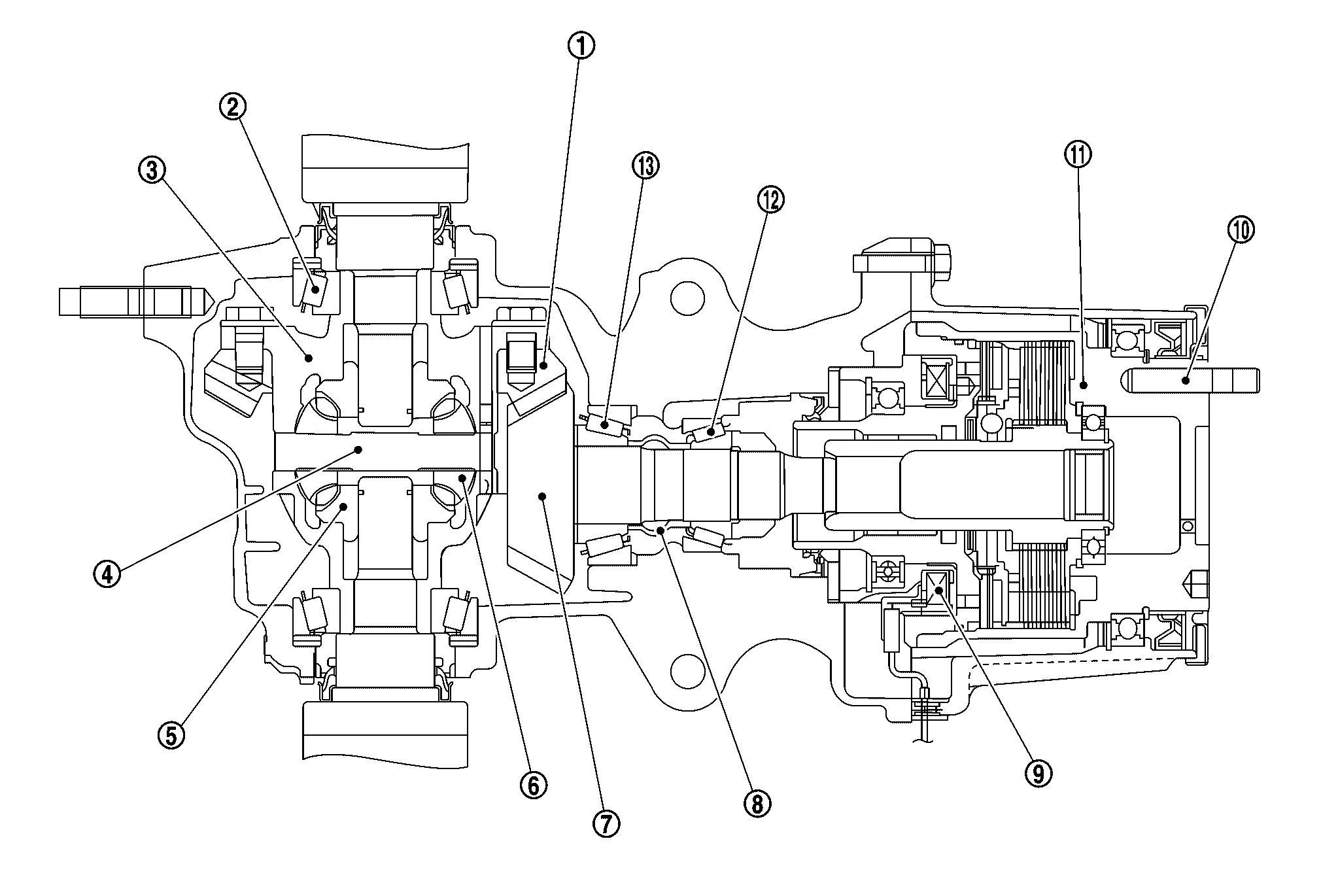

Drive gear |  |
Side bearing |  |
Differential case |
 |
Pinion mate shaft |  |
Side gear |  |
Pinion mate gear |
 |
Drive pinion |  |
Collapsible spacer |  |
AWD solenoid |
 |
Stud bolt |  |
Electric controlled coupling |  |
Pinion front bearing |
 |
Pinion rear bearing |
The electric controlled coupling operates as the AWD system. For the operation, refer to Operation Description.
Preparation. Preparation
Special Service Tools
The actual shape of the tools may differ from those illustrated here.
Tool number
(TechMate No.)
Tool name Description
KV40100610
(J-26089)
Drift
Removing and Installing rear cover (2 pieces are used...
Other information:
Nissan Murano (Z52) 2015-2024 Service Manual: Hydraulic Pump Electric Power Steering Warning Lamp Does Not Turn Off
Diagnosis Procedure Hydraulic pump electric power steering warning lamp does not turn OFF several seconds after engine is started.SELF DIAGNOSTIC RESULT CONSULT Select "Self Diagnostic Result" mode of "EPS/DAST 3". Is any DTC detected? YES>> Check the DTC...
Nissan Murano (Z52) 2015-2024 Service Manual: System. Awd System
System Description SYSTEM DIAGRAMINPUT SIGNAL AND OUTPUT SIGNALIt transmits/receives each signal from the following AWD control unit via CAN communication line: Component parts Function ABS actuator and electric unit (control unit) Transmits the following signals via CAN communication to AWD control unit: Nissan Murano Vehicle speed signal Stop lamp switch signal (brake signal) Yaw rate sensor signal Side G sensor signal Decel G sensor signal ECM Transmits the following signals via CAN communication to AWD control unit: Accelerator pedal position signal Engine speed signal TCM Transmits the following signals via CAN communication to AWD control unit: Input shaft revolutional signal CVT ratio signal Combination meter Transmits conditions of parking brake switch signal via CAN communication to AWD control unit...
