Nissan Murano: Driveline :: Rear Final Drive: R145 / Preparation. Preparation

Nissan Murano (Z52) 2015-2024 Service Manual / Transmission & Driveline / Driveline :: Rear Final Drive: R145 / Preparation. Preparation

Special Service Tools

The actual shape of the tools may differ from those illustrated here.
Tool number (TechMate No.) Tool name		Description

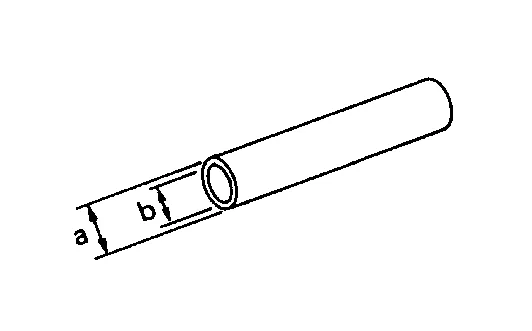

KV40100610 (J-26089) Drift		Removing and Installing rear cover (2 pieces are used.) Removing and Installing differential assembly (2 pieces are used.) Installing pinion front bearing inner race a: 63 mm (2.48 in) dia. b: 54.3 mm (2.138 in) dia.

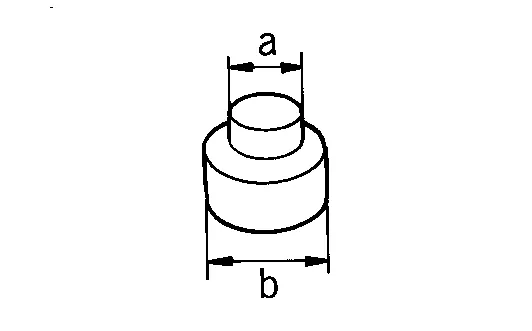

ST33052000 ( — ) Adaptor		Removing side bearing inner race a: 22 mm (0.87 in) dia. b: 28 mm (1.10 in) dia.

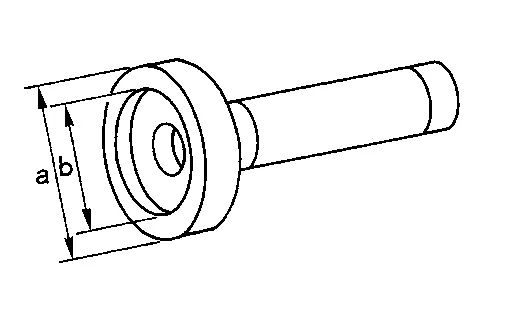

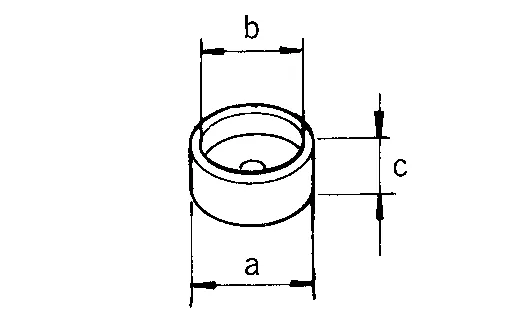

KV40105020 ( — ) Drift		Installing side bearing inner race a: 39.7 mm (1.563 in) dia. b: 35 mm (1.38 in) dia. c: 15 mm (0.59 in)

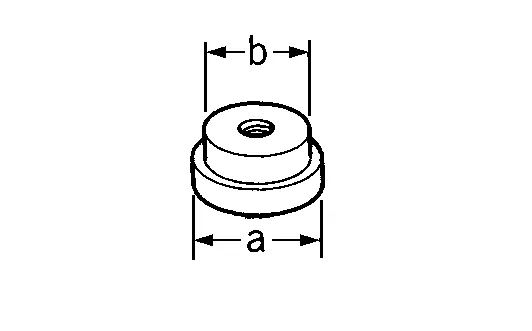

KV38100200 (J-26233) Drift		Installing side oil seal a: 65 mm (2.56 in) dia. b: 49 mm (1.93 in) dia.

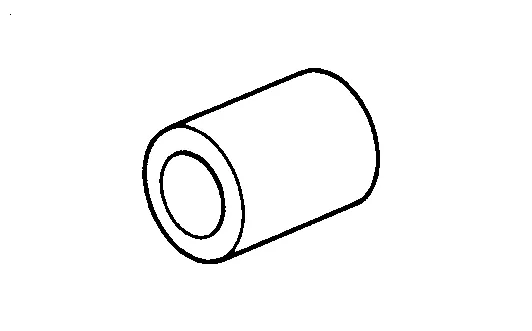

KV38109500 ( — ) Drive pinion socket		Measuring pinion bearing preload and total preload Removing and installing drive pinion lock nut
ST3127S000 (J-25765-A) Preload gauge		Measuring pinion bearing preload and total preload

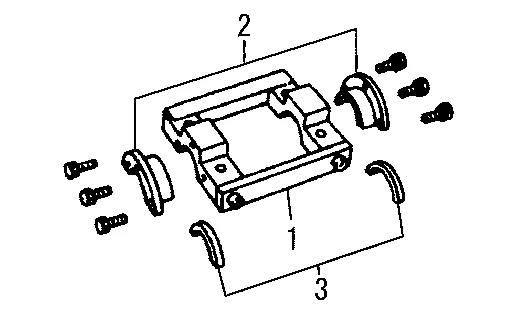

KV381086S1 ( — ) Dummy cover set 1. KV38108610 ( — ) Dummy cover 2. KV38108621 ( — ) Dummy cover spacer 3. KV38108630 ( — ) Dummy cover shim		Checking backlash Checking drive gear runout Checking tooth contact

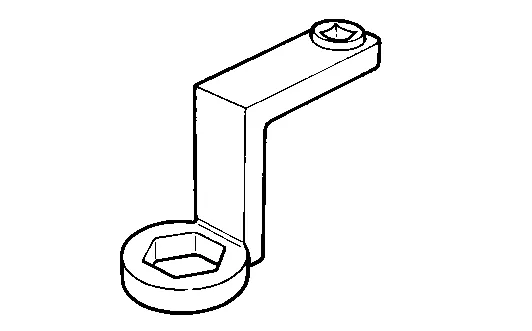

KV38109400 ( — ) Pinion nut wrench		Removing and installing drive pinion lock nut
ST33200000 (J-26082) Drift		Installing pinion rear bearing outer race a: 60 mm (2.36 in) dia. b: 44.5 mm (1.752 in) dia.

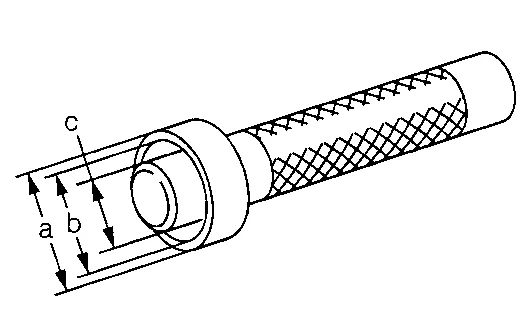

ST33230000 (J-25805-01) Drift		Installing pinion front bearing outer race a: 51 mm (2.01 in) dia. b: 41 mm (1.61 in) dia. c: 28.5 mm (1.122 in) dia.
ST23860000 ( — ) Drift		Installing pinion rear bearing inner race Installing pinion front bearing inner race a: 38 mm (1.50 in) dia. b: 33 mm (1.30 in) dia.

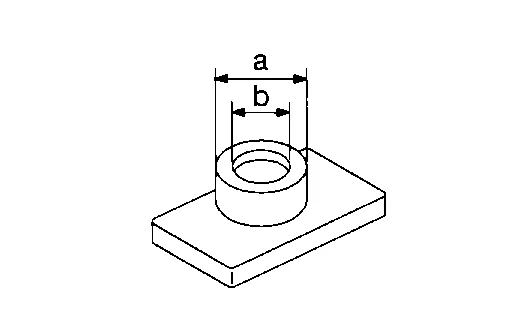

ST38220000 ( — ) Press stand		Installing pinion front bearing inner race a: 75 mm (2.95 in) dia. b: 63 mm (2.48 in) dia.
ST35271000 (J-26091) Drift		Installing drive pinion oil seal a: 72 mm (2.83 in) dia. b: 63 mm (2.48 in) dia.

Commercial Service Tools

Tool name		Description

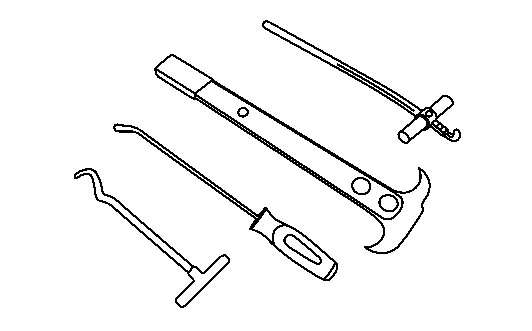

Oil seal remover		Removing side oil seal Removing drive pinion oil seal
Bearing separator		Removing side bearing inner race Removing pinion rear bearing inner race

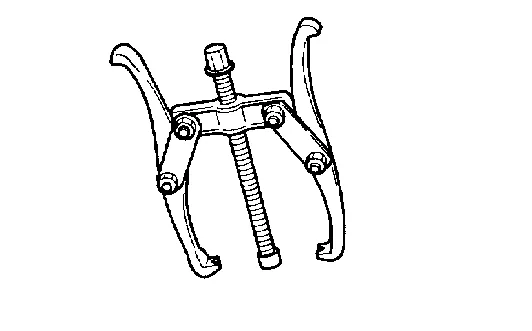

Puller		Removing side bearing inner race Removing pinion rear bearing inner race

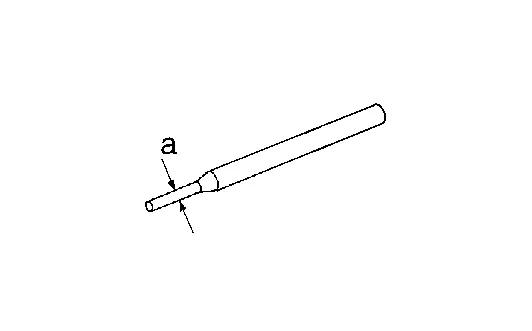

Pin punch		Removing and installing lock pin a: 4.5 mm (0.177 in) dia.
Power tool		Loosening nuts, screws and bolts

Lubricant or/and Sealant

Item	Use
Red lead or equivalent	Checking tooth contact

Precaution. Precautions

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT PRE-TENSIONER" The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain types of collisions...

System Description. Structure and Operation

Sectional View Drive gear Side bearing Differential case Pinion mate shaft Side gear Pinion mate gear Drive pinion Collapsible spacer AWD solenoid Stud bolt Electric controlled coupling Pinion front bearing Pinion rear bearing Electric Controlled Coupling The electric controlled coupling operates as the AWD system...
