System Description

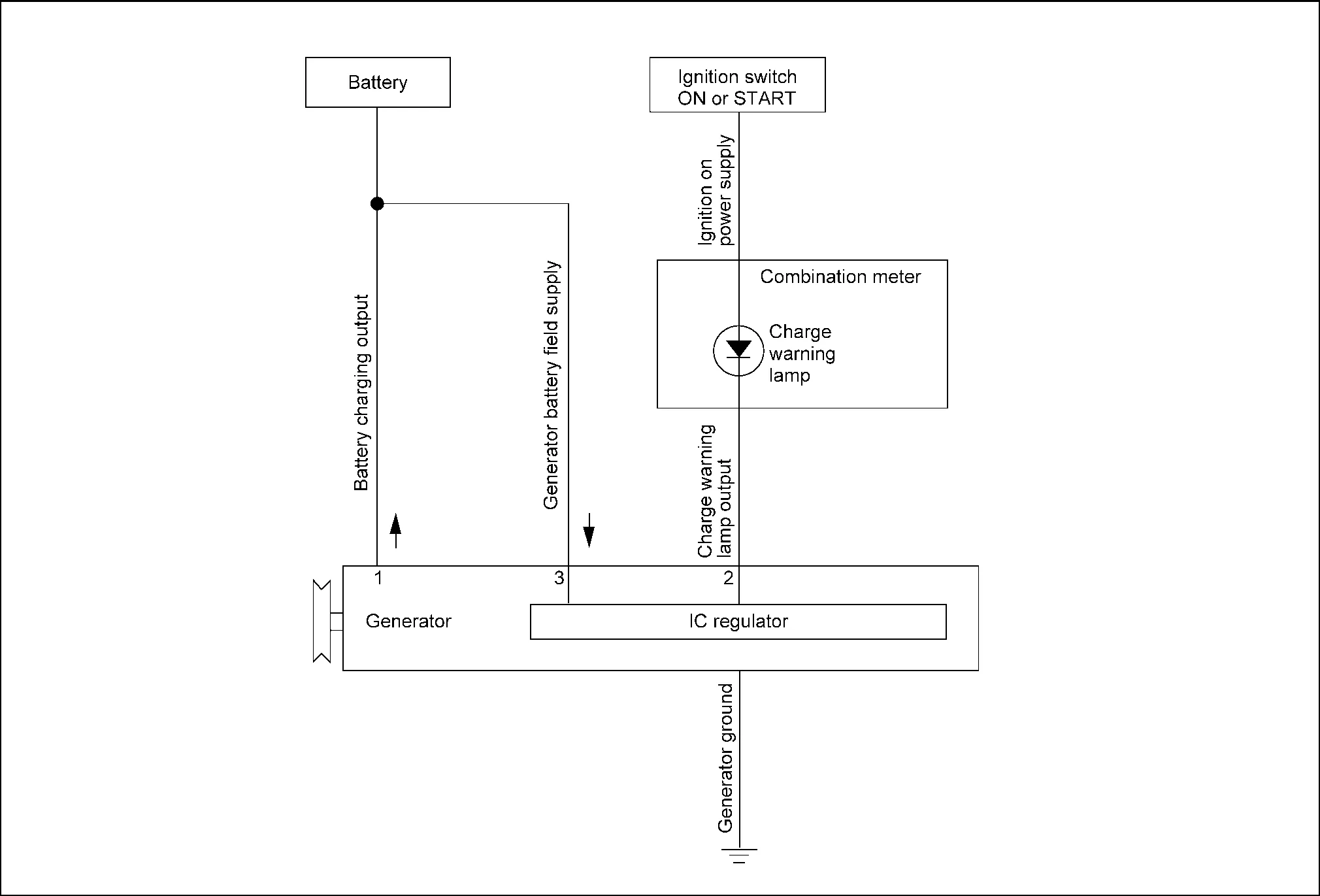

SYSTEM DIAGRAM

Signal transmission function list

Component	Signal
Combination meter	Charge warning lamp signal

System Description

The generator provides DC voltage to operate the vehicle's electrical system and to keep the battery charged. The voltage output is controlled by the IC regulator.

WARNING/INDICATOR/CHIME LIST

Item	Design	Reference
Charge warning lamp		For layout, refer to Design.

Component Parts. Charging System

Component Parts Location A. Engine room left side B. Combination meter No. Component Description 1. Generator (IC regulator) Refer to Generator...

Charging System :: Basic Inspection. Diagnosis and Repair Workflow

Work Flow (With 165-DSS-5000P) CHARGING SYSTEM DIAGNOSIS WITH 165-DSS-5000PTo test the charging system, use the following special service tool: 165-DSS-5000P battery and electrical diagnostic analyzer NOTE: Refer to the applicable instruction manual for proper charging system diagnosis procedures...
