Inspection

HOLE COVER SEAL, HOLE COVER AND LOWER SHAFT

Check each part of hole cover seal, hole cover and steering column and lower shaft for damage or other malfunctions. Replace if necessary.

STEERING COLUMN

Check each part of steering column for damage or other malfunctions. Replace entire steering column if any parts are damaged.

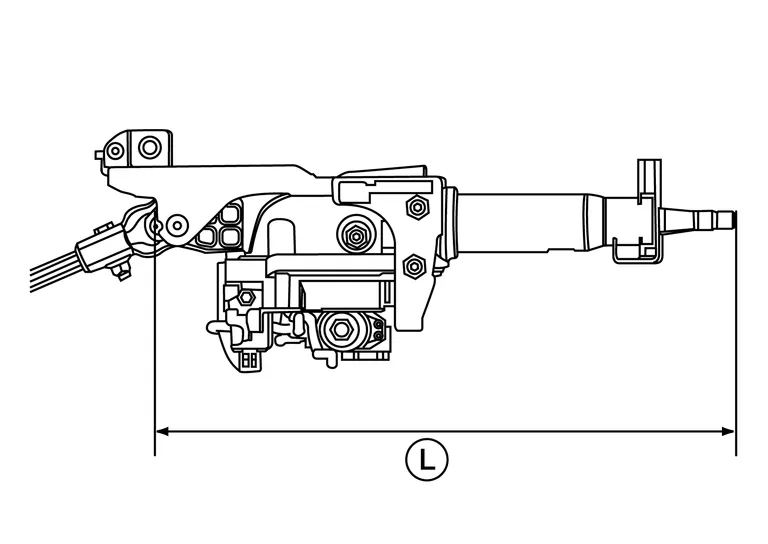

Measure the length (L) as shown if Nissan Murano vehicle has been involved in a minor collision. Replace steering column if outside the specifications.

Steering column length (L) : Refer to Steering Column.
Measure steering column rotating torque using suitable tool. Replace steering column if outside the standard.

Rotating torque : Refer to Steering Column.

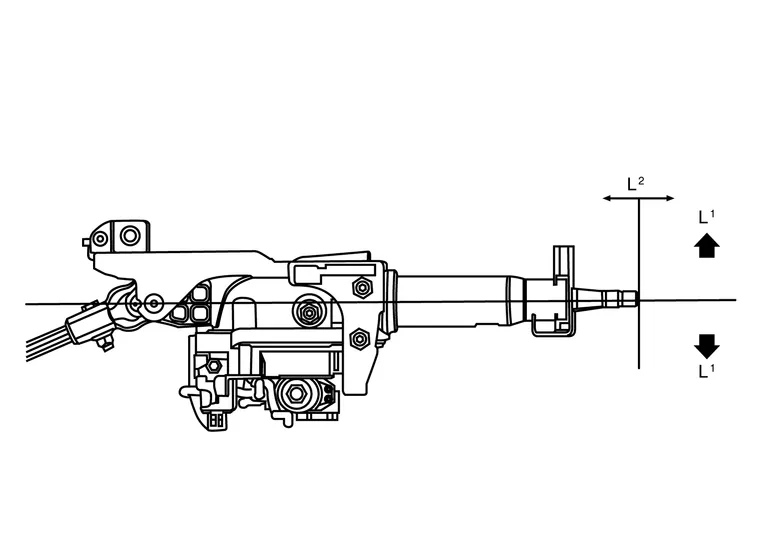

Check tilt and telescopic mechanism operating range (L¹), (L²) as shown.

Tilt operating range (L¹) : Refer to Steering Column.

Telescopic operating range (L²) : Refer to Steering Column.
