Special Service Tool

The actual shape of the tools may differ from those illustrated here.

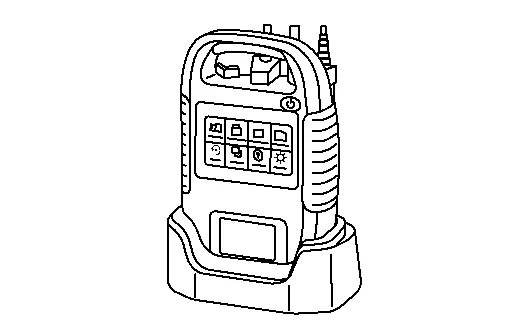

Tool number (TechMate No.) Tool name		Description
165-GR8-1200KIT (—) Midtronics Battery Charger and Tester		Tests batteries, starting and charging systems and charges batteries. For operating instructions, refer to diagnostic station instruction manual.
165–DSS-5000P (—) Midtronics Hand-Held Battery Tester		Tests batteries, starting and charging systems. For operating instructions, refer to diagnostic analyzer instruction manual.

Tool number

(TechMate No.)

Tool name

Description

165-GR8-1200KIT

(—)

Midtronics Battery Charger and Tester

Tests batteries, starting and charging systems and charges batteries.

For operating instructions, refer to diagnostic station instruction manual.

165–DSS-5000P

(—)

Midtronics Hand-Held Battery Tester

Tests batteries, starting and charging systems.

For operating instructions, refer to diagnostic analyzer instruction manual.

Commercial Service Tools

Tool name		Description
Power tool		Loosening nuts, screws and bolts

Starting System :: Precaution. Precautions

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT PRE-TENSIONER" The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain types of collisions...
