Nissan Murano: Technical and consumer information / Specifications

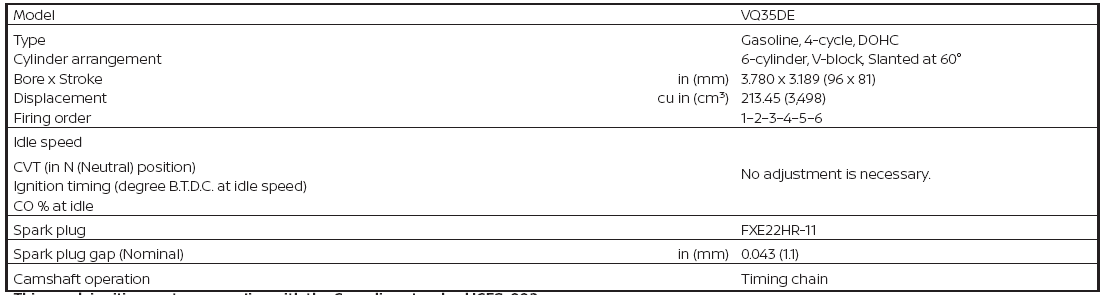

Engine

This spark ignition system complies with the Canadian
standard ICES-002.

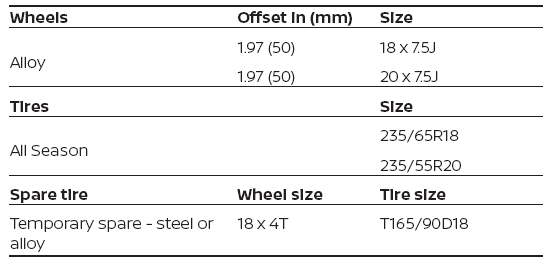

Wheels and tires

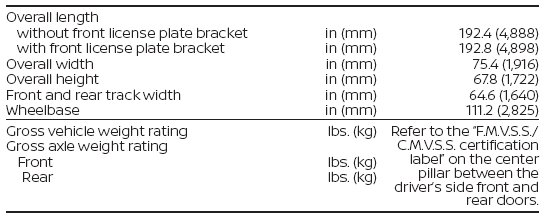

Dimensions and weights

The air conditioner system in your
NISSANvehiclemustbe charged with the
refrigerant HFC-134a (R-134a) and
NISSAN A/C System Oil Type ND-OIL8 or
the exact equivalents...
When planning to drive your NISSAN vehicle
in another country, you should first
find out if the fuel available is suitable for
your vehicle's engine...
Other information:
Exploded View
1.
Timing chain tensioner (primary)
2.
Valve timing control cover gasket (bank 1)
3.
Valve timing control cover (bank 1)
4.
Water pump cover
5.
O-ring
6.
O-ring (Identify with white mark)
7.
Water pump
A.
Apply engine oil
B...
Exploded View
1.
Lock washer
2.
Manual lever
3.
Transmission range switch
4.
CVT
5.
Manual shaft
Removal and Installation
REMOVALRemove air cleaner and air duct. Refer to Removal and Installation.
Remove control cable nut (A)...
