Nissan Murano: Engine Mechanical :: Periodic Maintenance / Spark Plug
| 1. | Ignition coil | 2. | Spark plug | 3. | Rocker cover (RH) |
| 4. | Rocker cover (LH) |  |
Front |
REMOVAL
Remove the ignition coil. Refer to Removal and Installation (bank 2) and Removal and Installation (bank 1).

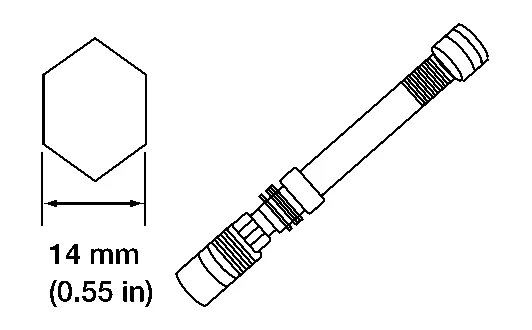

Remove the spark plug with Tool.
| Tool number | : — (J-48891) |
INSPECTION AFTER REMOVAL
Use the standard type spark plug for normal condition.
| Spark plug | : Refer to Spark Plug. |
CAUTION:
-
Do not drop or shock spark plug. Discard spark plug if dropped.
-

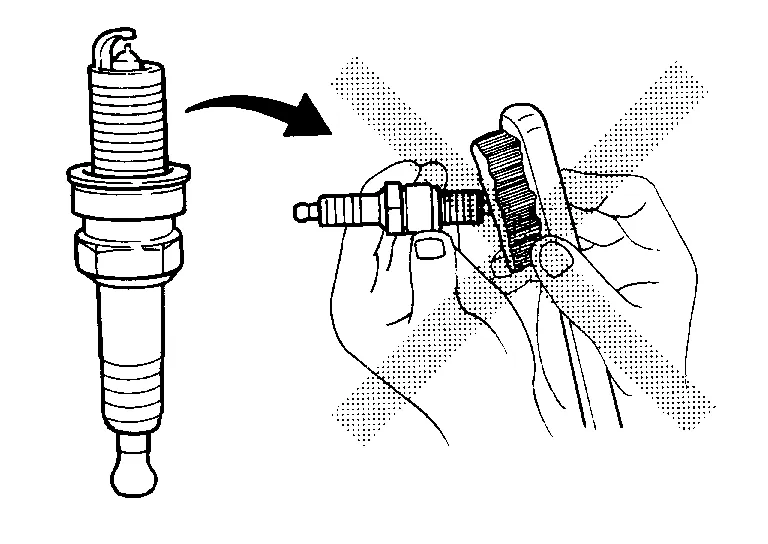

Do not use a wire brush for cleaning.
-
If plug is covered with carbon, a spark plug cleaner may be used.
| Cleaner air pressure | : less than 588 kPa (6 kg/cm2, 85 psi) |
| Cleaning time | : less than 20 seconds |
-

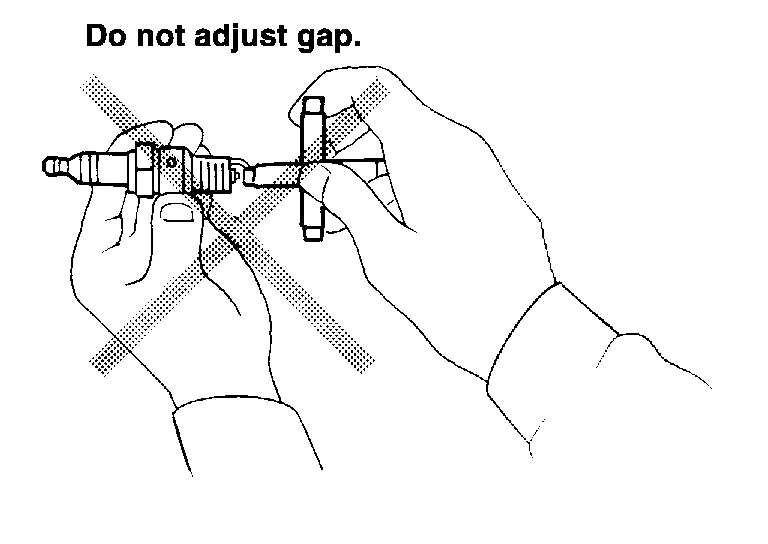

Spark plug gap adjustment is not required between replacement intervals.
-
Measure spark plug gap. When it exceeds the limit, replace spark plug even if it is within the specified replacement mileage. Refer to Spark Plug.
INSTALLATION
Installation is in the reverse order of removal.
| Make | DENSO |
| Standard type* | FXE22HR11 |
| Gap (nominal) | 1.1 mm (0.043 in) |
*: Always check with the Parts Department for the latest parts information.
