Exploded View

1.	Rear door	2.	Rear door glass rubber run	3.	Rear door glass rear run
4.	Rear door glass corner finisher	5.	Rear door glass	6.	Rear door glass power window motor
7.	Rear door glass regulator

Removal and Installation

Removal

Remove rear door finisher. Refer to Removal and Installation.

Remove rear door vapor barrier (1).

CAUTION:

Use care not to damage or tear vapor barrier during removal.

Temporarily reconnect rear power window switch.

Operate rear power window switch to raise/lower rear door glass until rear door regulator to glass bolts (A) can be seen and remove.

Raise rear door glass and hold in place with suitable tool (A).

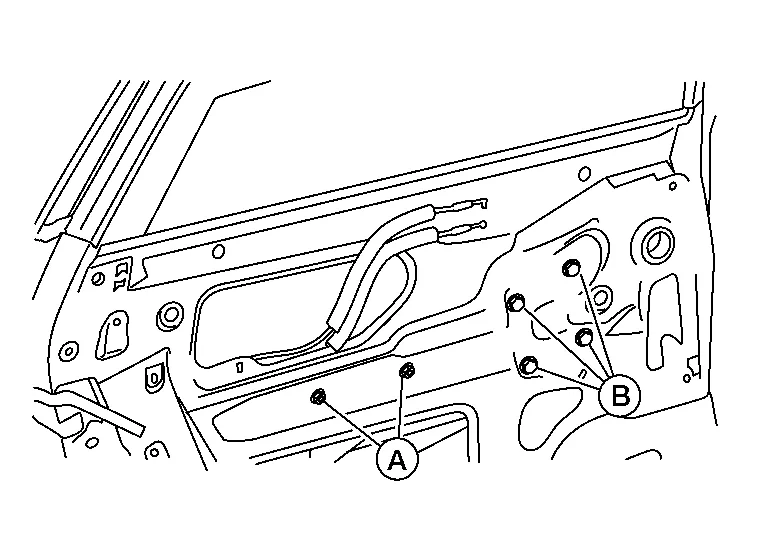

Remove bolts (B) and nuts (A) from rear door glass regulator.

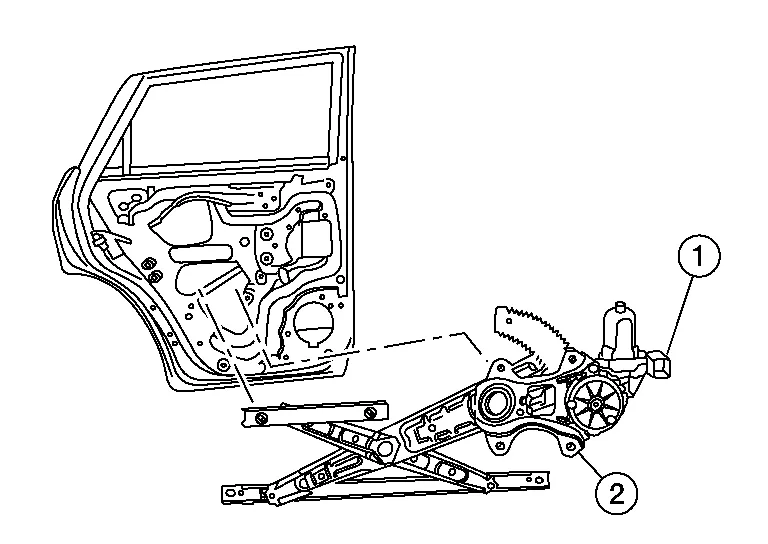

Disconnect harness connector from rear door power window motor (1).

Remove rear door regulator (2).

INSPECTION AFTER REMOVAL

Check the rear door glass regulator for the following items:

Gear wear
Rear door glass regulator deformation
Spring damage
Grease condition for each sliding part

If a malfunction is detected, replace or grease it.

INSTALLATION

Installation is in the reverse order of removal.
