Special Service Tools

The actual shape of the tools may differ from those illustrated here.
Tool number (TechMate No.) Tool name		Description
KV10111100 (J-37228) Seal cutter		Removing chain tensioner cover and water pump cover

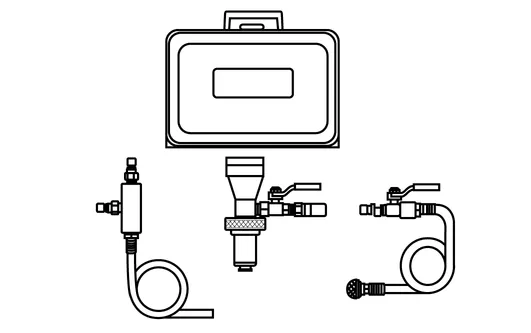

KV991J0070 (J-45695-A) Coolant refill tool		Refilling engine cooling system
KV991J0010 (J-23688) Engine coolant refractometer		Checking concentration of ethylene glycol in engine coolant

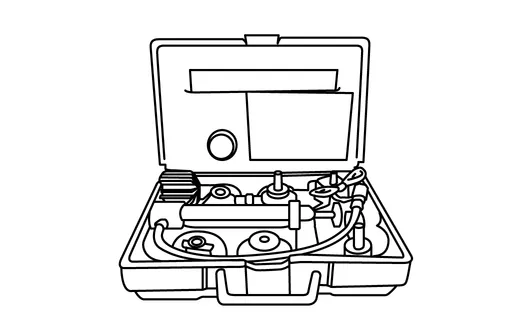

— (J-51771) Cooling system pressure test kit — (J-51771-1) Main body — (J-51771-4) Small adapter — (J-51771-5) Pump with quick release — (J-51771-9) Radiator cap assembly with quick coupler		Checking cooling system and radiator cap

Commercial Service Tools

(TechMate No.) Tool name		Description
( — ) Power tool		Loosening nuts, screws and bolts

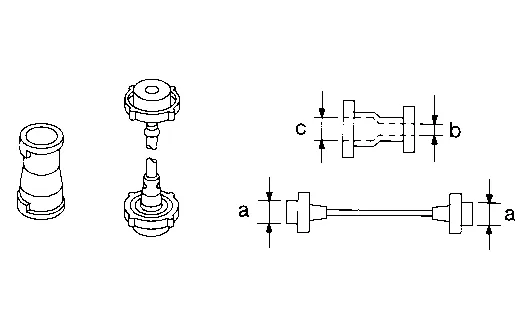

(J-33984-A) Radiator pressure adapter		Adapting cooling system pressure tester to radiator cap and reservoir tank cap a: 28 (1.10) dia. b: 31.4 (1.236) dia. c: 41.3 (1.626) dia. Unit: mm (in)

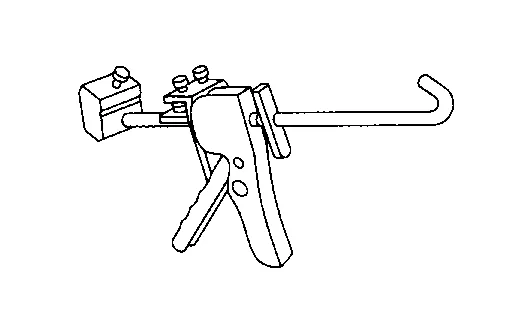

( — ) Tube presser		Pressing the tube of liquid gasket

(TechMate No.)

Tool name

Description

( — )

Power tool

Loosening nuts, screws and bolts

(J-33984-A)

Radiator pressure adapter

Adapting cooling system pressure tester to radiator cap and reservoir tank cap

a: 28 (1.10) dia.

b: 31.4 (1.236) dia.

c: 41.3 (1.626) dia.

Unit: mm (in)

( — )

Tube presser

Pressing the tube of liquid gasket
